General

This item has been sold

• Name: Le Grand Bleu
• Material: GRP
• Flag: Dutch
• Length: 14.99 M
• Beam: 4.9 M
• Depth: 2.35 M

Specifications

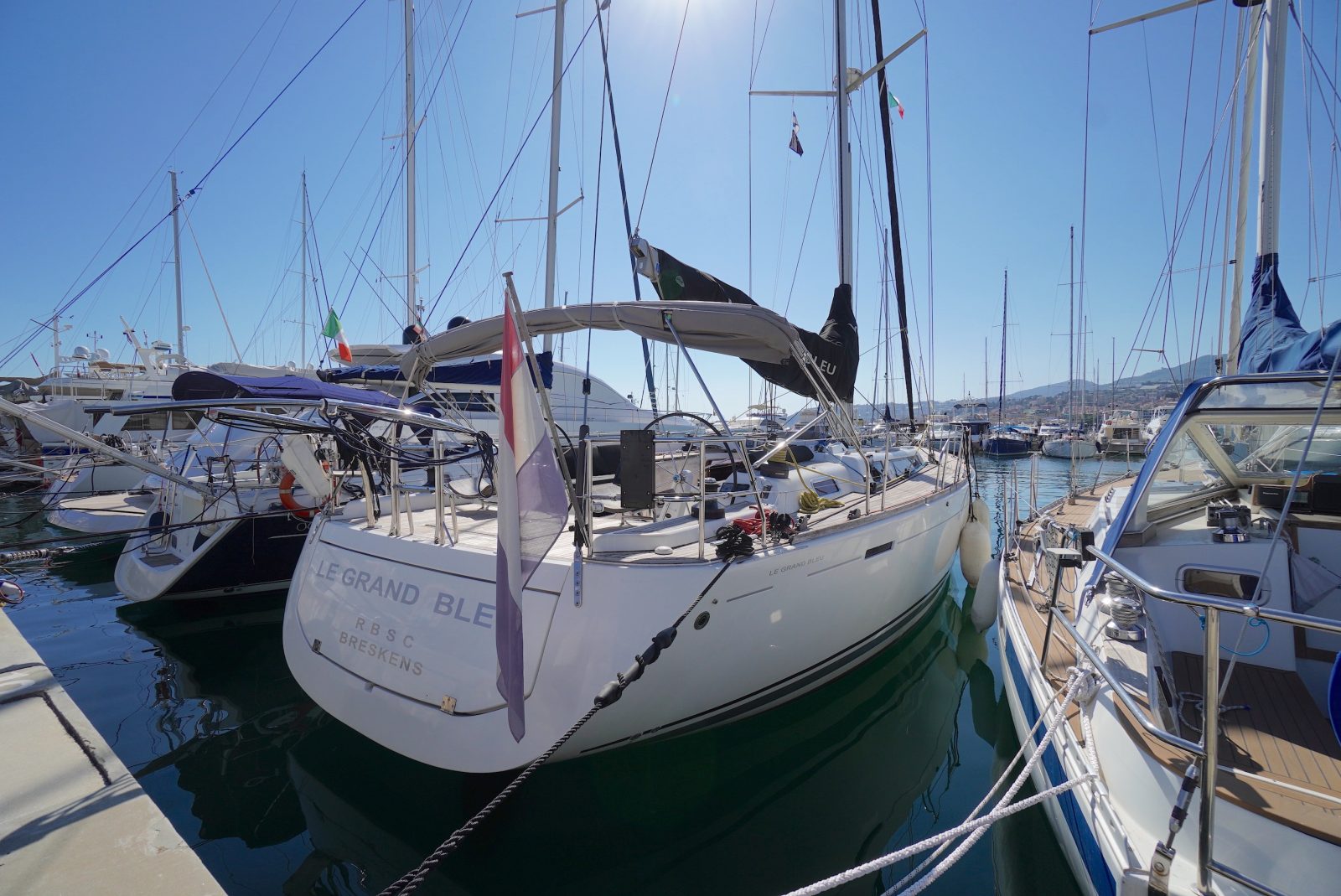

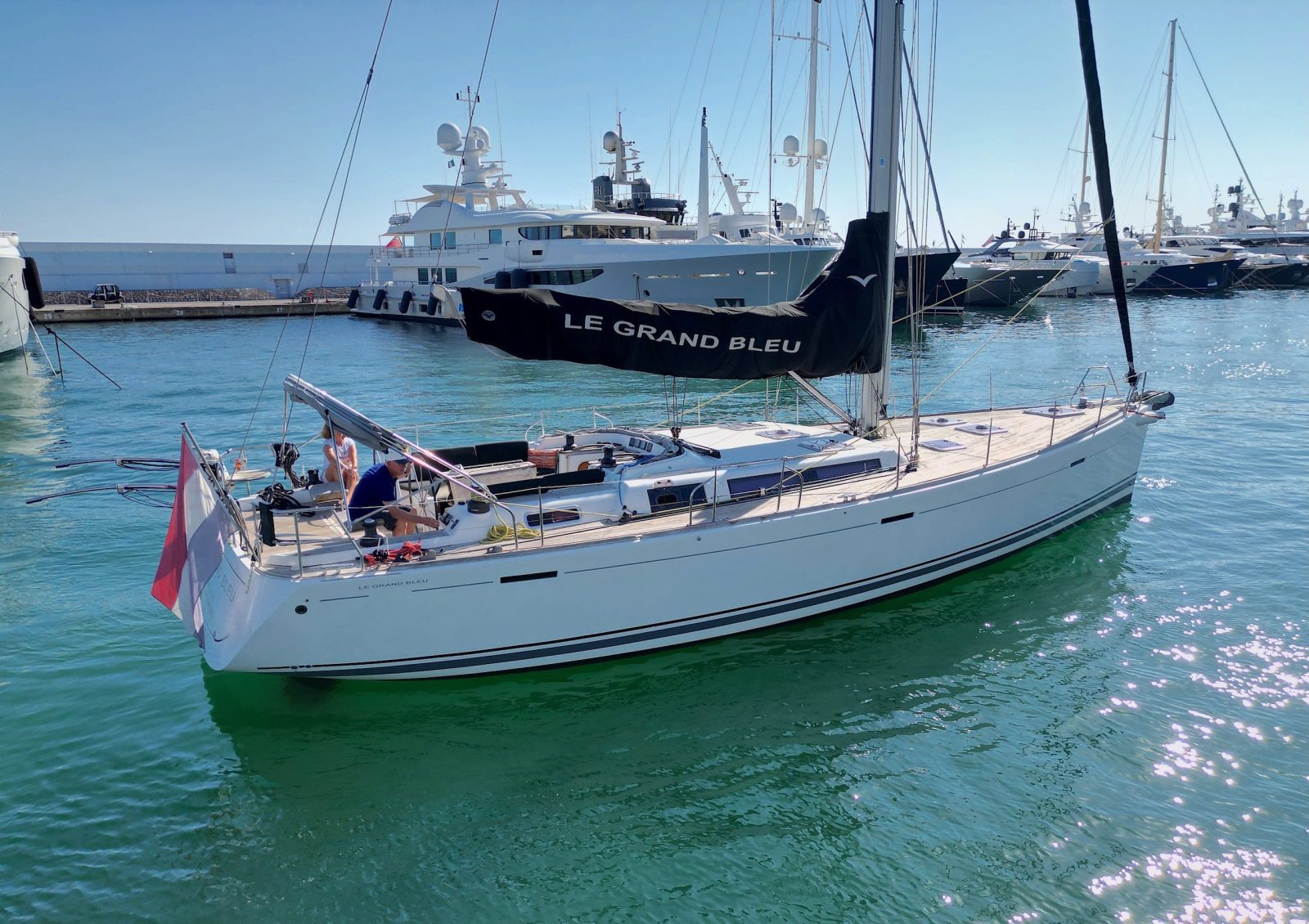

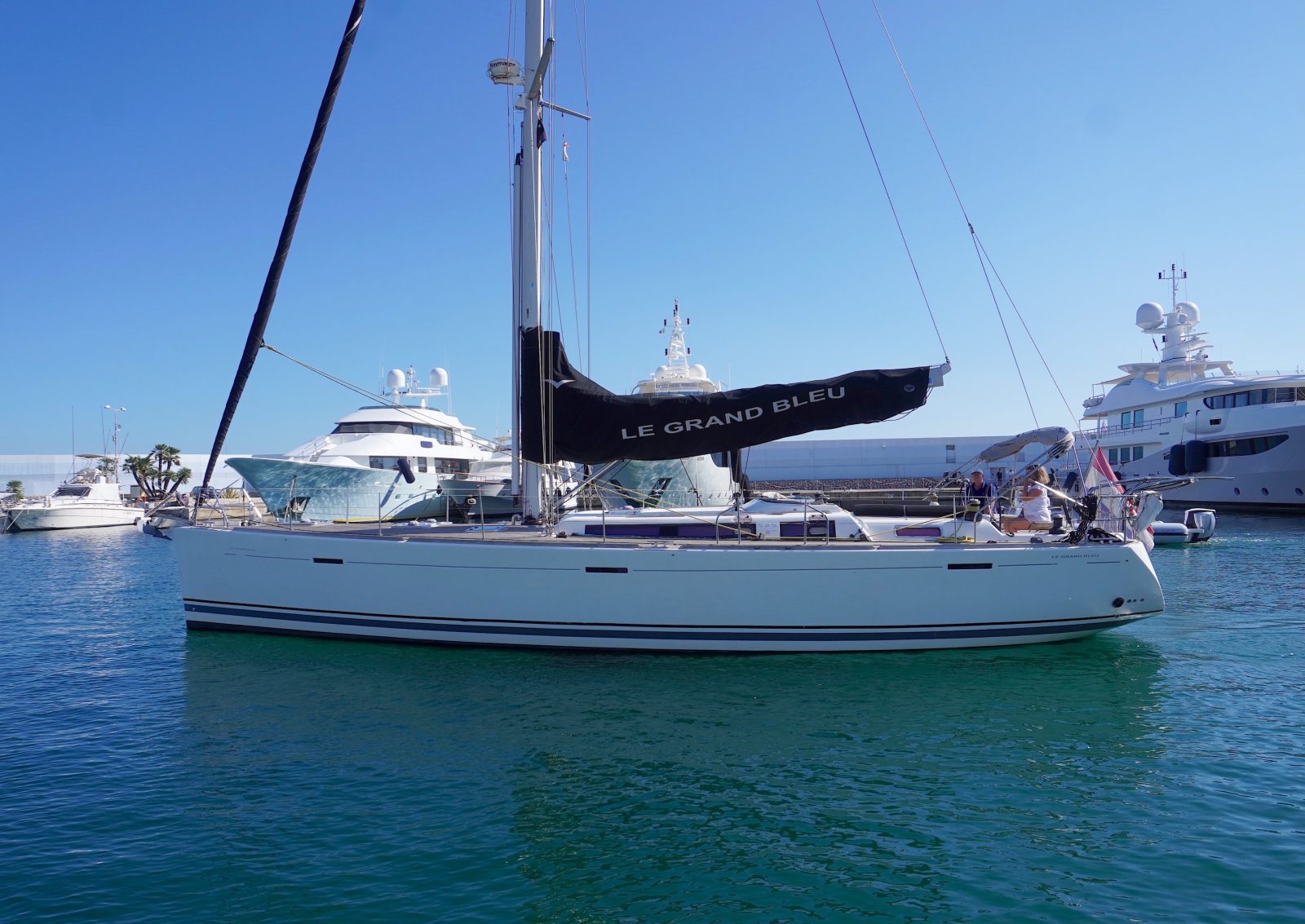

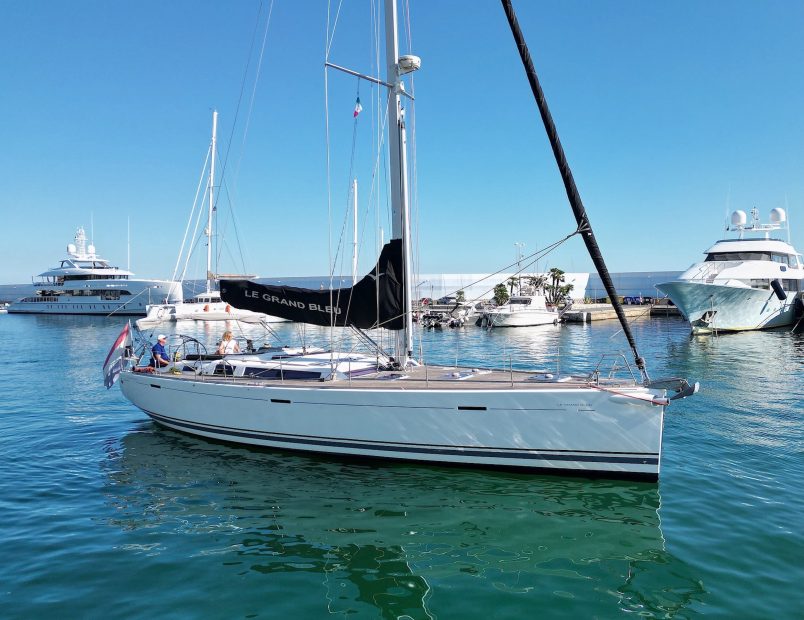

Dufour 525 Grand Large “Le Grand Bleu”

INTRODUCTION

Le Grand Bleu is new to the market and from first private owner since new.

This popular model of Dufour offers comfortable live-aboard and ideally suited for family cruising and relaxation.

She comes with the classic layout, three double cabins, two head compartments, and bow crew cabin.

Fitted with the larger Volvo Penta 110hp diesel, retractable bow-thruster, generator, electric winches and electric operated bathing transom.

Dutch flag, EU-VAT paid and located in San Remo, Italy.

GENERAL INFORMATION

• Brand/type ………………………. Dufour 525 Grand Large
• Name ……………………………… Le Grand Bleu
• Naval architect ………………….. Umberto Felci & Patrick Roséo
• Yard ……………………………….. Chantier Dufour, France
• Year ……………………………….. 10/2007, first launch Spring 2008
• HIN-number ……………………… FR-DUFE0398J708
• Construction ……………………… GRP
• Dimensions ……………………….. L.o.a. 14.99m x B. 4.90m x D. 2.35m
• Displacement …………………….. Approx 16.200kg (empty)
• Ballast ……………………………… 4.500kg
• Water ……………………………… 750L
• Diesel ……………………………… 500L
• Location …………………………… San Remo, Italy
• Price ……………………………….. sold
• Flag ………………………………… Dutch

HULL & DECK

• Hull and deck constructed in polyester with sandwich core
• Hull and topsides finished in white NPG gelcoat
• Deep draft 2.35m ballast keel in mixed cast-iron/lead
• Fiberglass rudder blade with high-density epoxy foam core and solid stainless-steel rudder stock.
• Integrated telescopic aluminum bowsprit

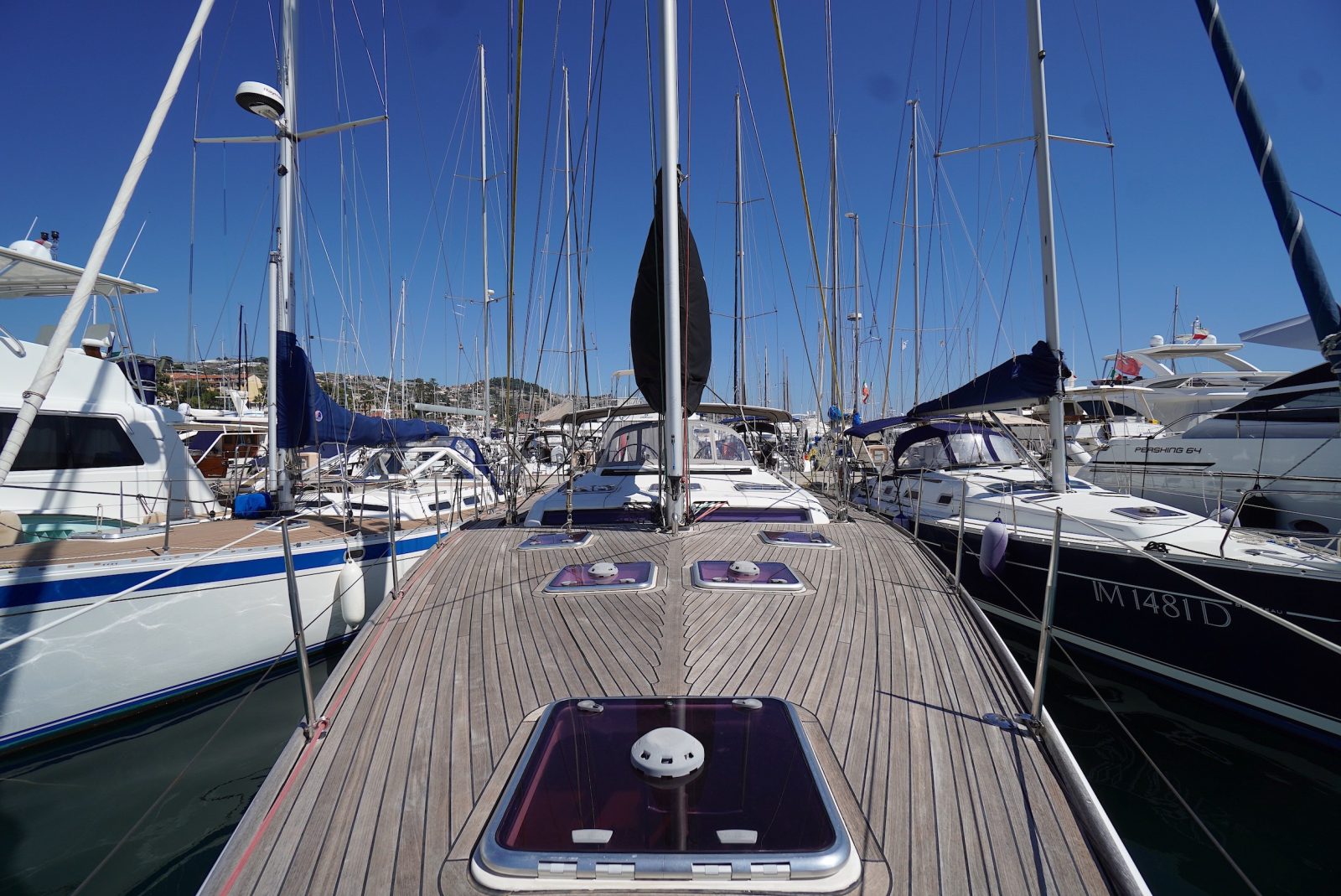

• Iroko teak with black caulking on side decks
• Opening side guard rails at both sides
• 6 x Polished stainless-steel mooring cleats
• Anchor locker
• Quick 1500W electric anchor windlass with remote control
• Anchor 25kg with 60m/14mm anchor chain and 30m nylon rope
• HARKEN genoa sheet tracks and mainsail track

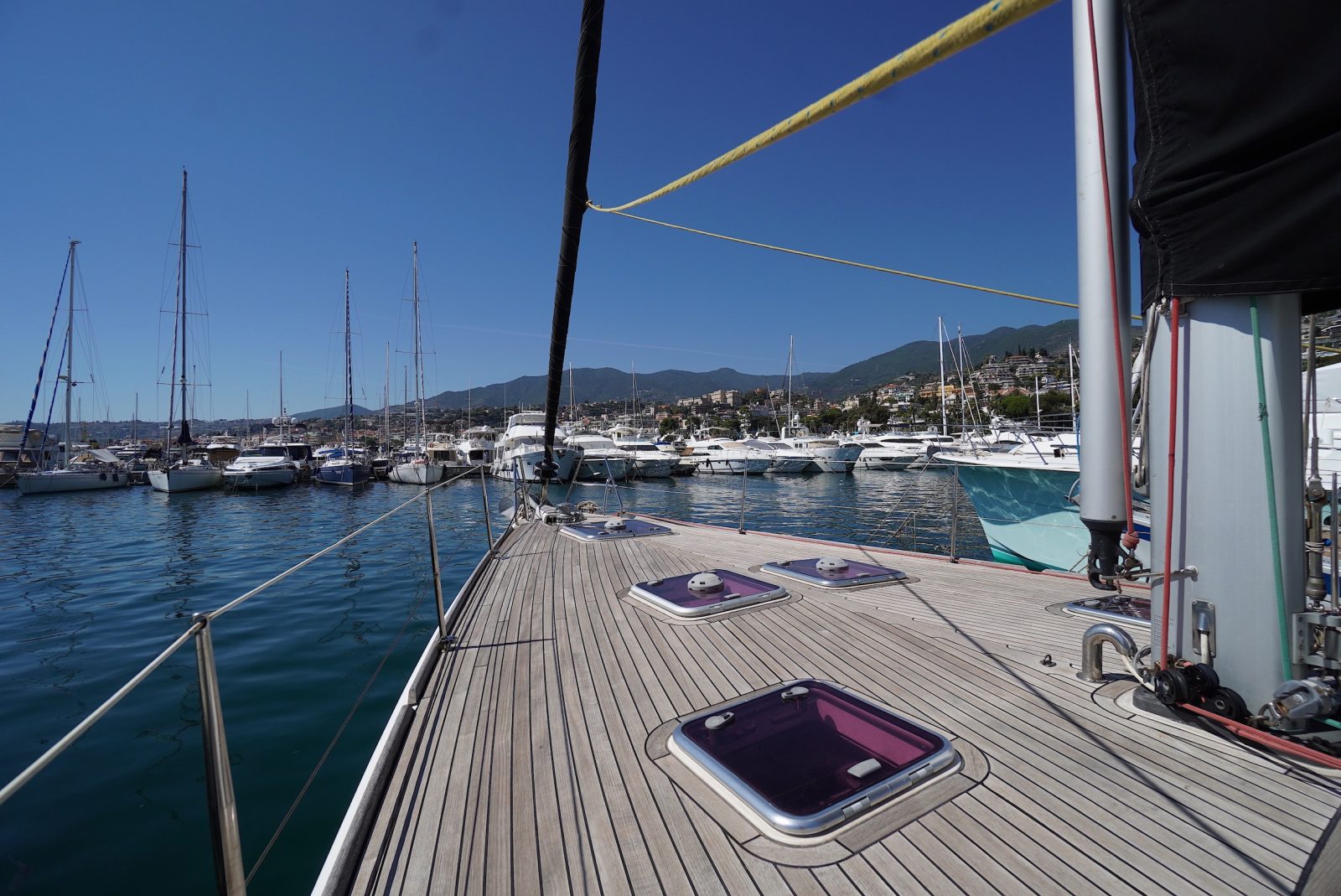

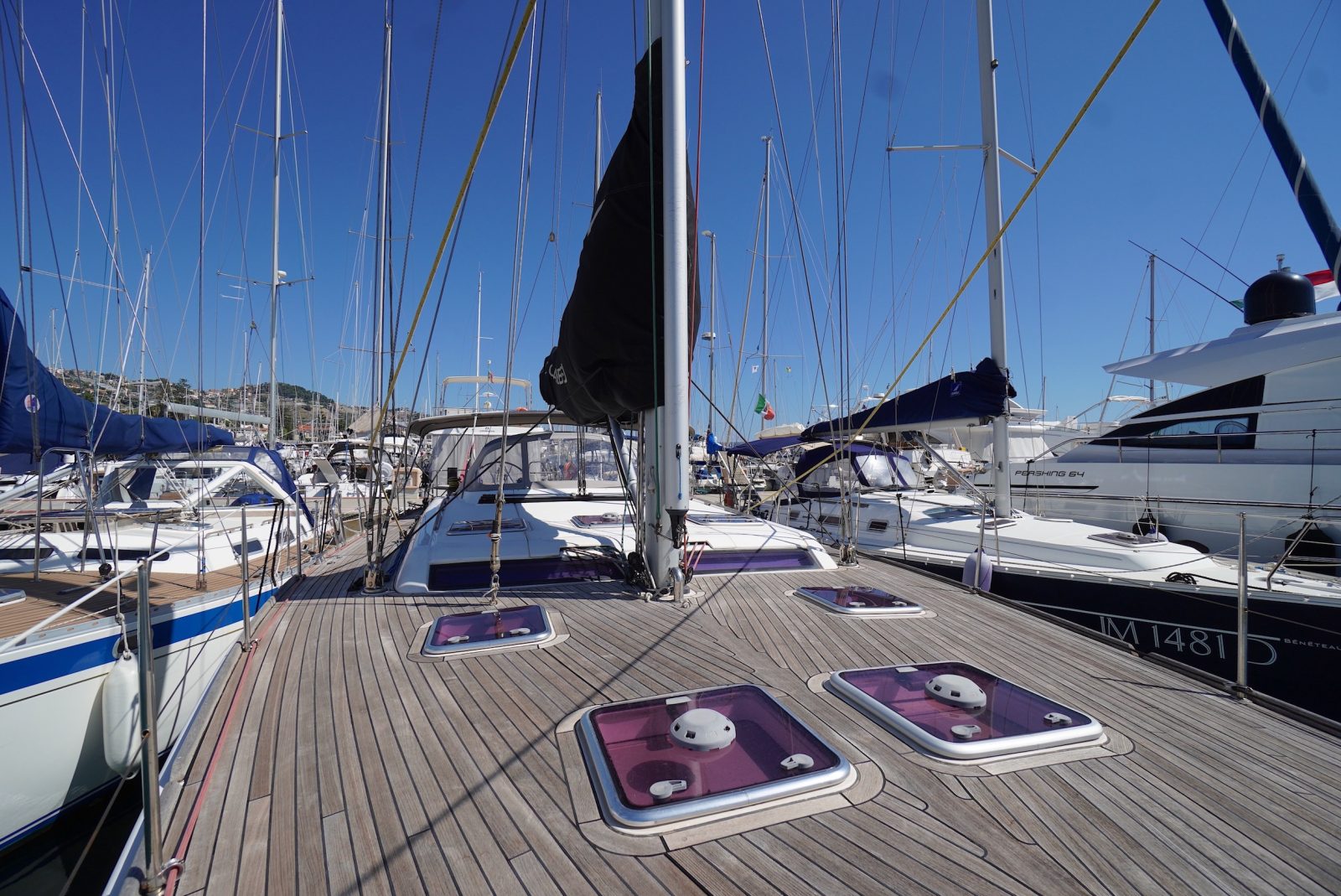

• 7 x LEWMAR opening deck hatches with blinds and mosquito screens
• 1 x LEWMAR opening bow deck hatch for access to crew cabin
• Mooring lines and fenders

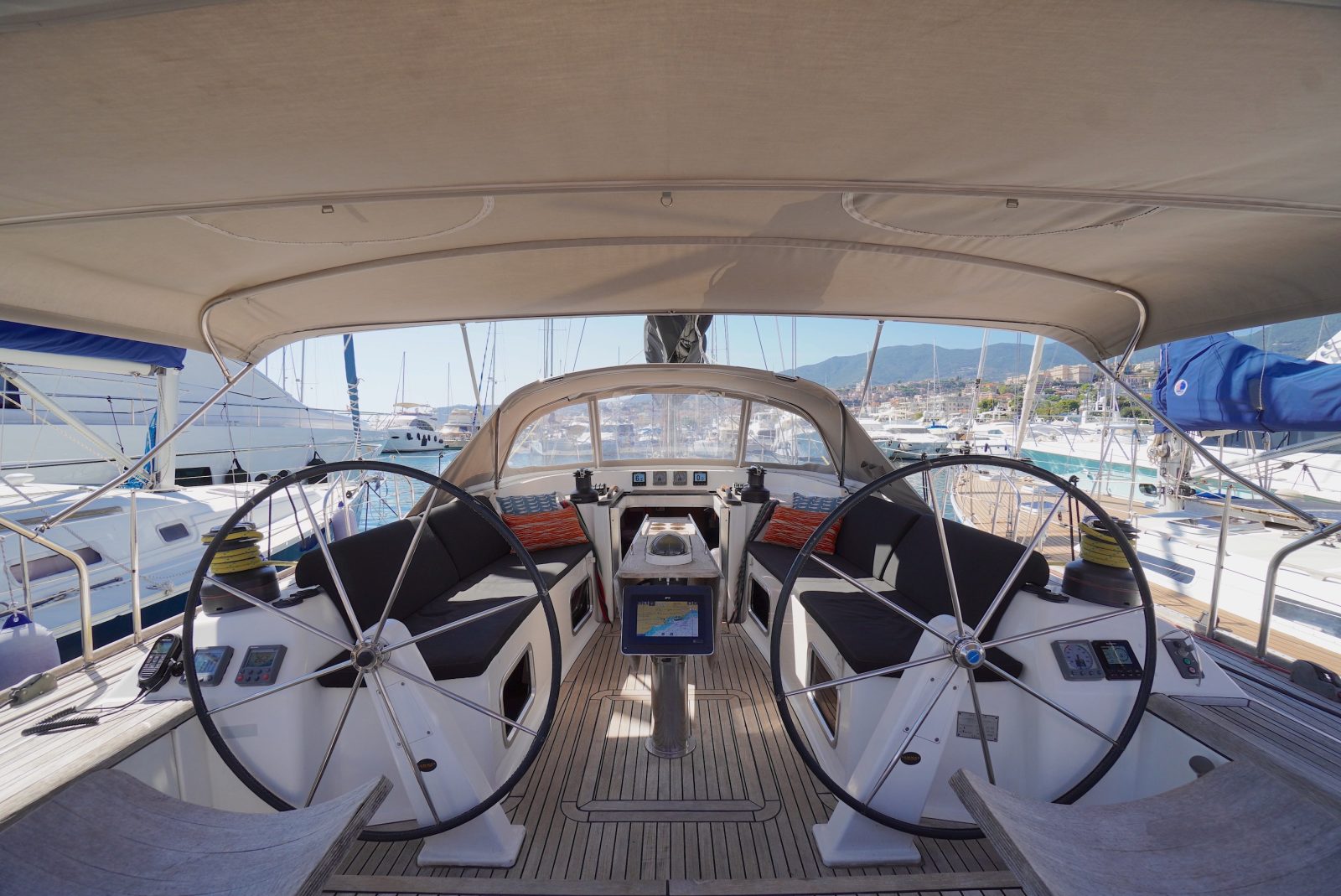

COCKPIT

• Cockpit seats and floor finished in Iroko teak with black caulking
• Cockpit cushions finished in black fabric
• Rigid cockpit table mounted on stainless-steel bars with wooden surface and folding side leaves. Storage box integrated in the table.

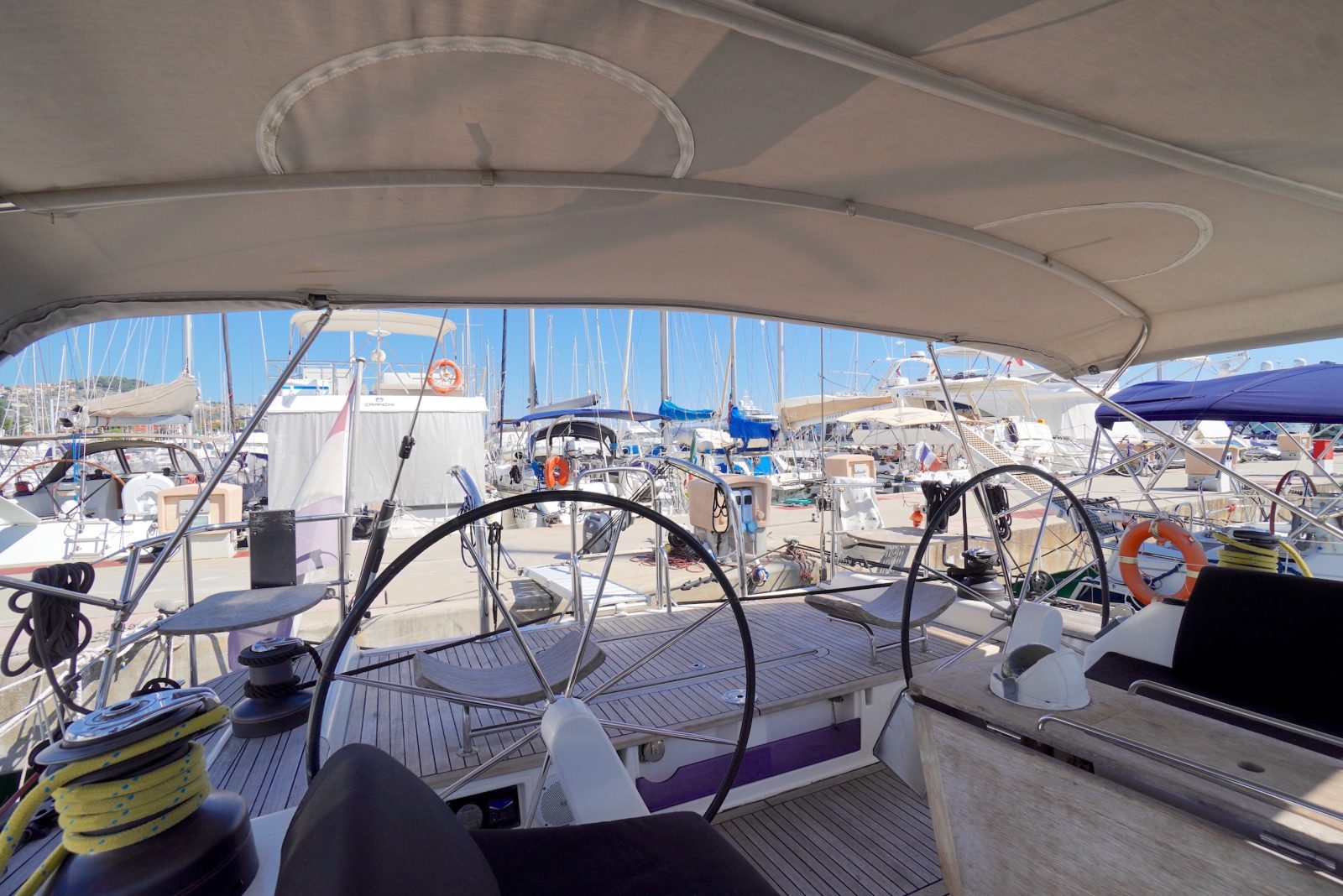

• Twin LEWMAR steering stations with 1100mm diameter steering wheels and wooden steering seats.
• 2 x Wooden pushpit corner seats
• Sprayhood in grey fabric (2023)
• Bimini top (2021) mounted on stainless-steel bars, covering the entire cockpit
• 2 x FUSION entertainment loudspeakers (2021)
• Removable aluminium passerelle

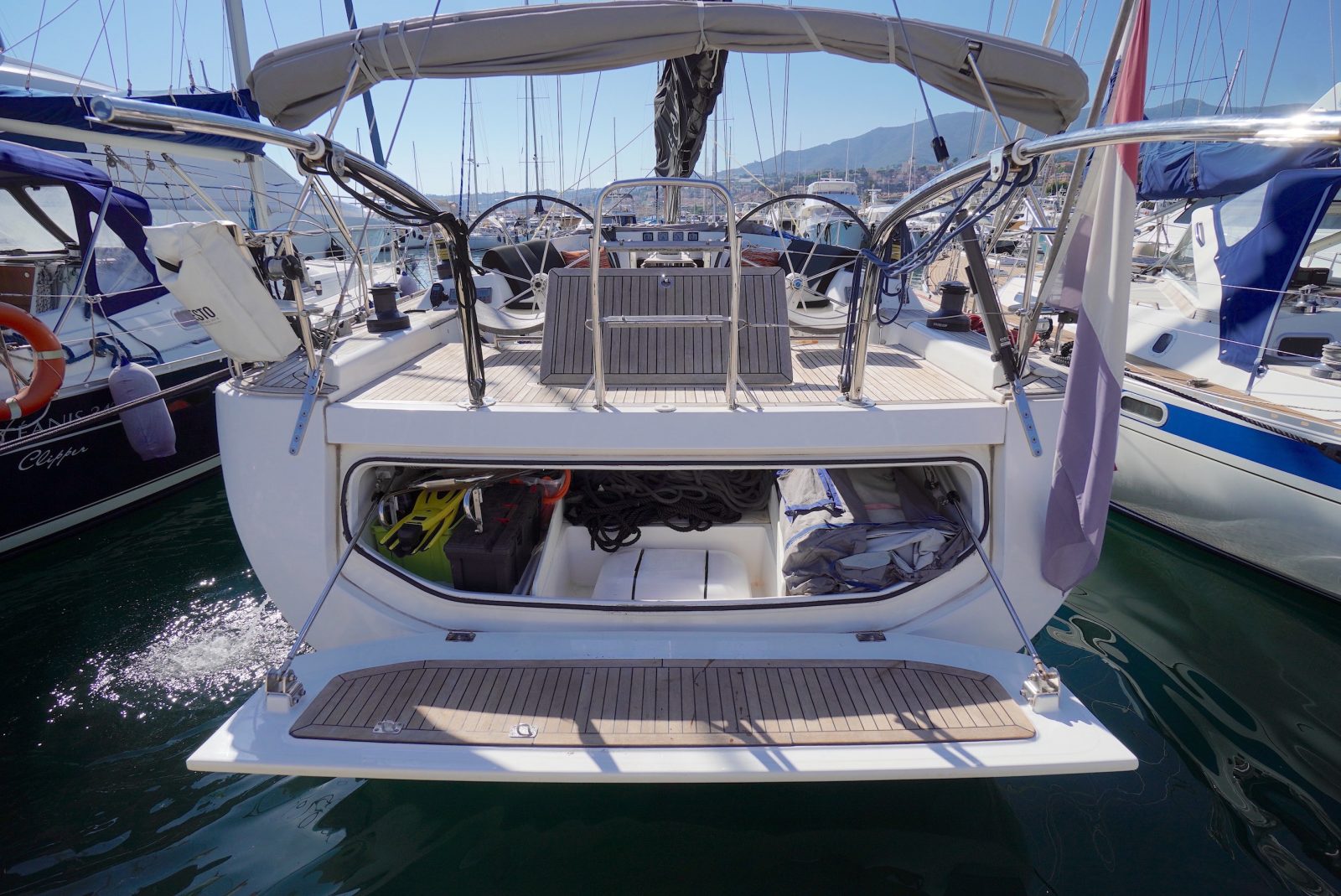

• Hydraulic opening bathing transom with garage, bathing ladder and shower
• Garage is also accessible by a large opening hatch mounted in the aft cockpit floor
• SIMPSON DAVITS polished stainless-steel davits with 40kg lift capacity
• ZODIAC 325 NEO dinghy with inflatable bottom (2012)

WINCHES

• 2 x HARKEN STE62 (2-speed) electric genoa winches in cockpit
• 1 x HARKEN STE48.2 (2-speed) electric halyard winch at starboard side companionway.
• 1 x HARKEN ST48 manual halyard winch at port side companionway
• 2 x HARKEN ST53 manual German mainsheet winches
• 2 x 6 SPINLOCK halyard jammers at companionway

MAST & RIGGING

• SPARCRAFT Performance aluminum anodized deck-stepped mast and boom
• Double aft-swept spreaders
• DYFORM standing rigging
• FACNOR LS290 headsail furler (2021)
• DYFORM backstay with SAILTEC hydraulic tensioner
• Removable inner fore stay
• SPARCRAFT aluminum boomvang (2023)
• HARKEN mainsail track with HARKEN ball-bearing cars
• Integrated telescopic aluminum bowsprit for gennaker
• SPARCRAFT aluminum spinnaker pole – stalled vertically to mast
• Lazy jacks

SAILS

• 1 x WITTEVRONGEL fully battened tri-radial Pentex mainsail (2008)
• 1 x WITTEVRONGEL tri-radial Pentex furling genoa (2008)
• 1 x WITTEVRONGEL asymmetric gennaker – 185sqm (2008)

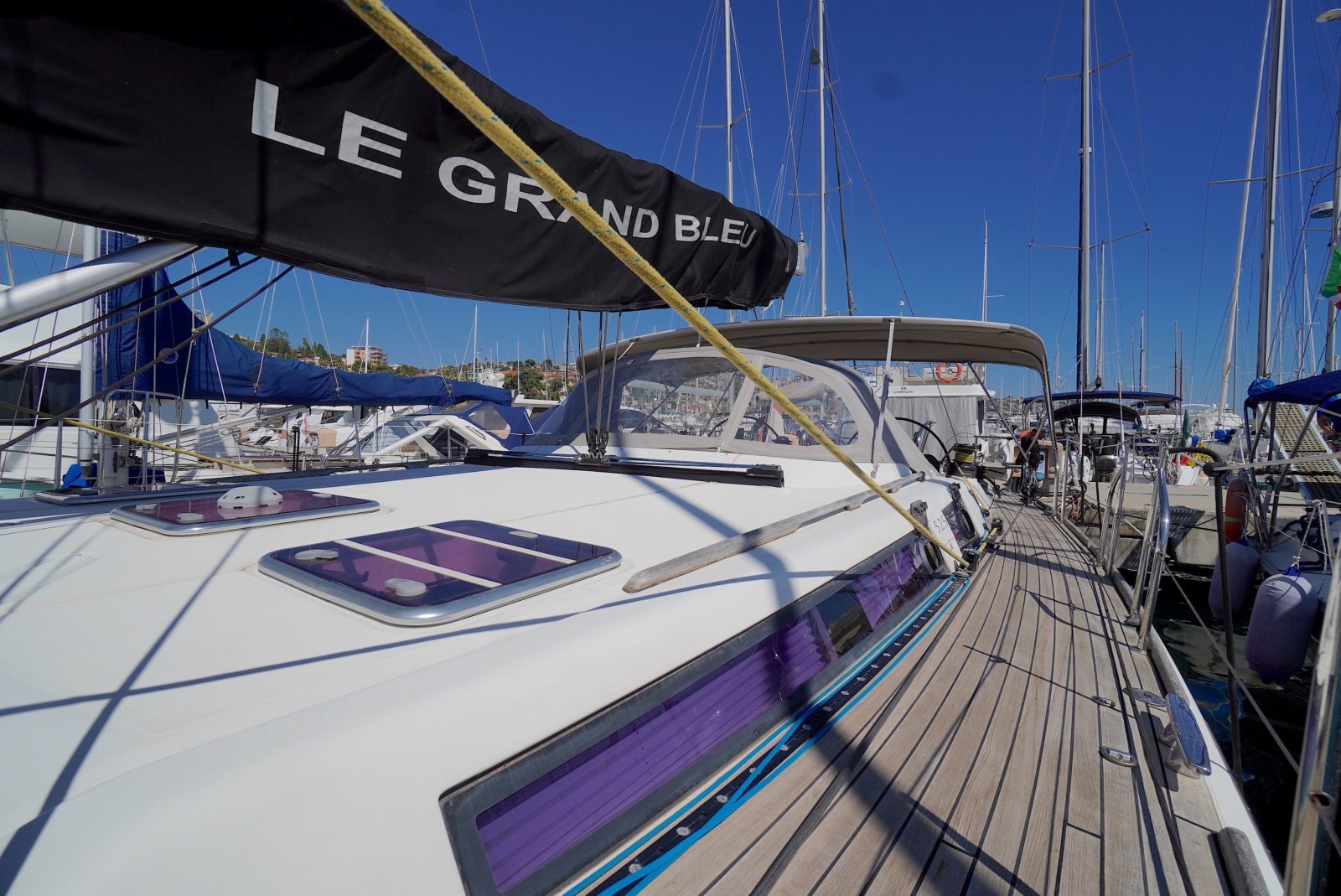

• Mainsail cover in black fabric

NAVIGATION INSTRUMENTS

Cockpit:

• LED navigation lights
• 1 x PLASTIMO Olympic 135 compass, mounted in cockpit table
• 3 x RAYMARINE multi repeaters (2021)
• 1 x RAYMARINE ST60+ speed and log
• 1 x RAYMARINE ST60+ wind angle and wind speed
• 1 x RAYMARINE ST60+ wind close hauled
• 1 x RAYMARINE RayMic model 60/70 VHF with DSC (2023)
• 1 x RAYMARINE ST70 autopilot (2021) with 2021 drive unit and engine
• 1 x RAYMARINE ST6002 Smartpilot
• 1 x RAYMARINE wireless Smart Controller for autopilot
• RAYMARINE AIS receiver/transponder
• 1 x AXIOM 9” touchscreen chart plotter/GPS mounted in stainless-steel swiveling pod under cockpit table.
• MAXPROP retractable bowthruster

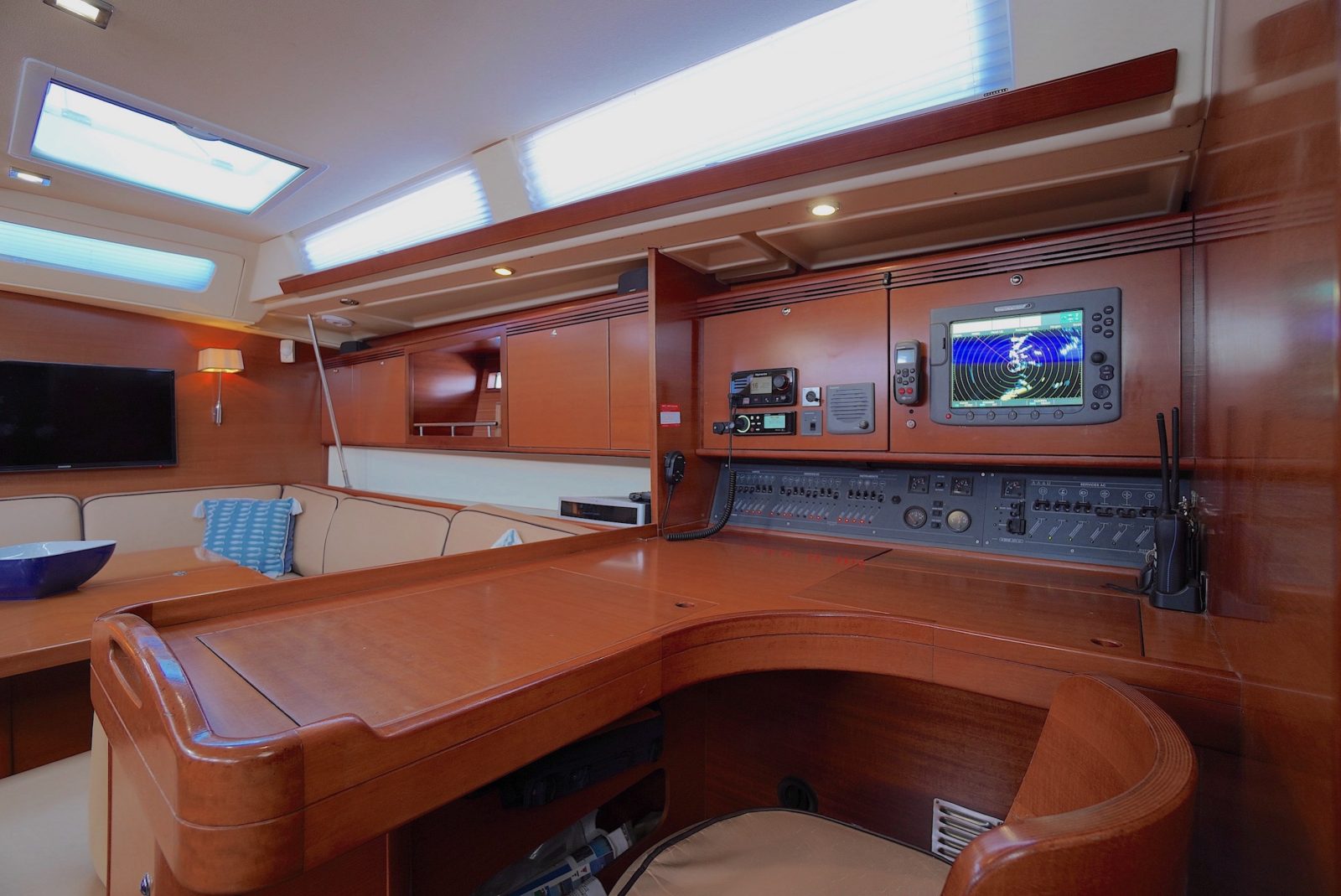

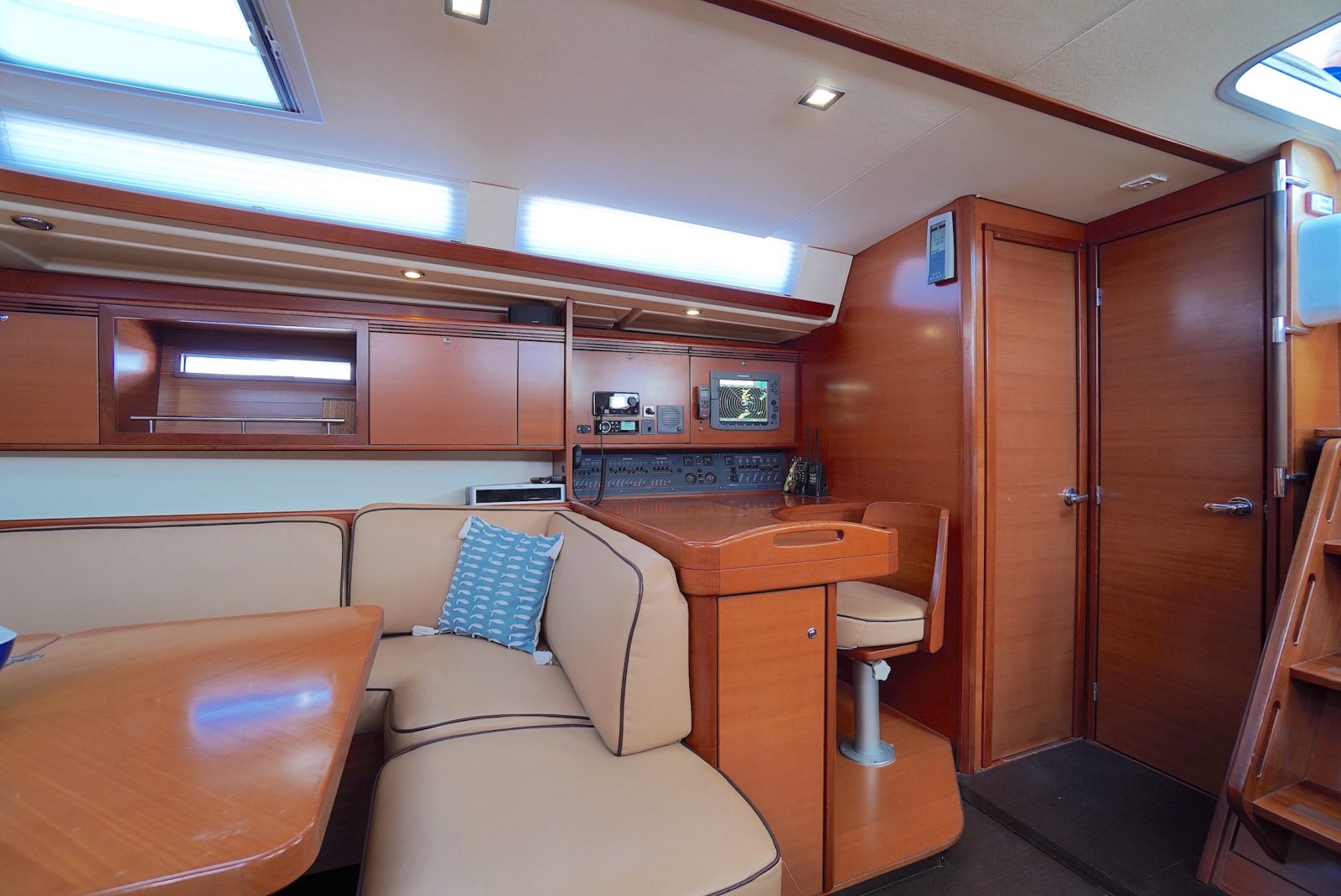

At chart table:

• 1 x RAYMARINE E120 radar
• 1 x RAYMARINE VHF with DSC (2023)

ENGINE

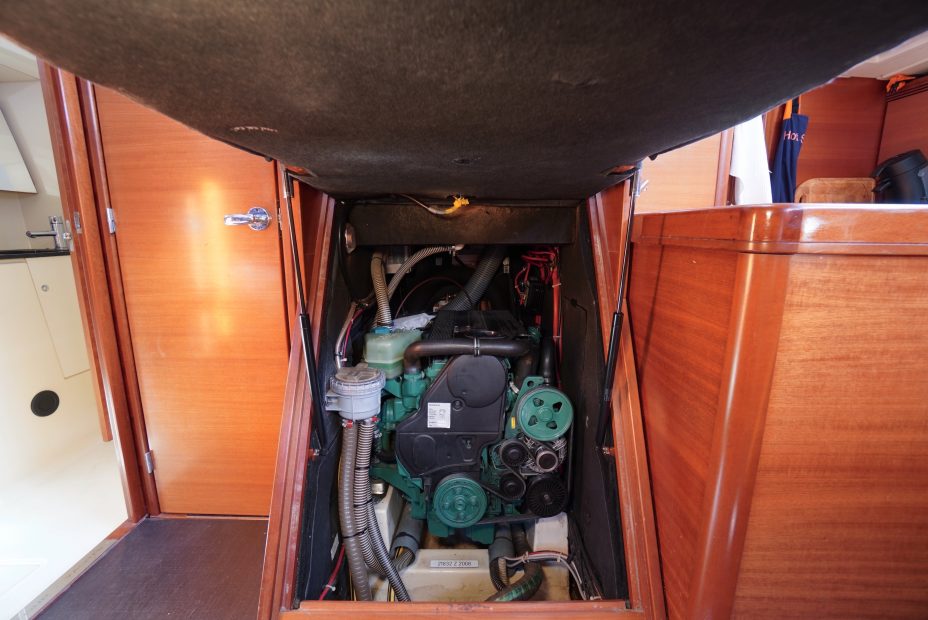

• VOLVO PENTA D3-110I (110hp) 4-cylinder turbo-diesel engine with intercooler
• 2.640 Running hours (dated 07/09/2023)
• Engine number: 2003012724
• Stainless-steel propeller shaft with 4-blade MAXPROP propeller (2015)
• High-output 120Ah alternator
• Engine has been annually serviced by official VOLVO PENTA dealer.
• Last engine maintenance in 2023 included new intercooler, drive belt, oil, filters and impeller.
• 2 x 250L rotomoulded fuel tanks situated under aft cabin beds

ELECTRICAL INSTALLATION

• 12v/220v electric power circuit
• 1 x VETUS 12v/110Ah engine start battery (2021)
• 5 x MASTERVOLT 12v/160Ah domestic batteries (2023)
• 1 x DOLPHIN 12v/72Ah generator battery (2023)
• 2 x 12v/80Ah bow thruster/windlass batteries, paralleled to 24v system (2022)
• 1 x MASTERVOLT 6,5KVA/1500RPM diesel generator (2008) with 62 running hours – Installed in silent shield box – Operating panel in starboard aft cabin.
• 1 x MASTERVOLT Mass Sine 12v/1200W inverter with control switch at chart table
• 1 x CRISTEC CPS2 12v/80Ah battery charger
• Shore power cable

PLUMBING

• Hot water system with 60L water heater located in saloon to starboard
• 3 x Fresh water tanks with a total capacity of 750L located at port and starboard saloon, and under forward cabin bed.
• Fresh water system with electric pump (2021)
• Cockpit shower with hot and cold water
• Waste 45L for aft starboard guest toilet

INTERIOR

• Interior finished in Moabi wood with Wengé dark wooden floorboards

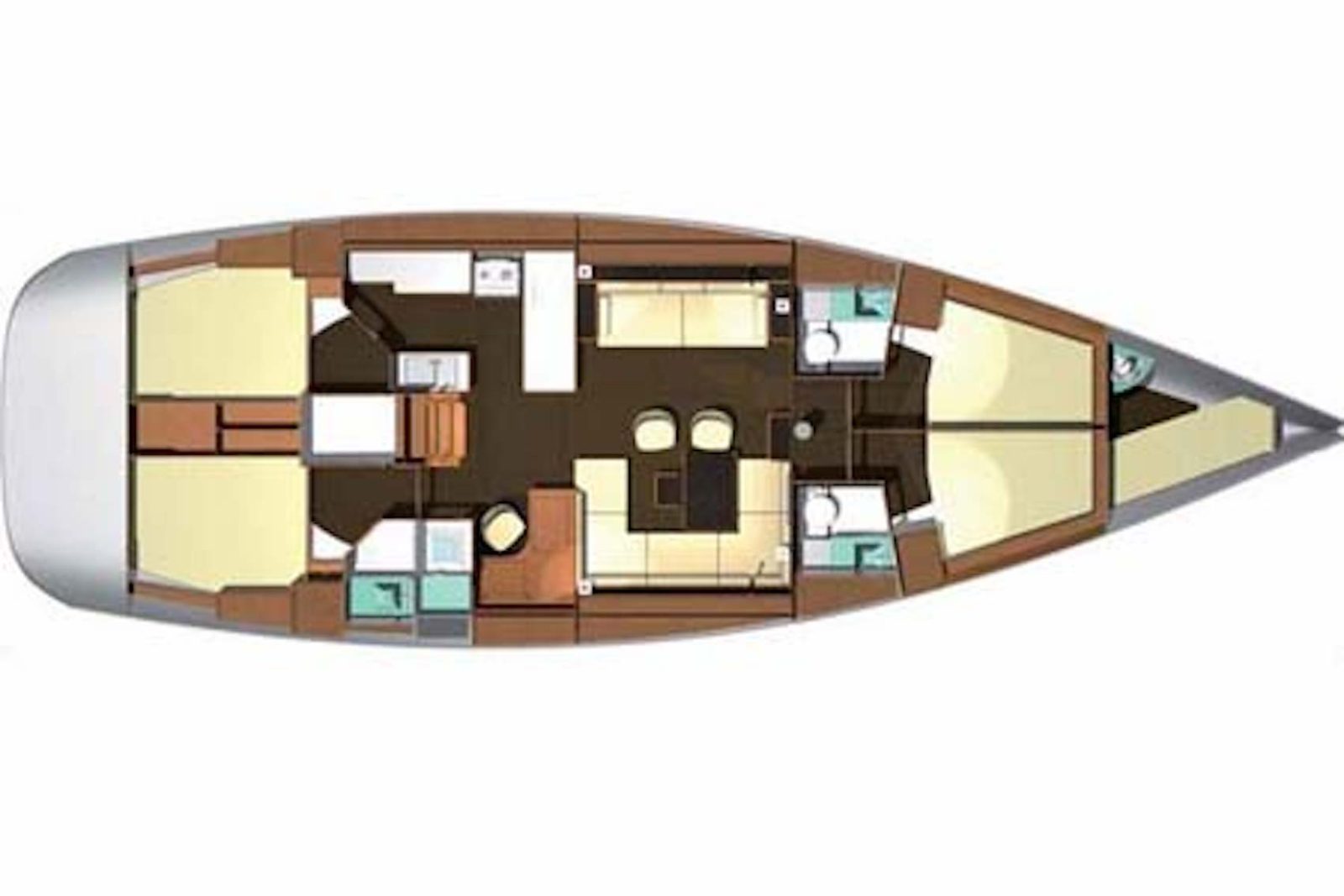

• Classic layout with three cabins, two head compartments and bow crew cabin
• LED ceiling lights
• EBERSPACHER 5kW interior heating with new engine installed in 2015 (needs service) – with five air exhausts.

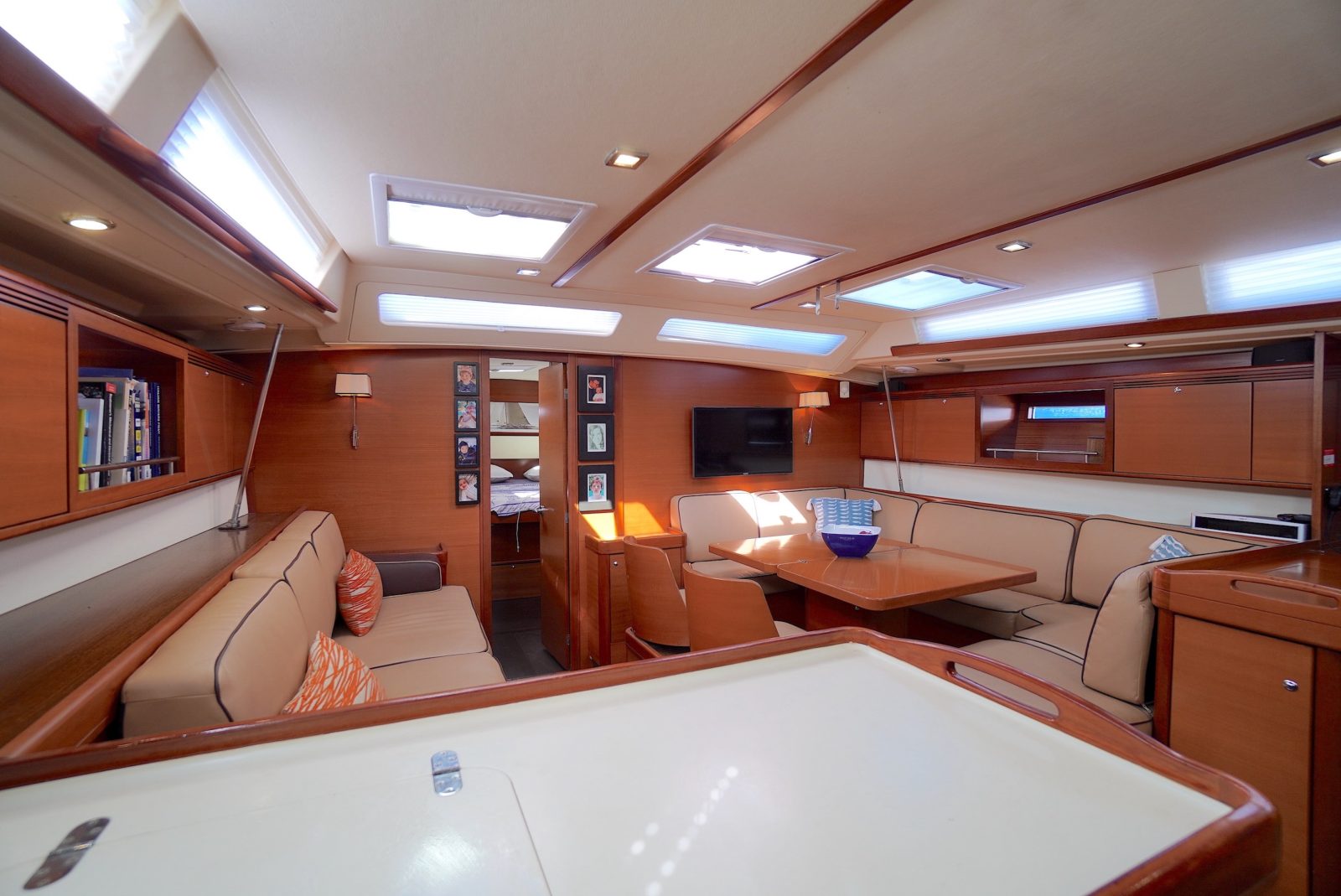

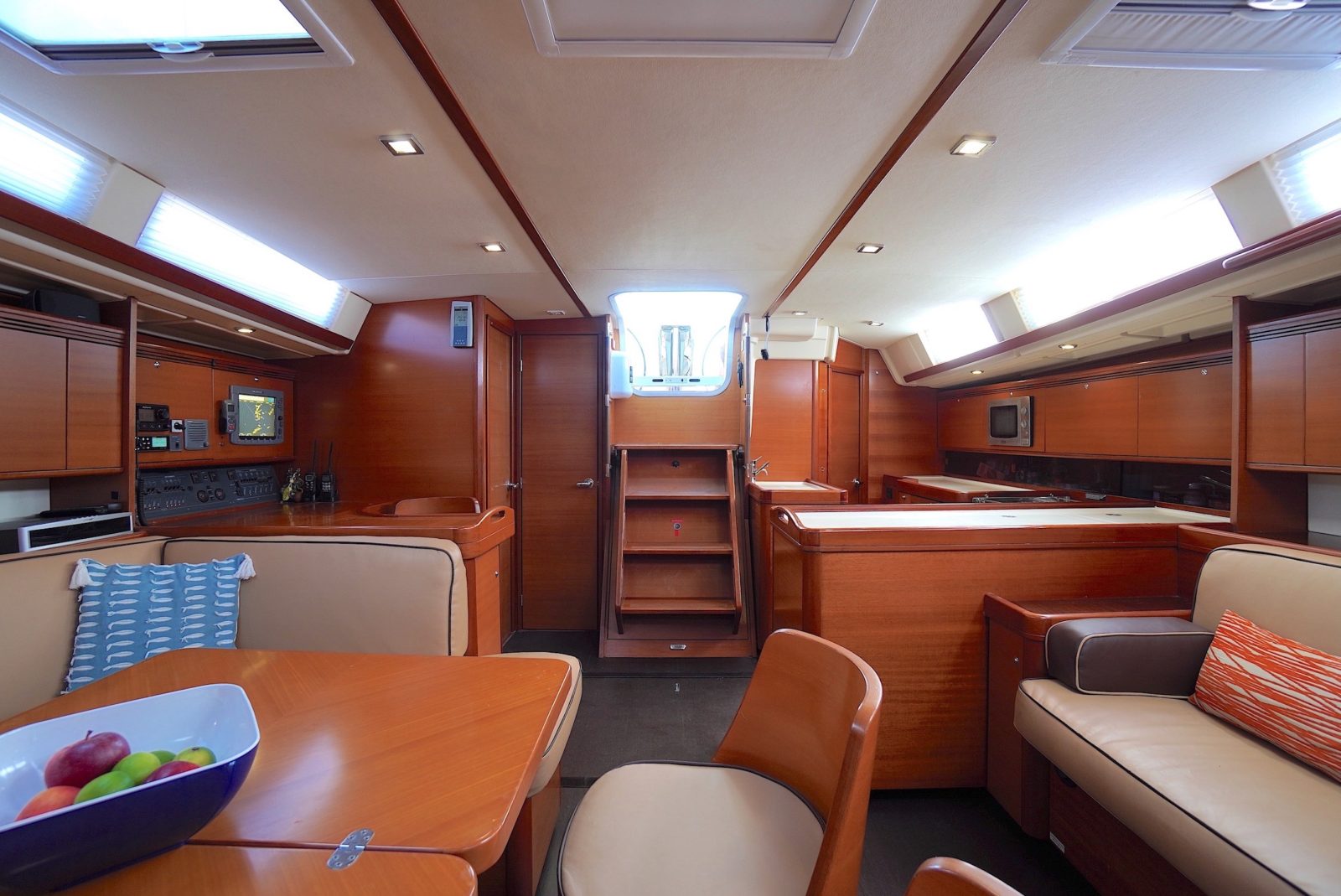

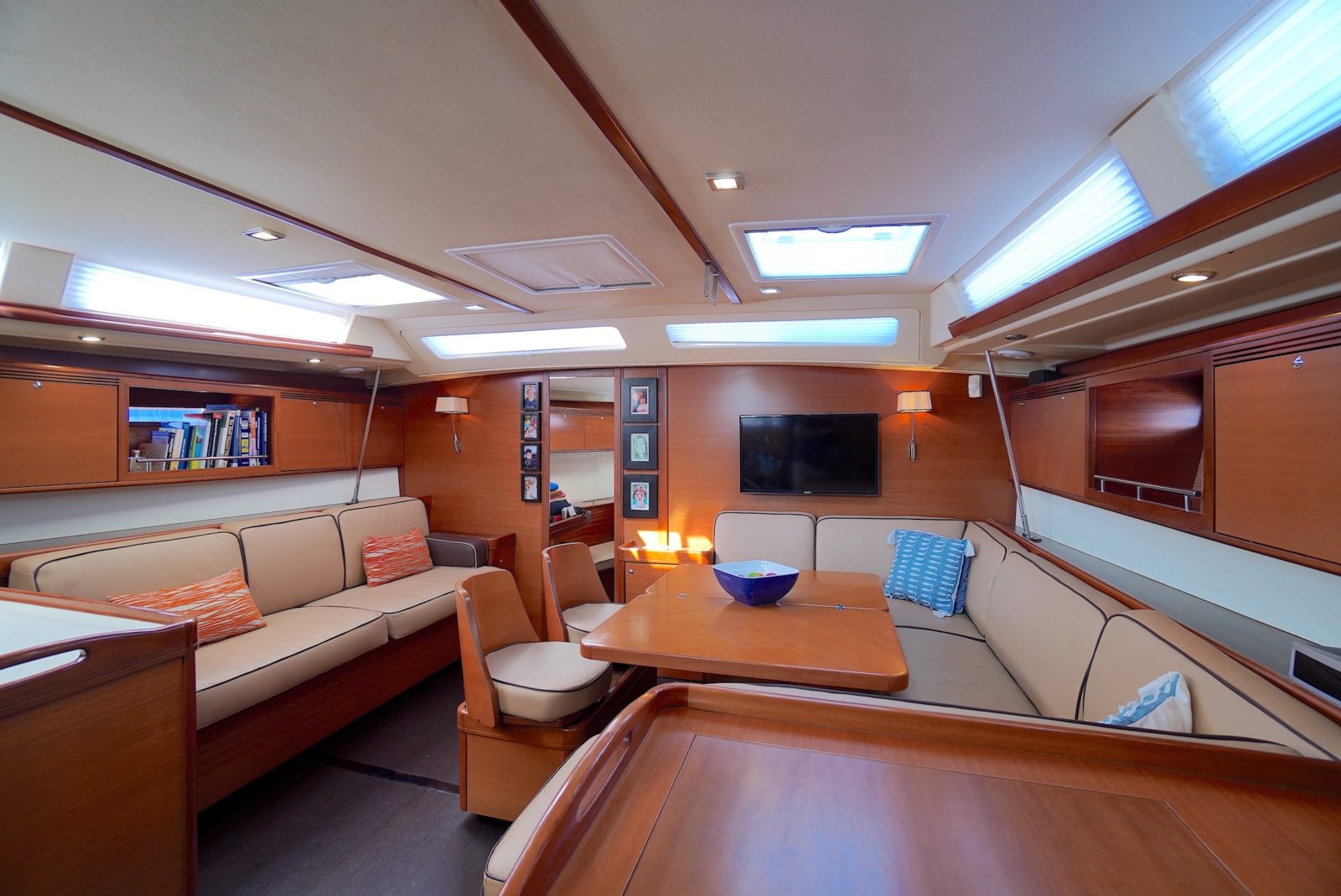

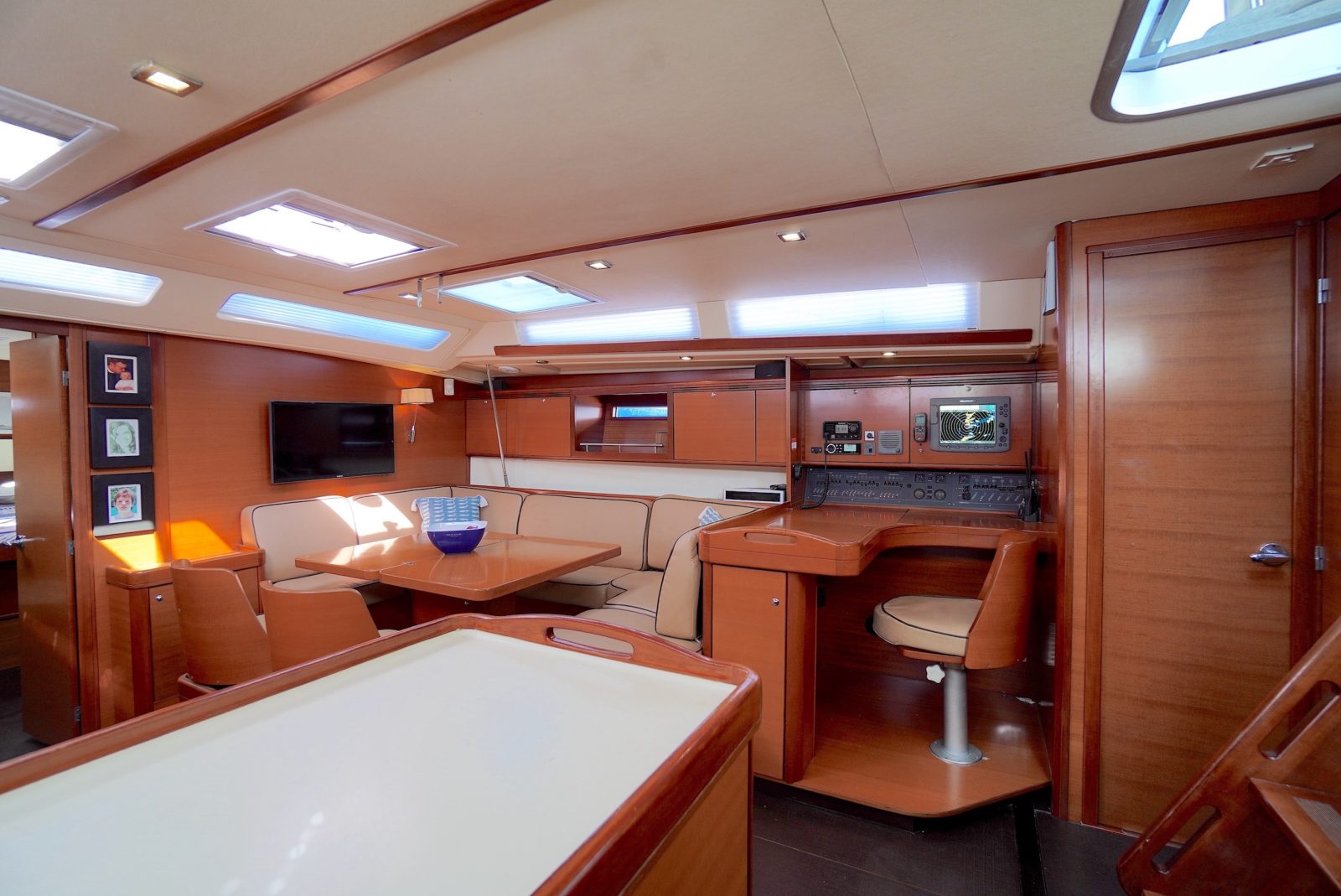

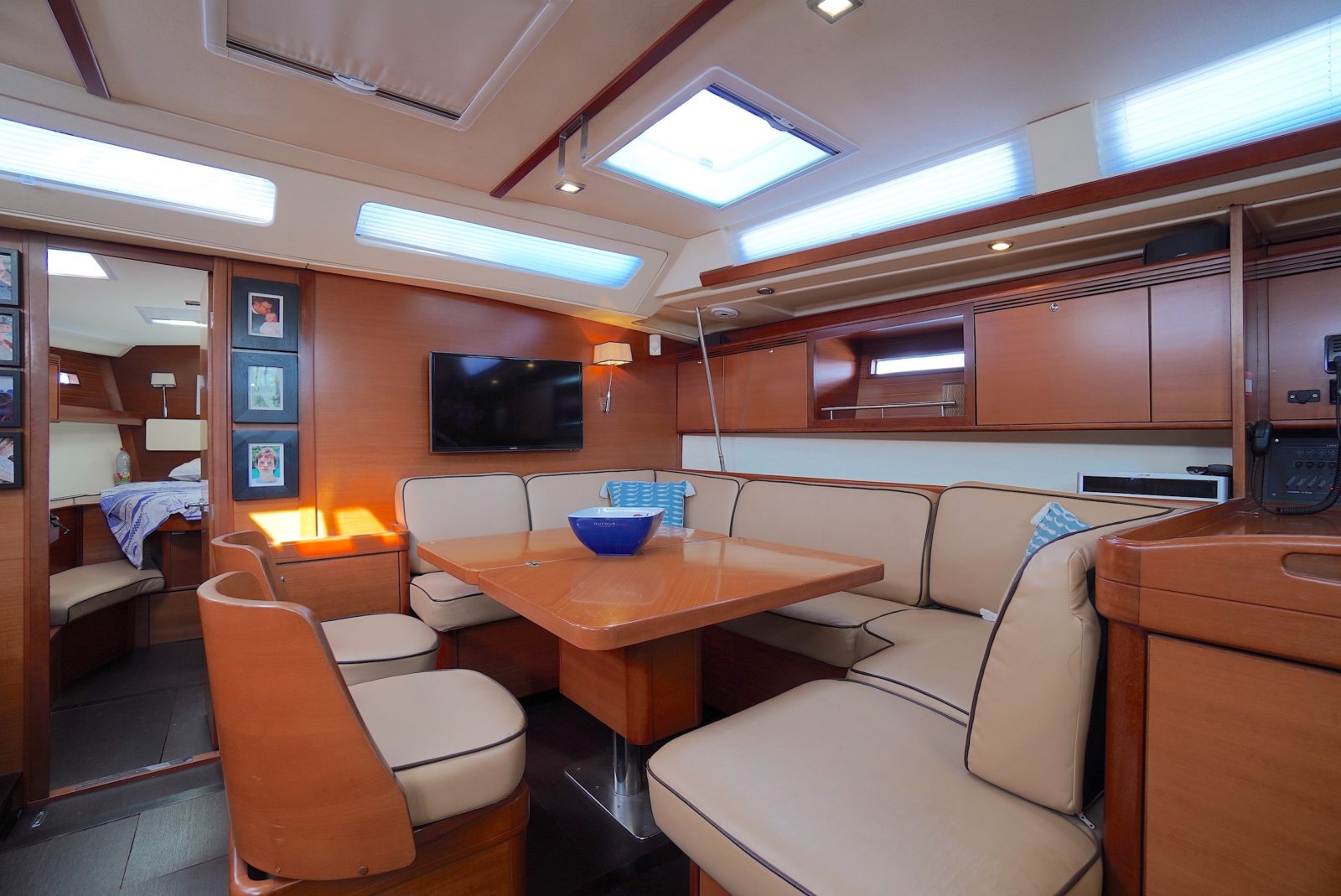

SALOON

• Headroom 1.96m
• C-shape sofa to starboard and straight sofa to port side, both finished in mocca artificial vinyl leather (2015).
• Two single swivel chairs mounted at saloon table – finished in mocca artificial vinyl leather (2015).
• Rigid saloon table with folding leaf
• Multiple storage lockers and cupboards
• OCEANAIR blinds for side windows
• Blinds with mosquito screens for all deck hatches
• SAMSUNG flatscreen TV mounted to main bulkhead (TV can only be operated via PC)
• FUSION MS-RA70N entertainment system with two FUSION loudspeakers (2021)

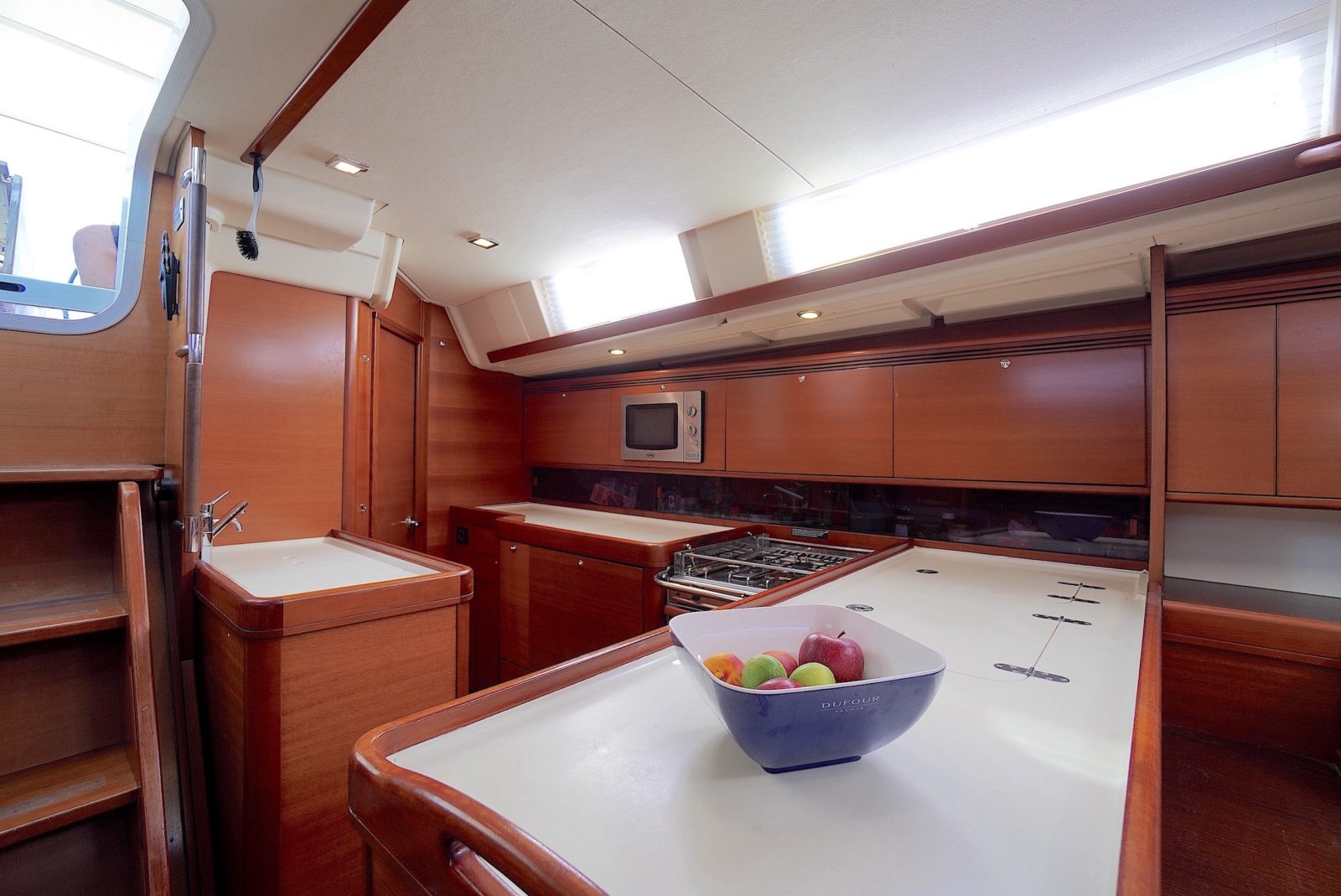

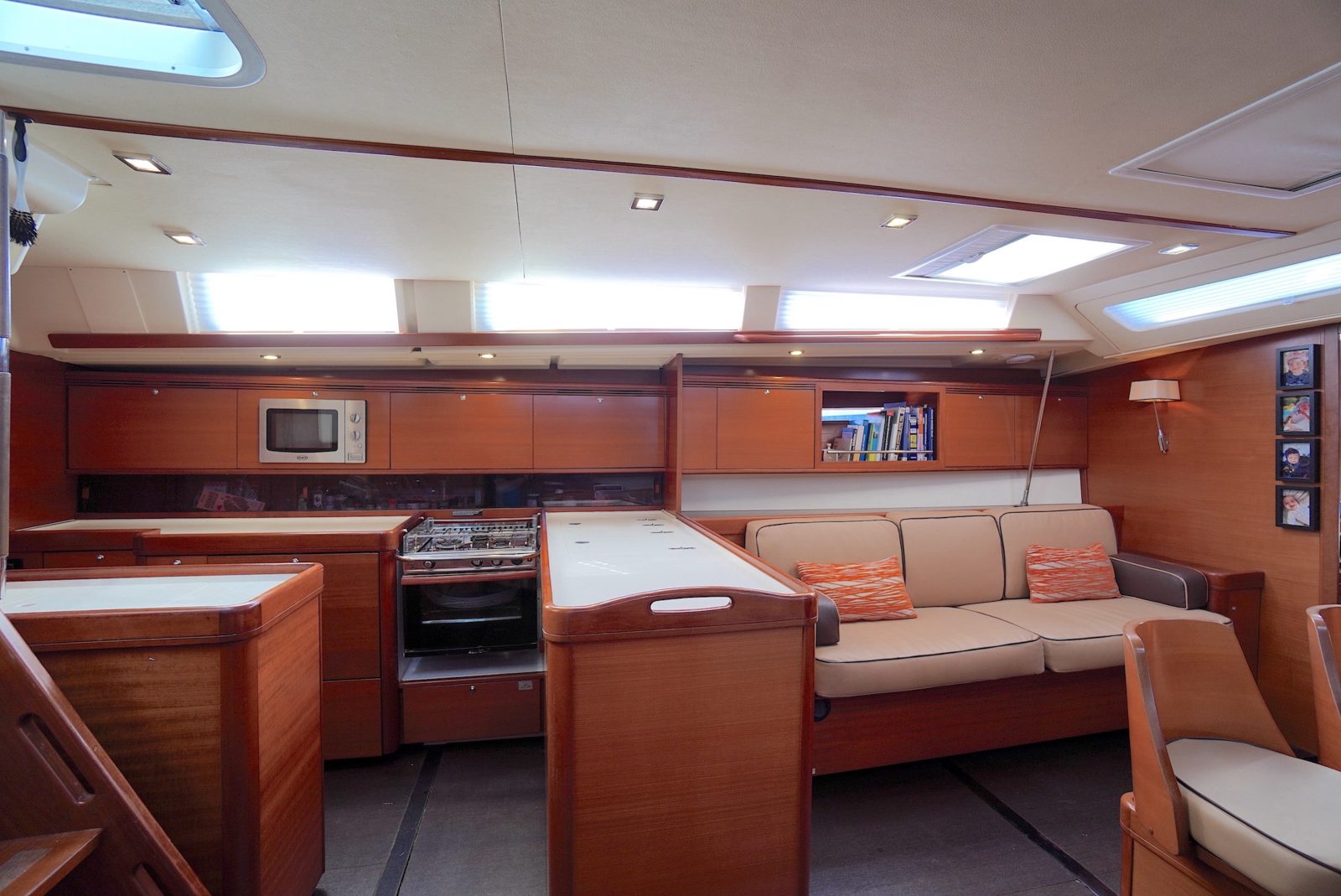

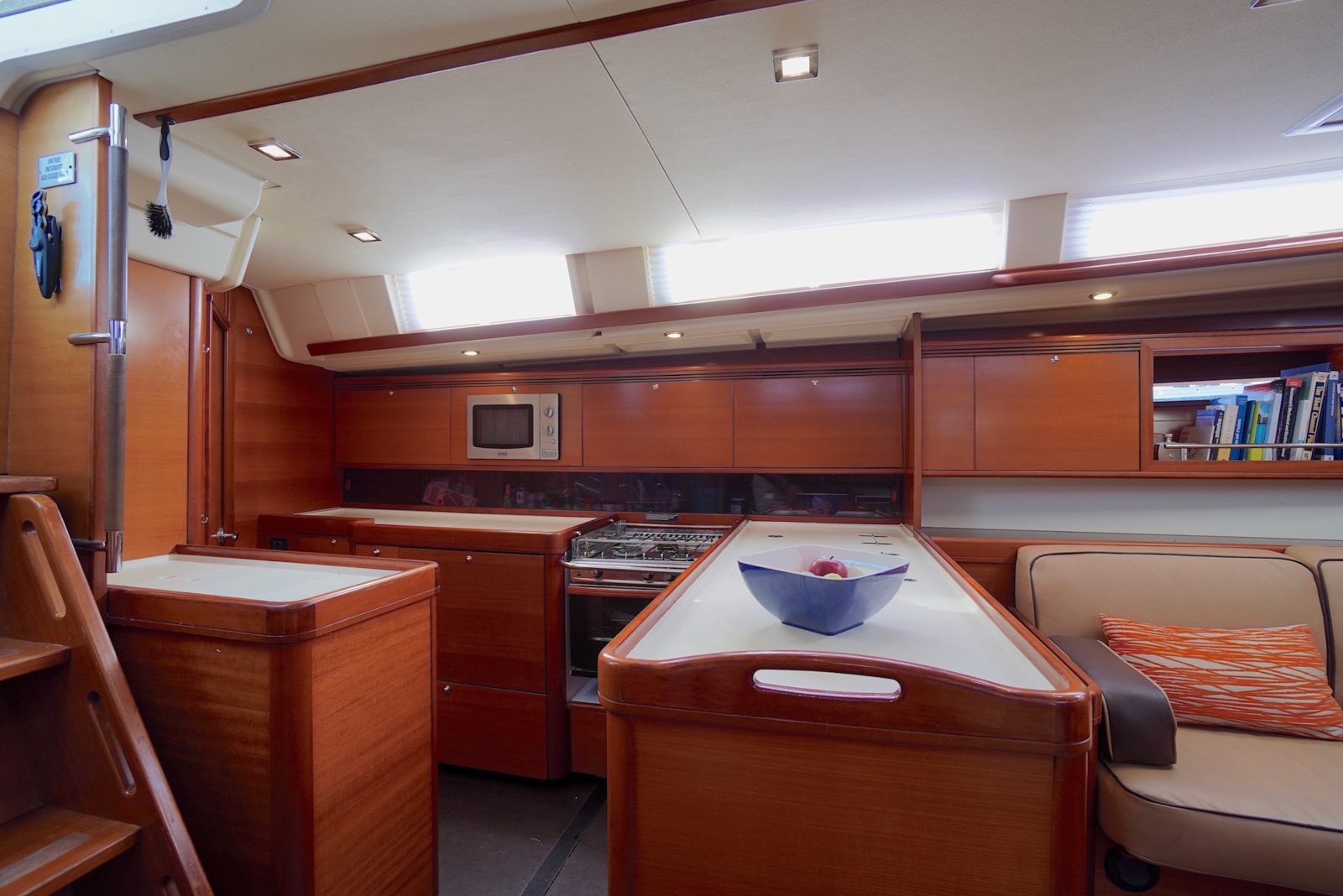

GALLEY

• Headroom 1.96m
• Located at port side next to the companionway
• Multiple lockers and cupboards
• White Corian stone worktop
• ENO 3-burner gimballed gas stove with oven
• ENO microwave
• 1 x ISOTHERM top loader 100L refrigerator
• 1 x ISOTHERM top loader 75L Freezer
• 1 x ISOTHERM front loader 130L refrigerator
• Double stainless-steel washbasins with hot/cold mixer pressure tap
• Two opening ports in coach roof side

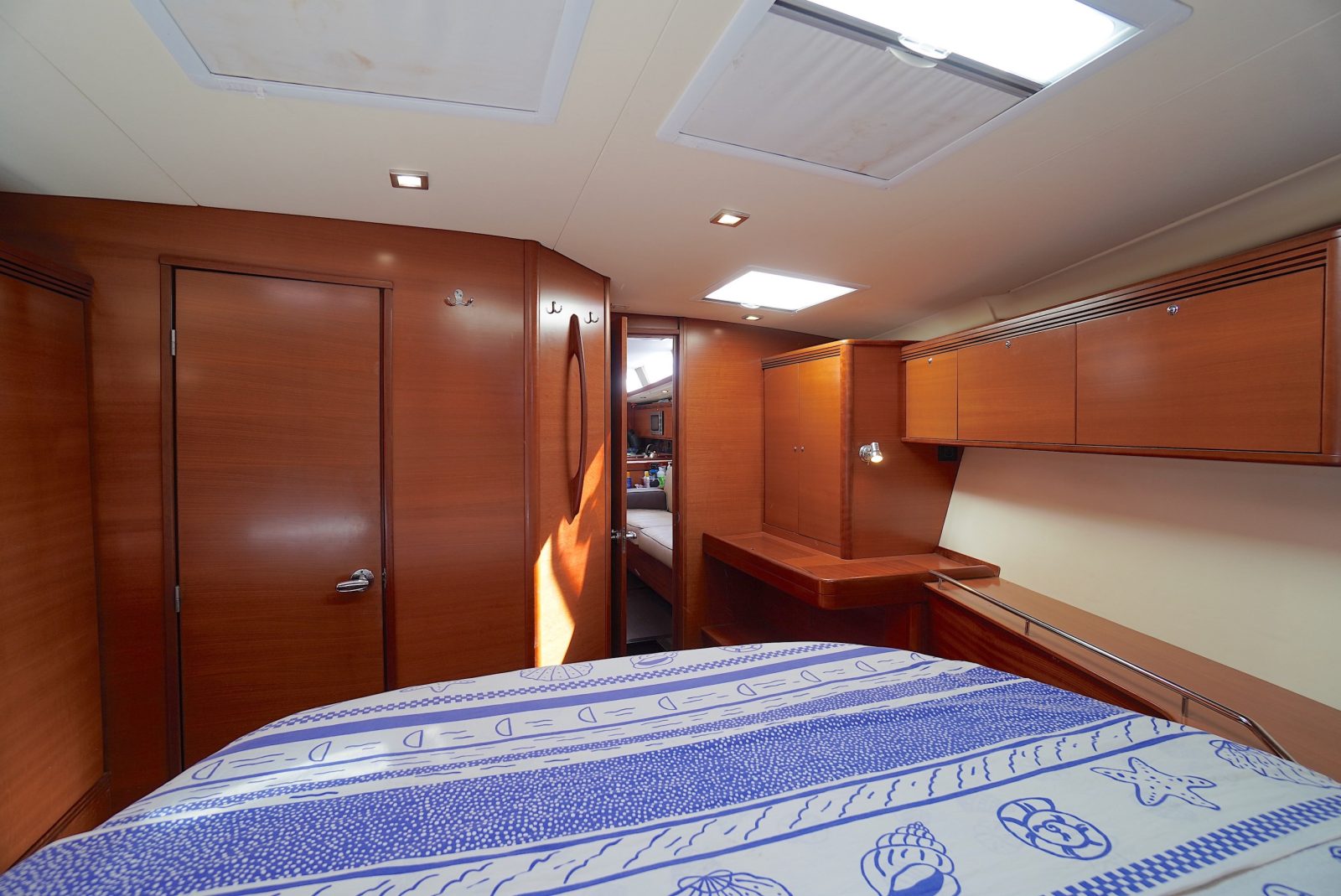

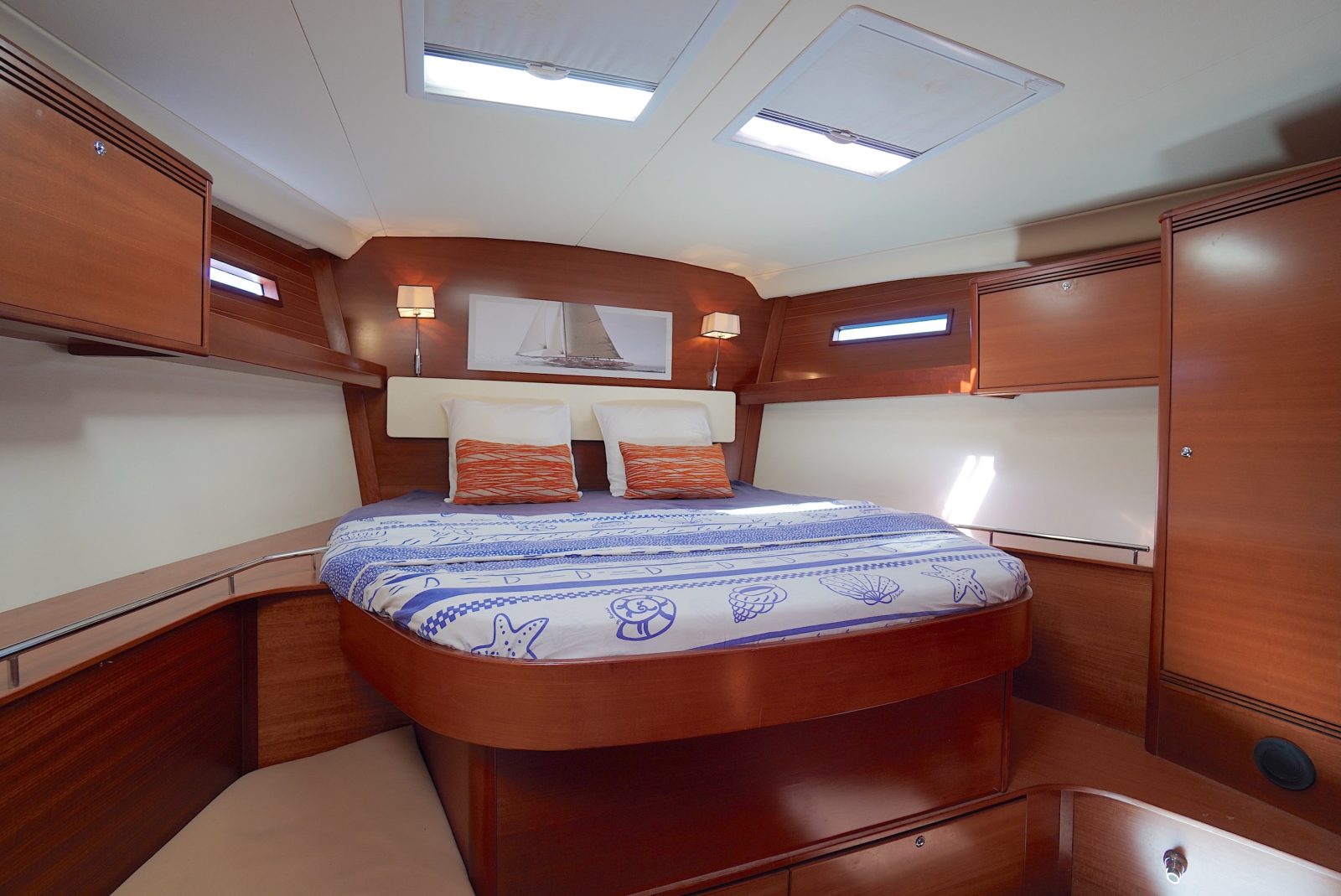

OWNER’S CABIN – FORWARD

• Headroom 1.92m
• Double “Island style” bed with head board and two reading lamps
• Various hanging-/storage lockers and cupboards
• Three opening deck hatches for extra ventilation
• En-suite head compartment (1.92m headroom) with washbasin with black Corian stone worktop, Jabsco manual flush toilet and separate shower cabin.

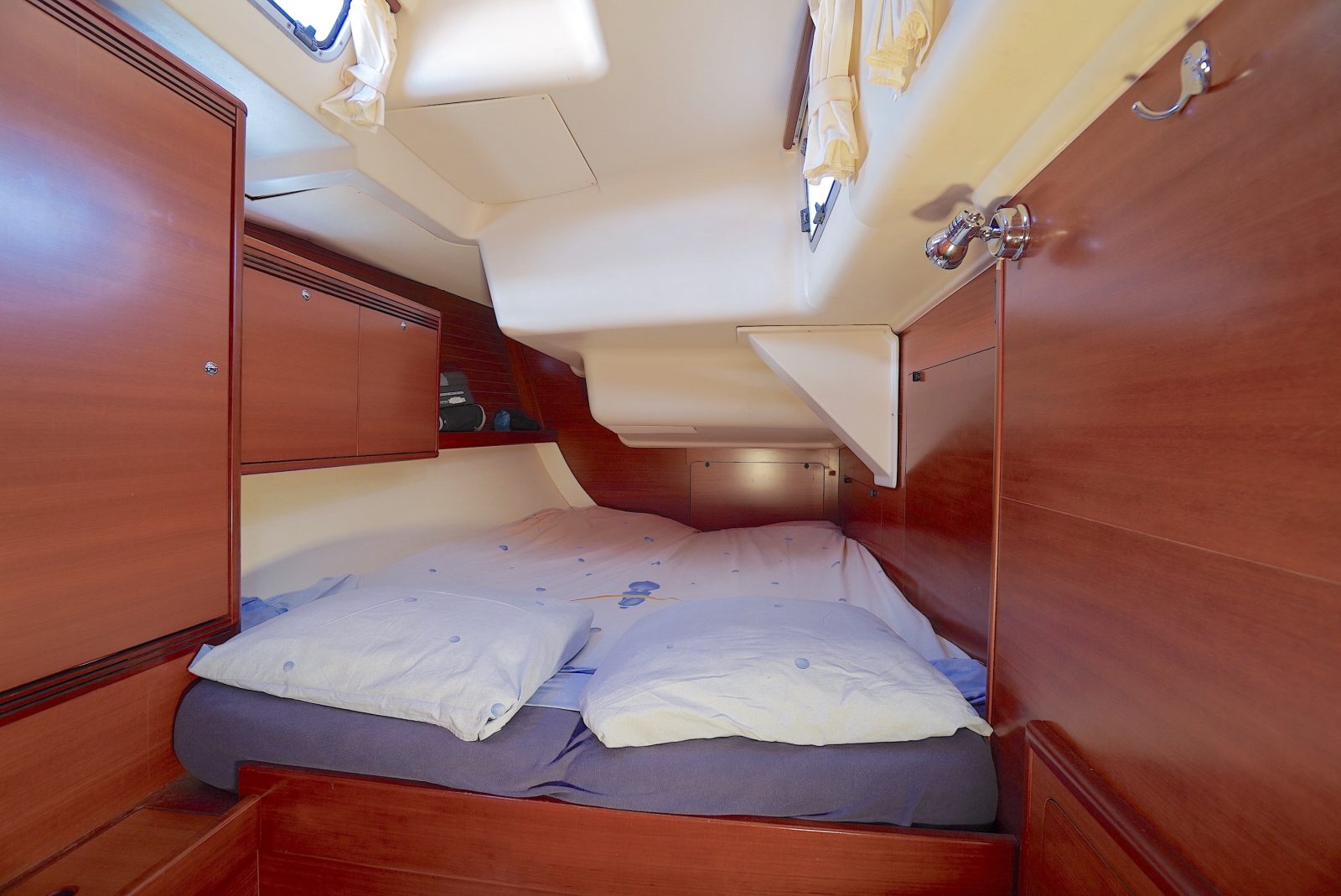

GUEST CABINS – AFT

• Headroom 1.88m
• Two identical aft cabins, each with double bed and opening cockpit portholes for extra ventilation.
• Clothing locker and cupboards

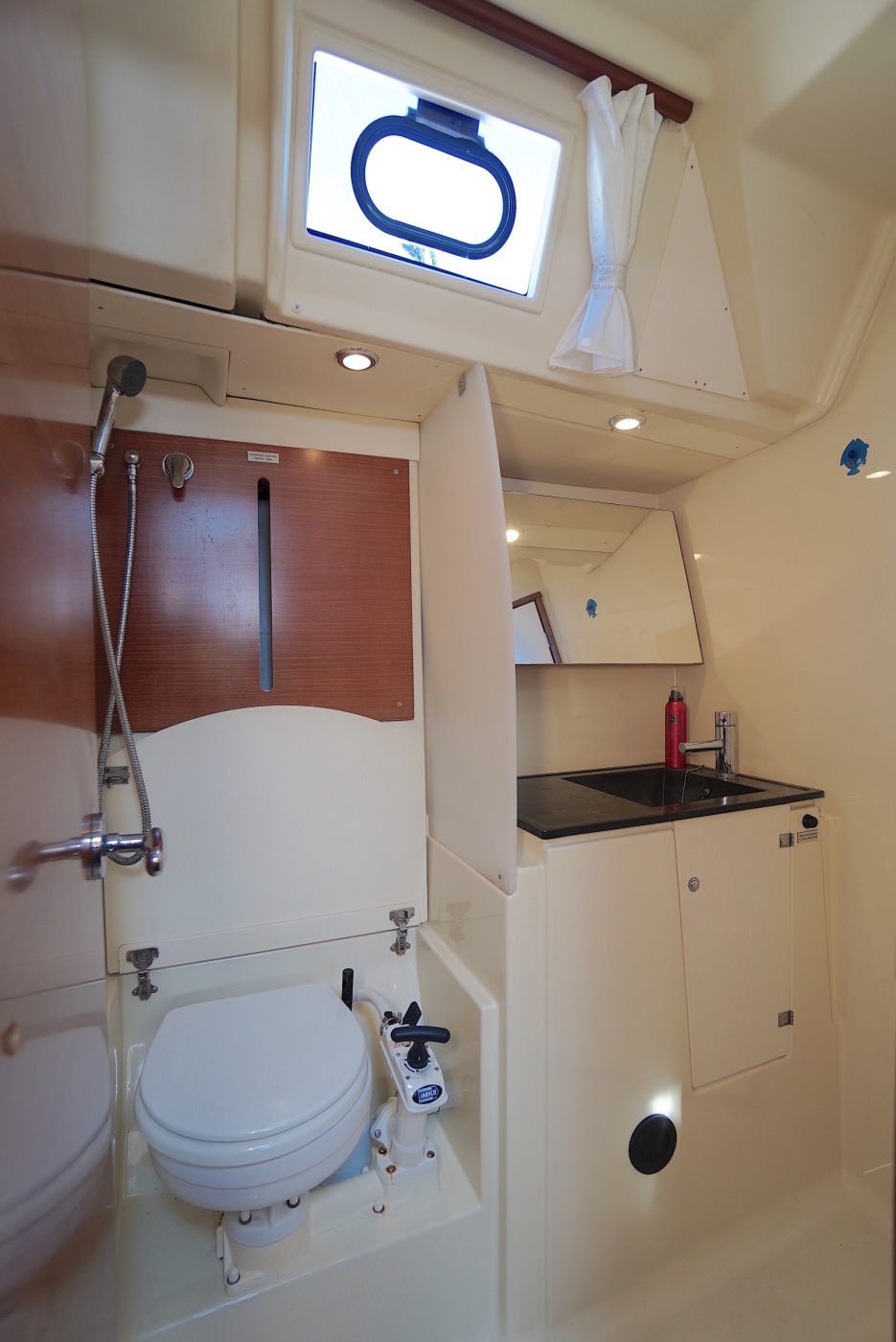

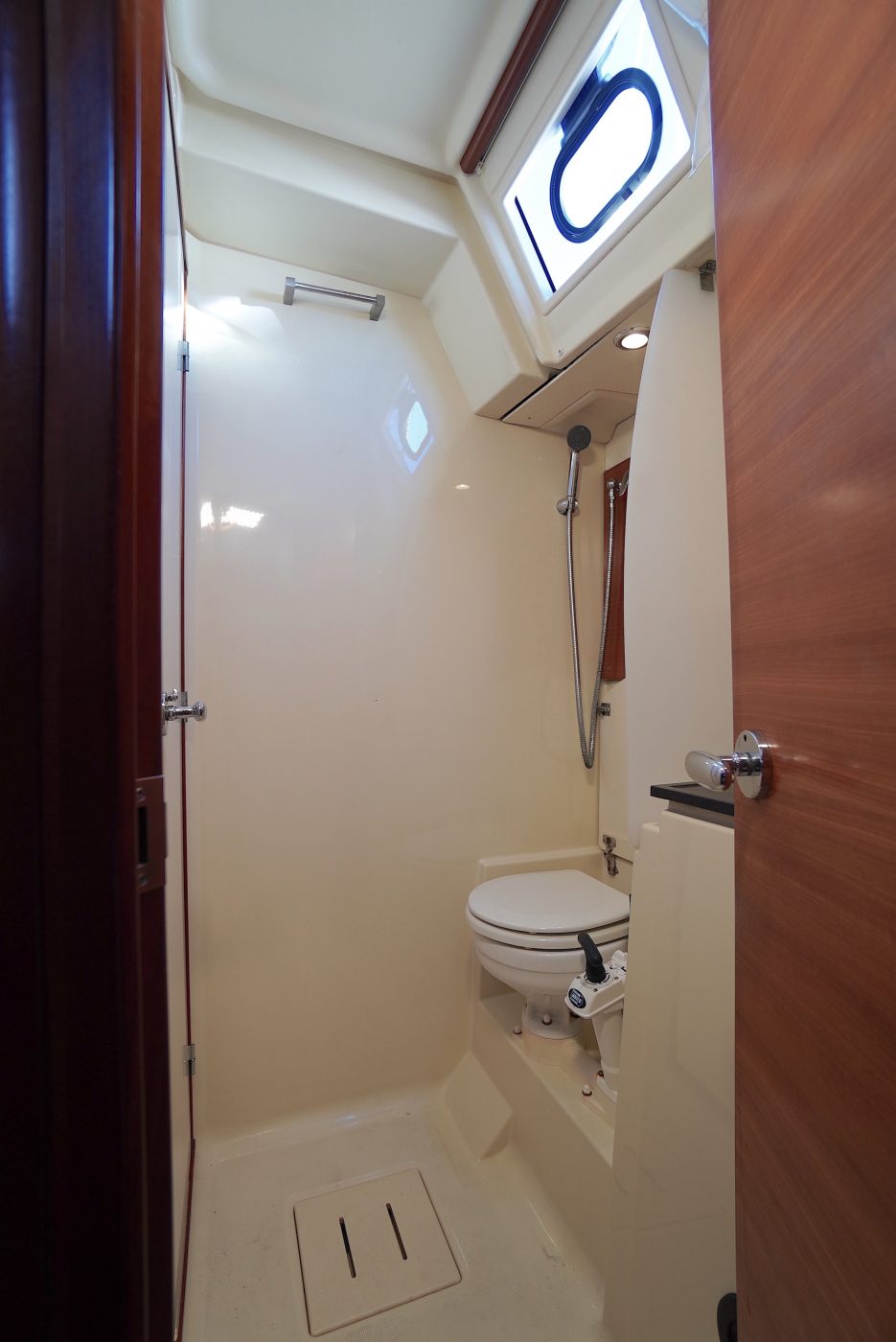

HEAD COMPERTMENT – AFT

• Headroom 1.88m
• Located at starboard side next to the companionway
• Washbasin with black Corian stone worktop, Jabsco manual flush toilet and handheld shower with drain.

CREW CABIN – BOW

• Headroom 1.87m
• The crew cabin is accessible via the bow deck hatch
• Stainless-steel access ladder
• Single bed with white vinyl matrass
• Access to bowthruster engine under bed
• Washbasin cabinet with water tap and mirror
• Jabsco manual flush toilet

SAFETY

• CE-category A (Ocean)
• 3 x 2kg fire extinguishers (2022)
• 1 x Electric bilge pump
• 1 x manual bilge pump located in cockpit
• Emergency tiller
• 1 x Life buoy

_______________________________________

The particulars detailed herein are intended to give a fair description of the vessel but their accuracy cannot be guaranteed. These particulars are not part of any contract or offer and are supplied on the understanding that all negotiations shall be through PJ-Yachting who is acting as broker only.

The prospective purchaser is recommended to check the particulars and, where appropriate (and at his own expense) to employ a qualified surveyor/engineer to carry out structural and/or mechanical and electrical surveys.
