General

• Name:
• Material: GRP
• Flag: Cayman Islands
• Length: 23.17 M
• Beam: 6.1 M
• Depth: 3 M

Specifications

2020 CNB 76

INTRODUCTION

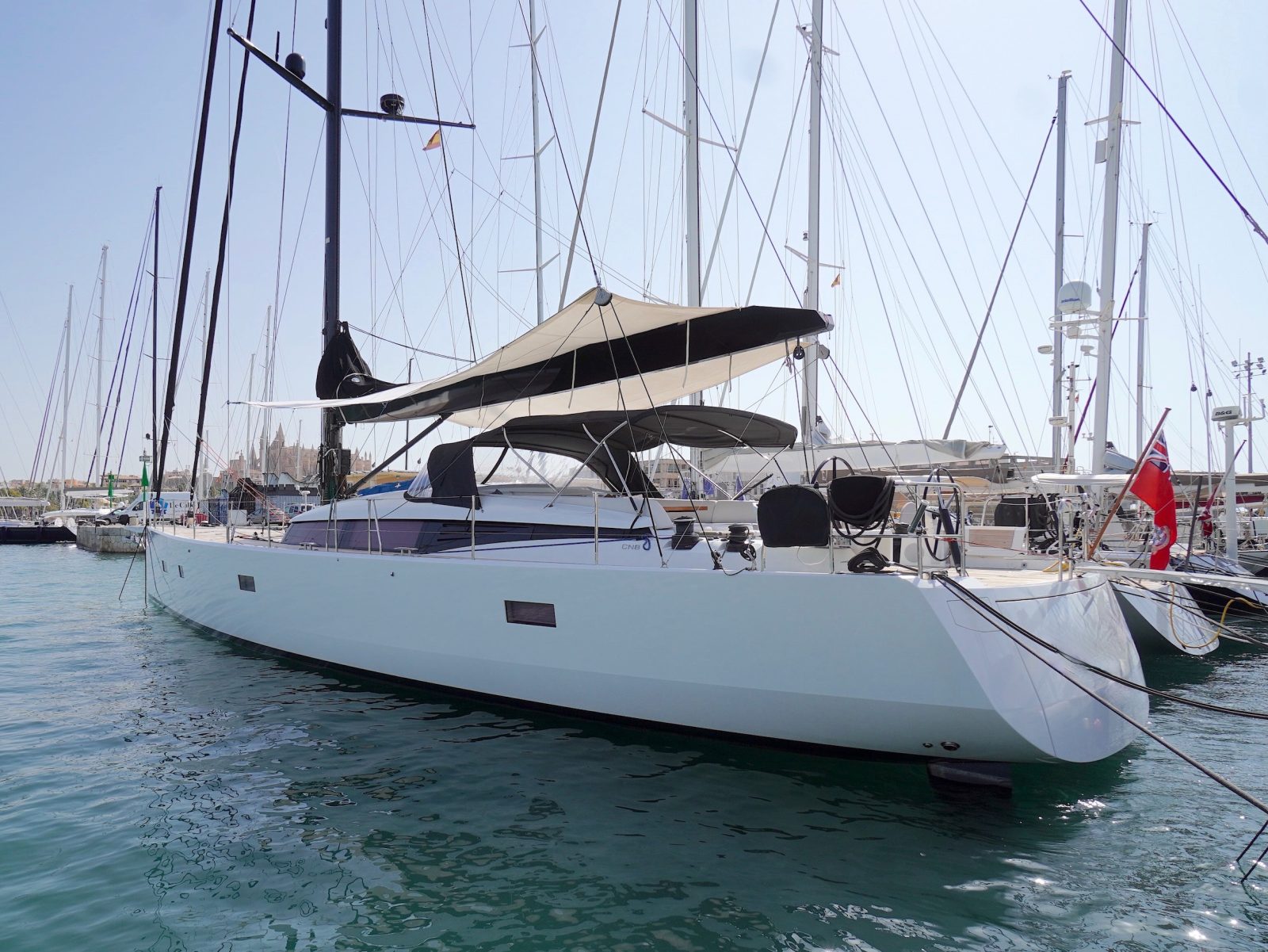

This stunning 2020 CNB 76 is new to the market and very well maintained by her first owner and permanent skipper since new.

Elegant, stylish blue-water cruiser offering ultimate luxury and built for comfortable and safe long-distance cruising.

Easy-handling sailing due to her optional installed hydraulic sail operation, upgraded electric winches, bow- and stern thrusters.

She comes with a carbon HALL SPARS mast and carbon Park Avenue boom, full set of NORTH 3Di sails, RECKMANN hydraulics and WILLIAMS jet tender.

Viewings are mostly encouraged on this pristine three years young yacht.

GENERAL INFORMATION

• Brand/type ………………………. CNB 76
• Naval architect ………………….. Philippe Briand
• Interior design …………………… Jean-Marc Piaton / Rafael Bonet
• Yard ……………………………….. CNB Yacht Builders, France
• Year ……………………………….. 2020
• Construction ……………………… GRP
• Dimensions ……………………….. L.o.a. 23.17m x B. 6.10m x D. 3.00m
• Air draft …………………………… 33.97m (excluding aerials)
• Displacement …………………….. Approx 45T (empty)
• Ballast ……………………………… Approx 15T
• Water ……………………………… 1.550L
• Diesel ……………………………… 2.550L
• Location …………………………… Barcelona, Spain
• Price ……………………………….. € 2.775.000, –
• VAT-status ……………………….. Not paid
• Flag ………………………………… Cayman Islands

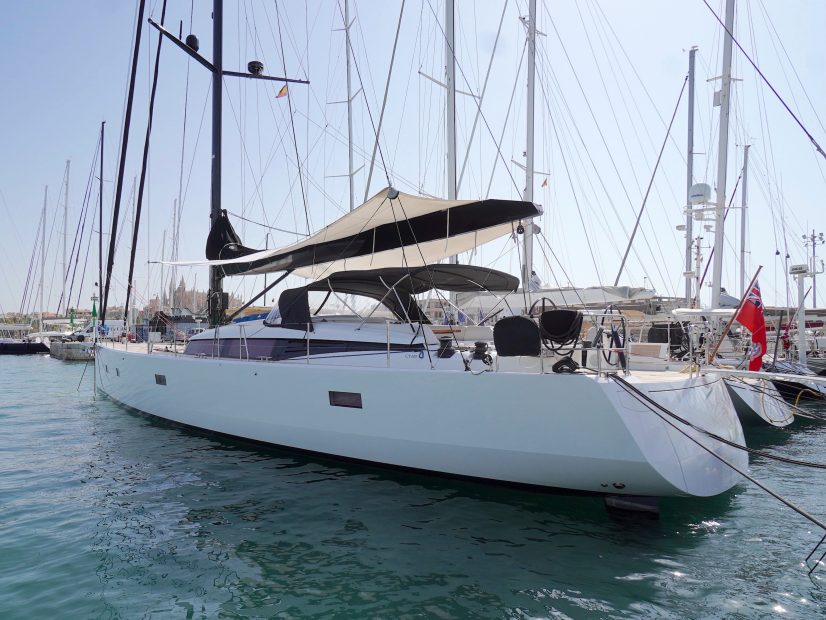

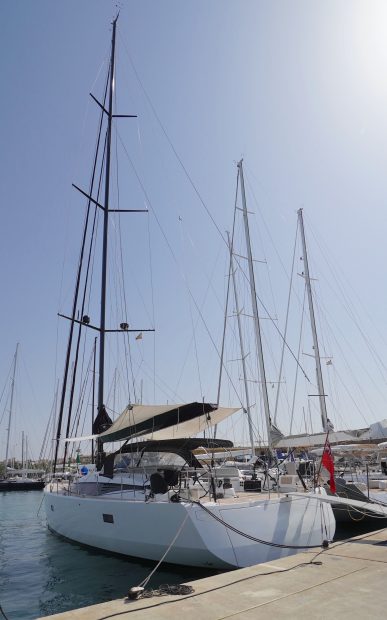

HULL

• Hull construction in vacuum-infused sandwich fiberglass.
• Hull finished in white gelcoat.
• Carbon bowsprit.
• Carbon fiber-reinforced deck beam shelf and deck beams.
• Integrated hull windows.
• Cast iron 3.00m draft fin keel with lead bulb – weight approx. 15.000kg.
• Twin rudders constructed in composite with aluminum stocks.
• Boarding ladder.
• Underwater lights.

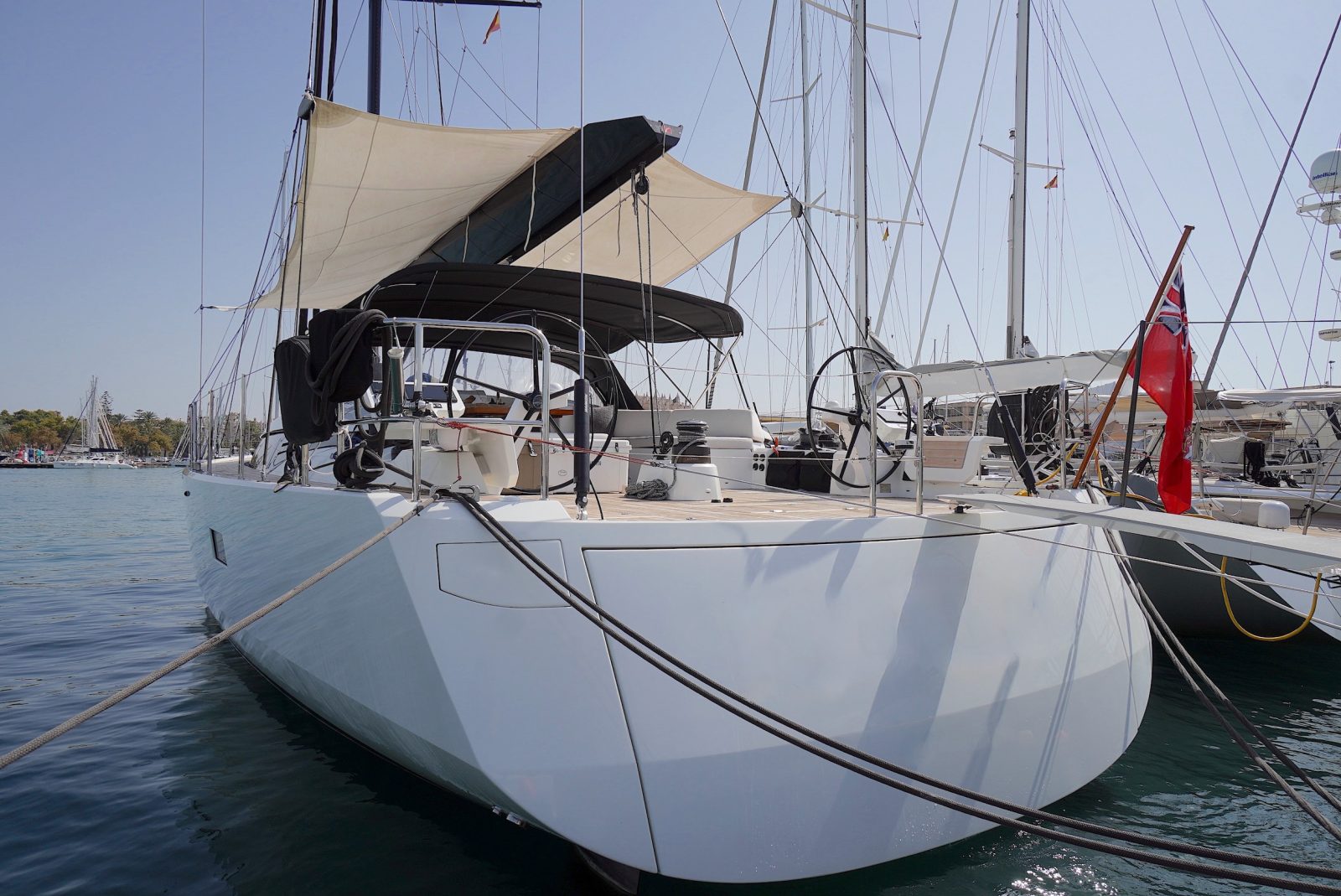

GARAGE

• Hydraulic opening bathing platform with access to tender garage.
• The opening bathing platform is operated by two hydraulic cylinders and a 24v hydraulic pump.
• Access stairs automatically deployed when bathing platform is being opened.
• Teak on bathing platform.
• Bathing ladder incorporated into the platform.
• Watertight hatch for access to stern thruster.
• Stowage locker at starboard side.
• Stern shower.

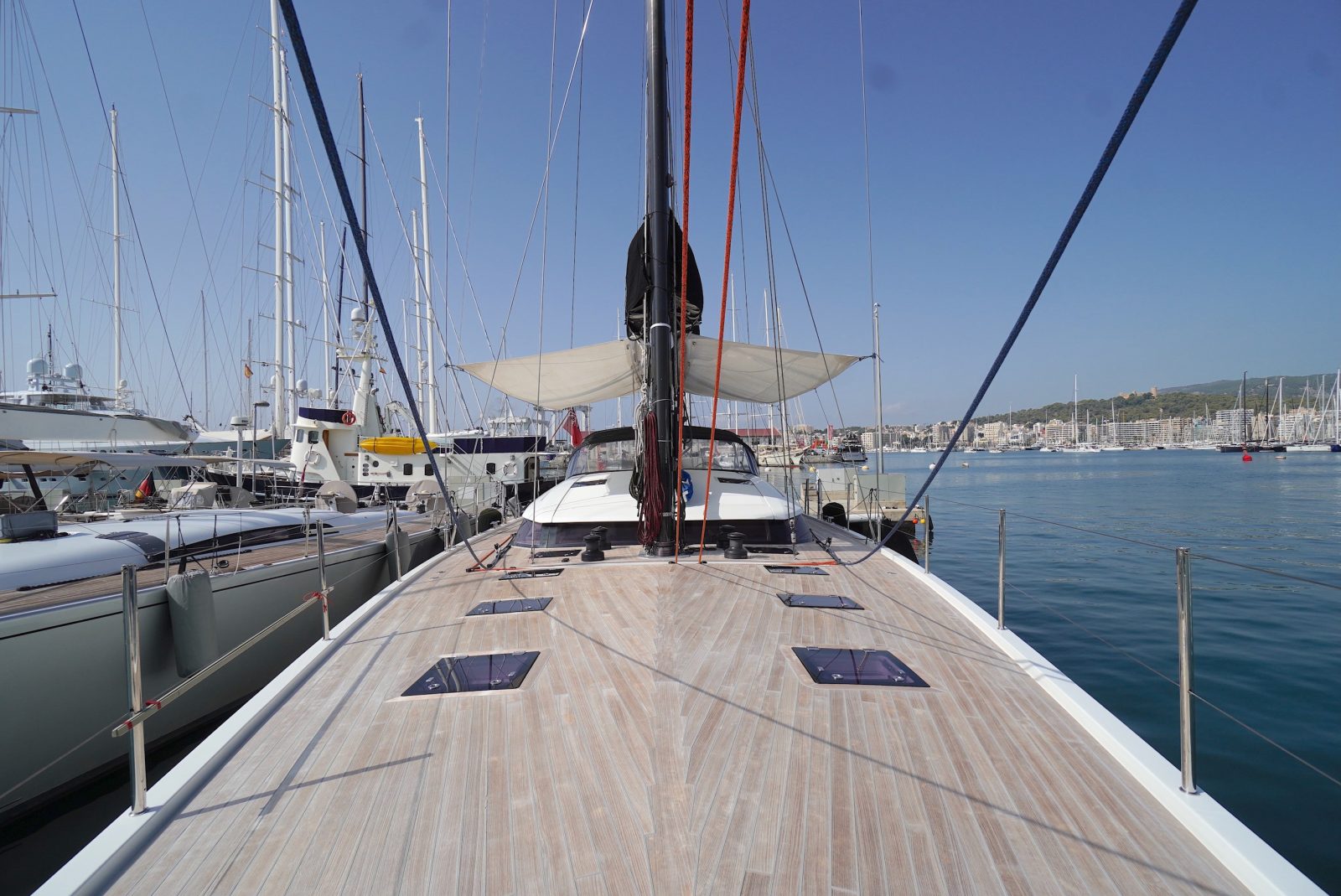

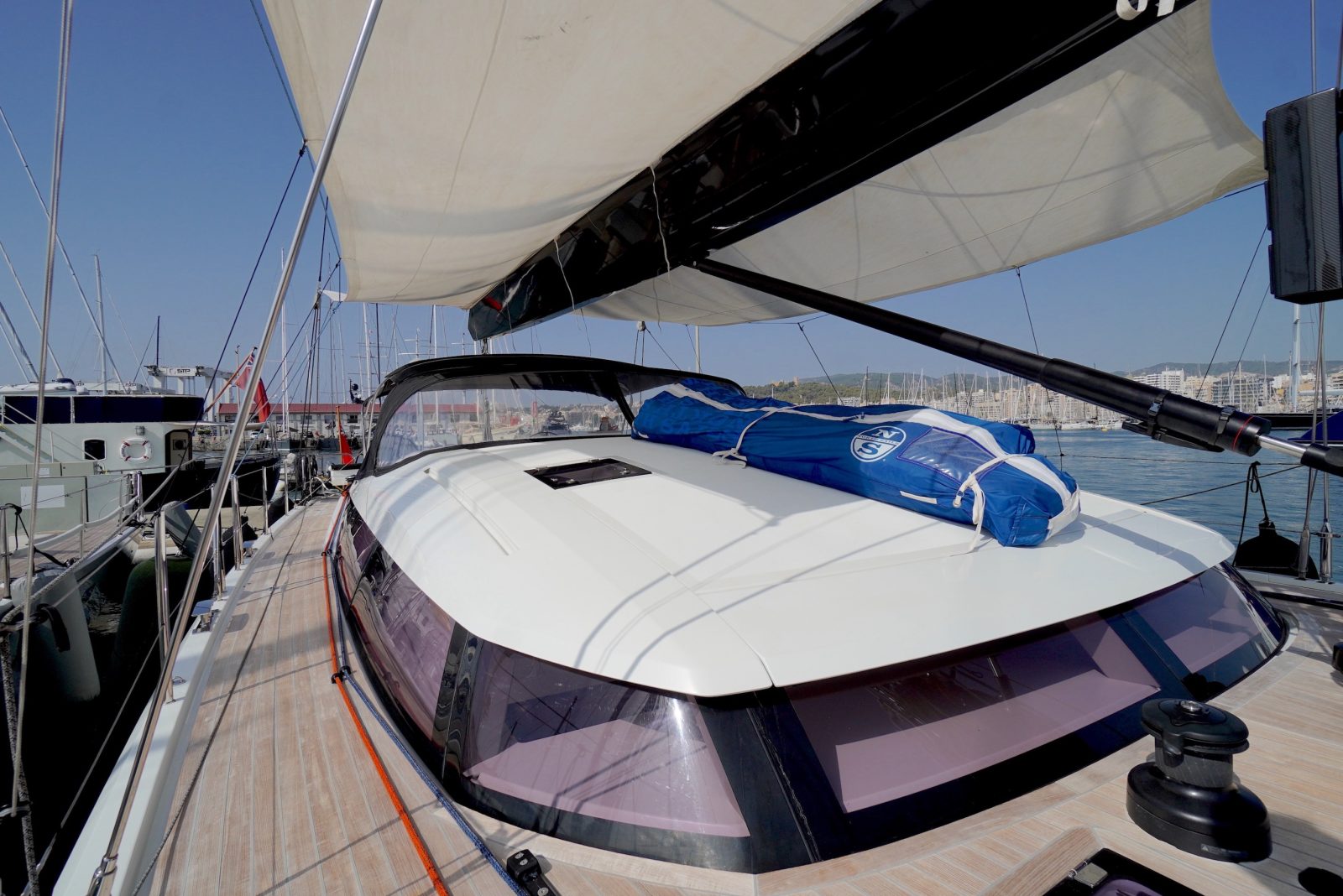

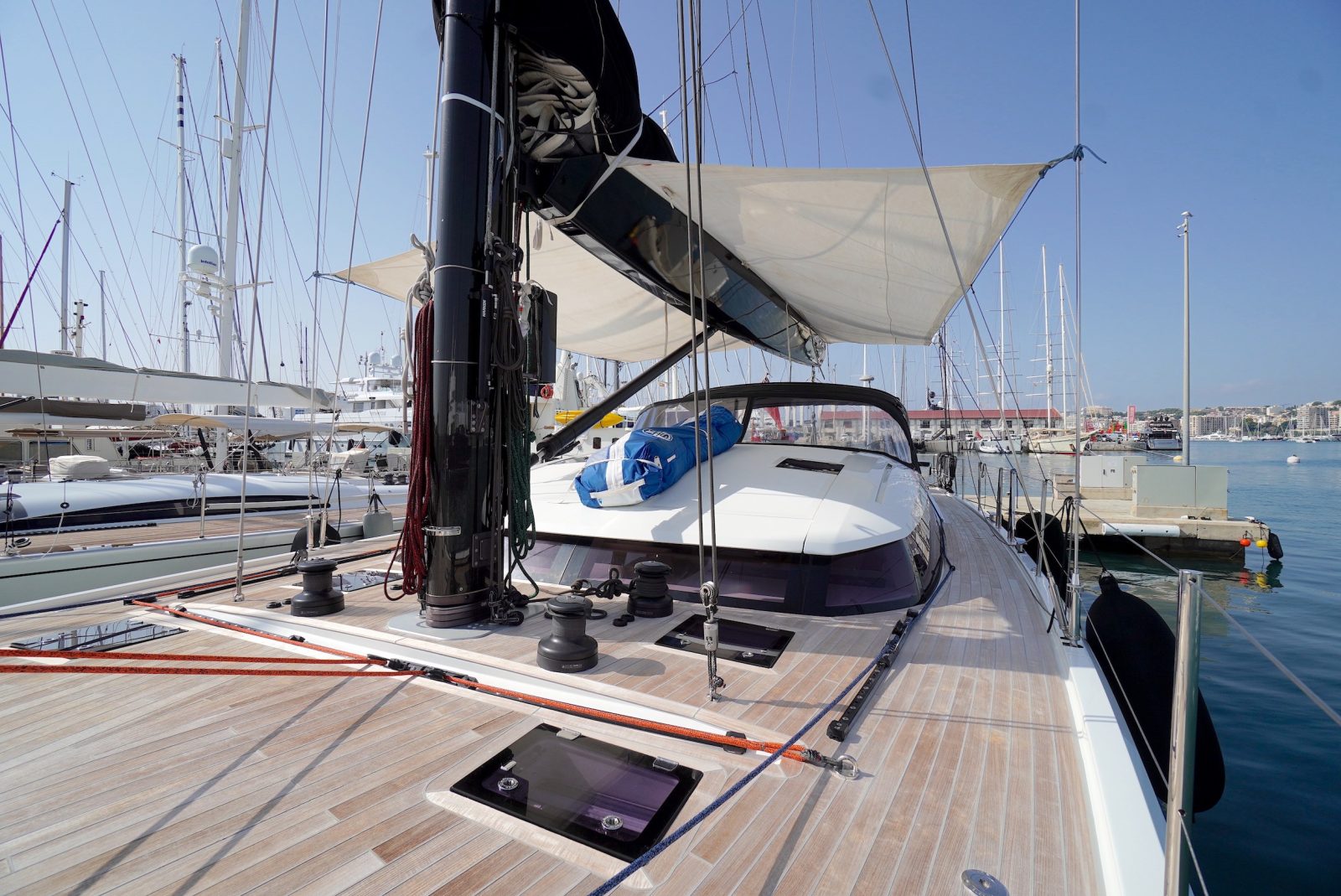

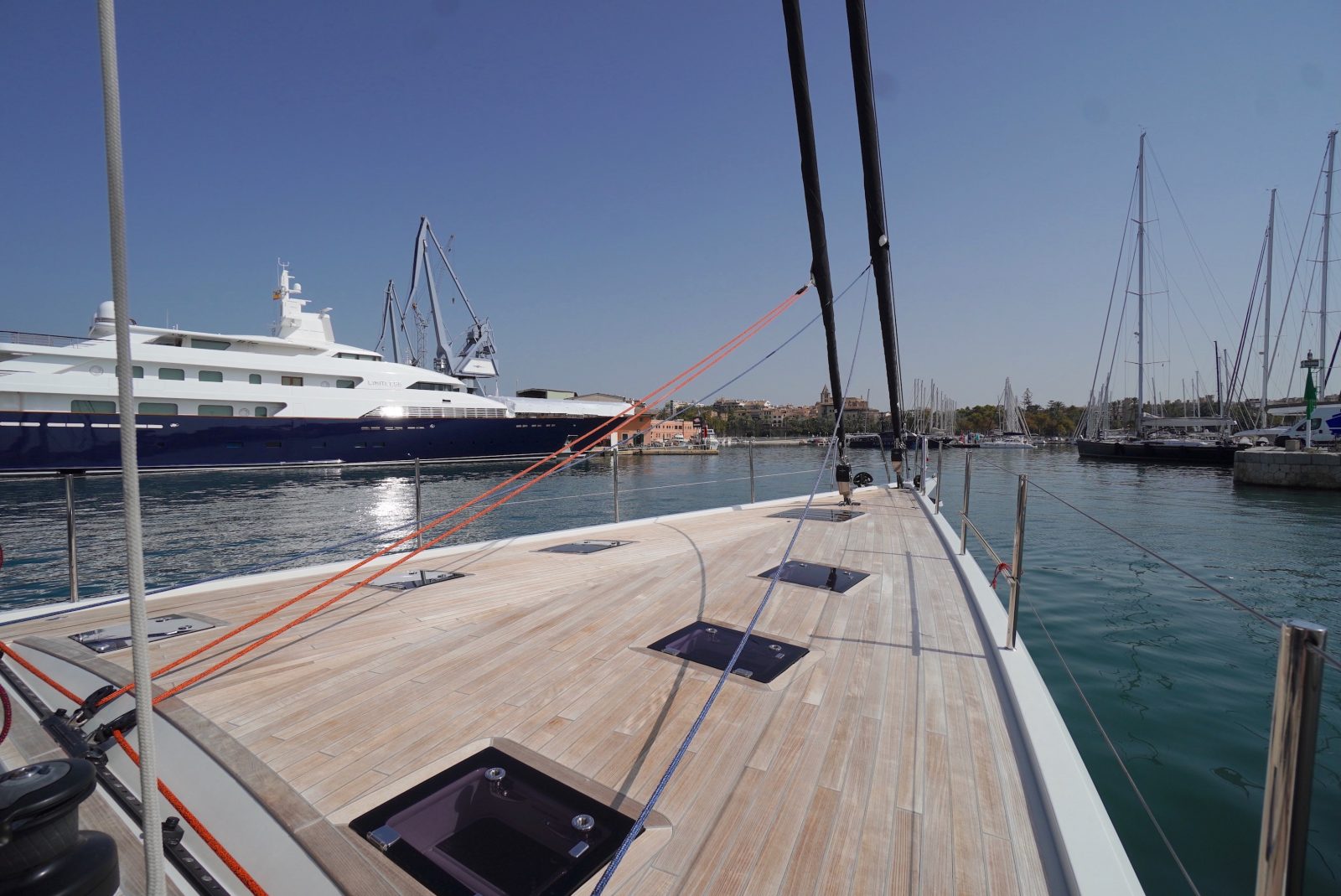

DECK

• Deck construction in vacuum-infused sandwich polyester.
• White gelcoat topsides.
• Teak deck with grey caulking.
• HARKEN blocks, cars and tracks.
• HARKEN self-tacking jib track.
• HARKEN genoa sheet tracks.
• 10 x LEWMAR flush deck hatches.
• 1 x Deck hatch (80cm x 80cm) in PMMA for access to crew cabin in forepeak.
• Deck hatches fitted with mosquito screens and opaque blinds.

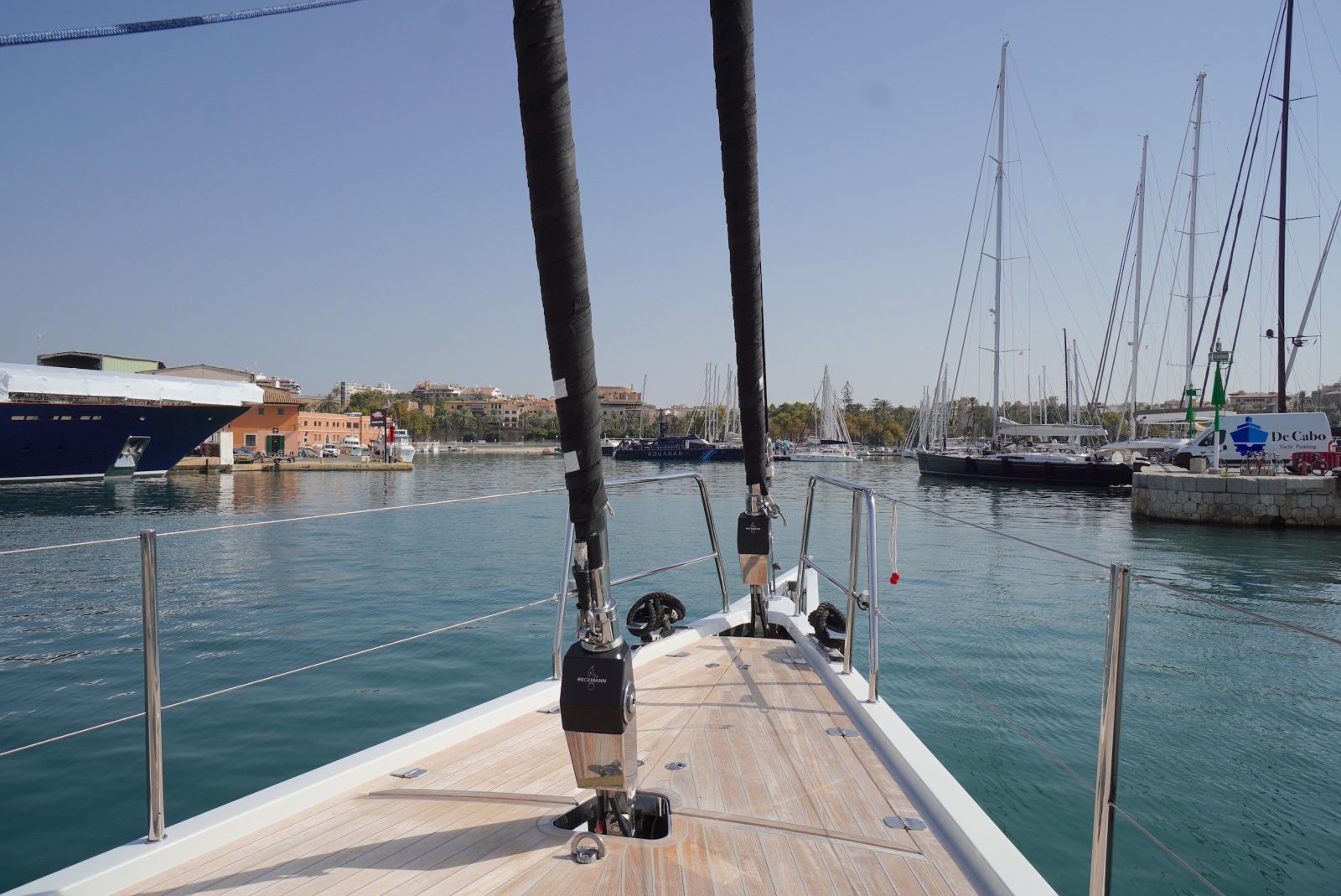

• LEWMAR 24v electric anchor windlass – installed under deck in the anchor locker.
• Carbon bowsprit – Anchor installed under bowsprit.
• Galvanized anchor with 80m chain.

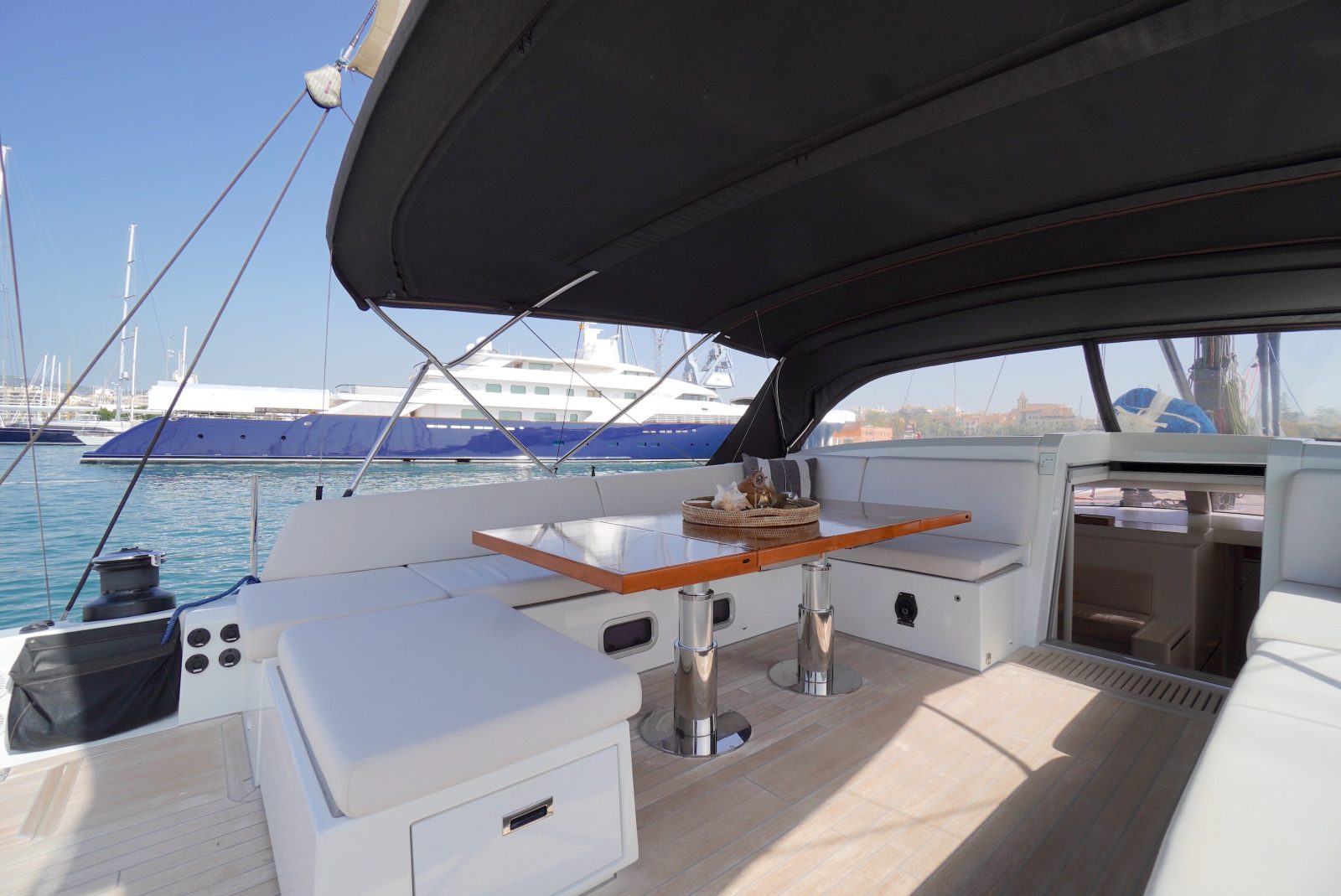

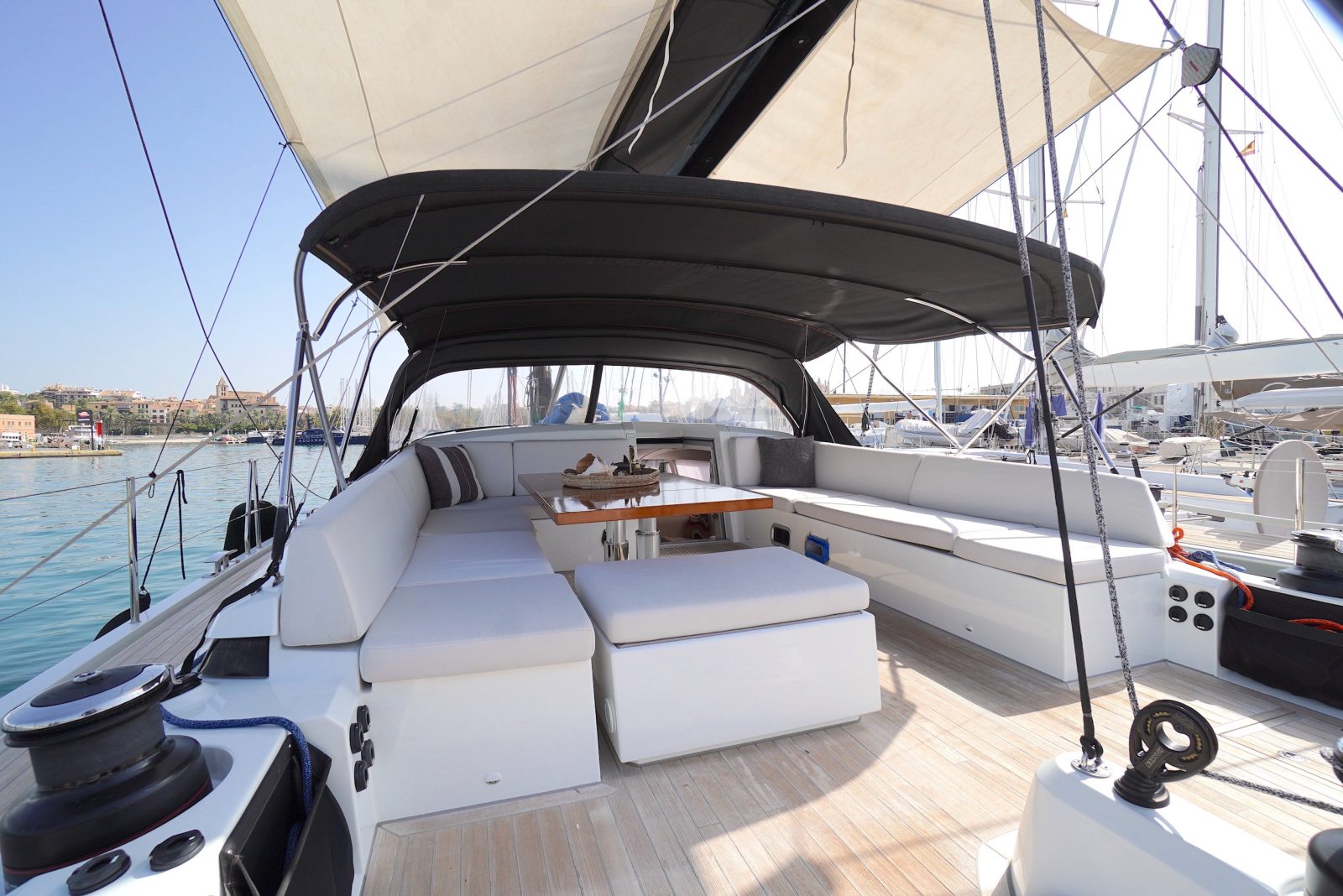

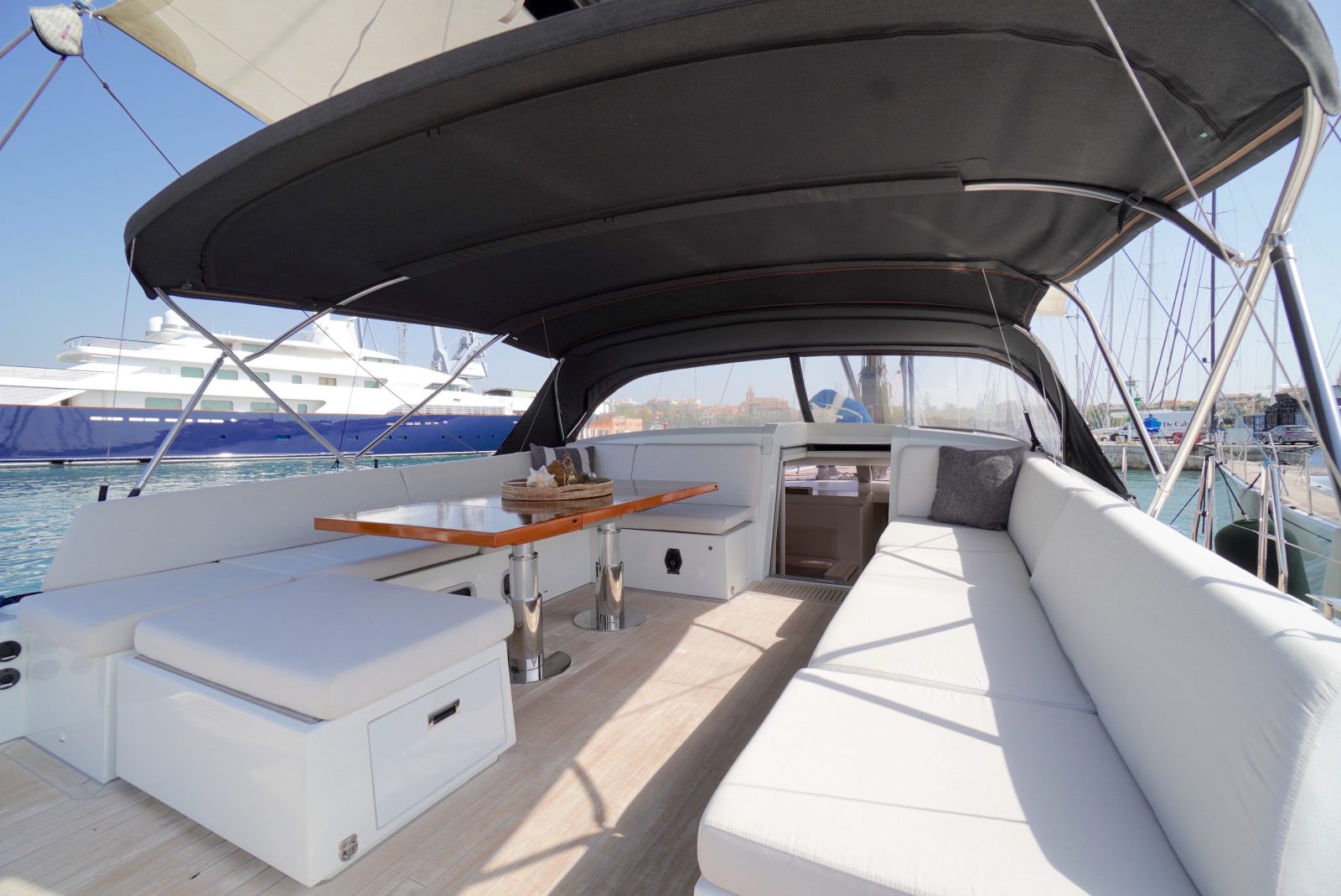

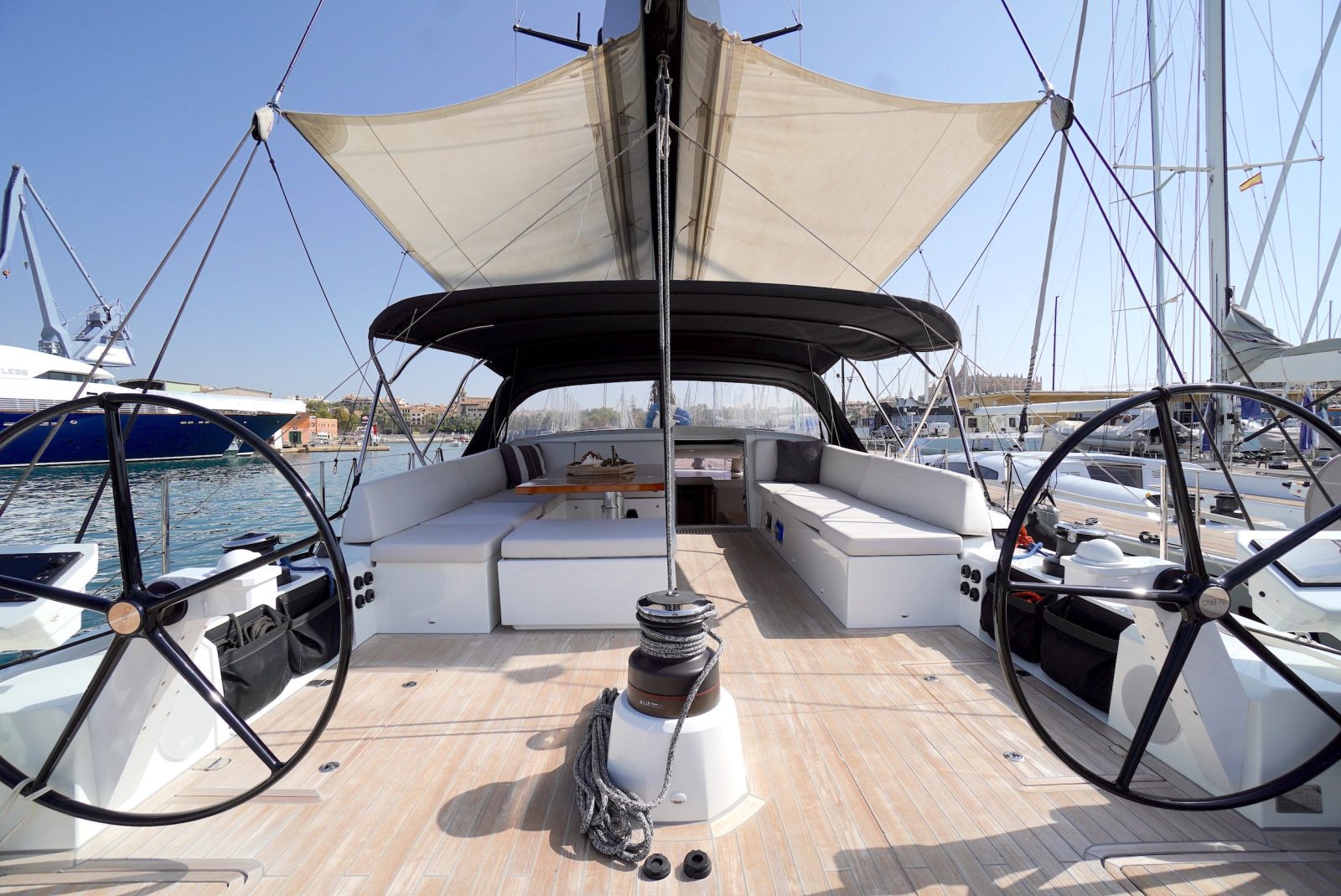

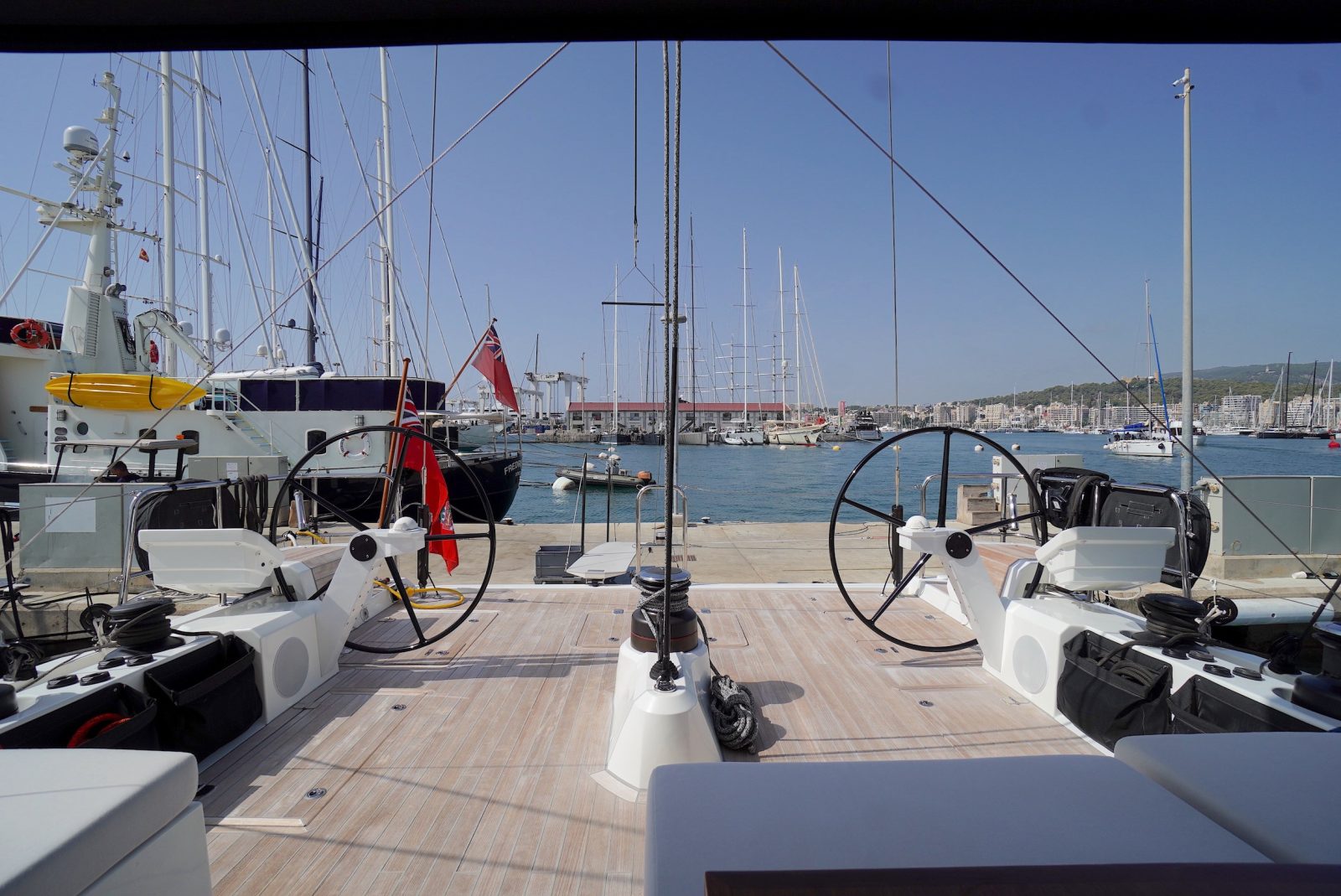

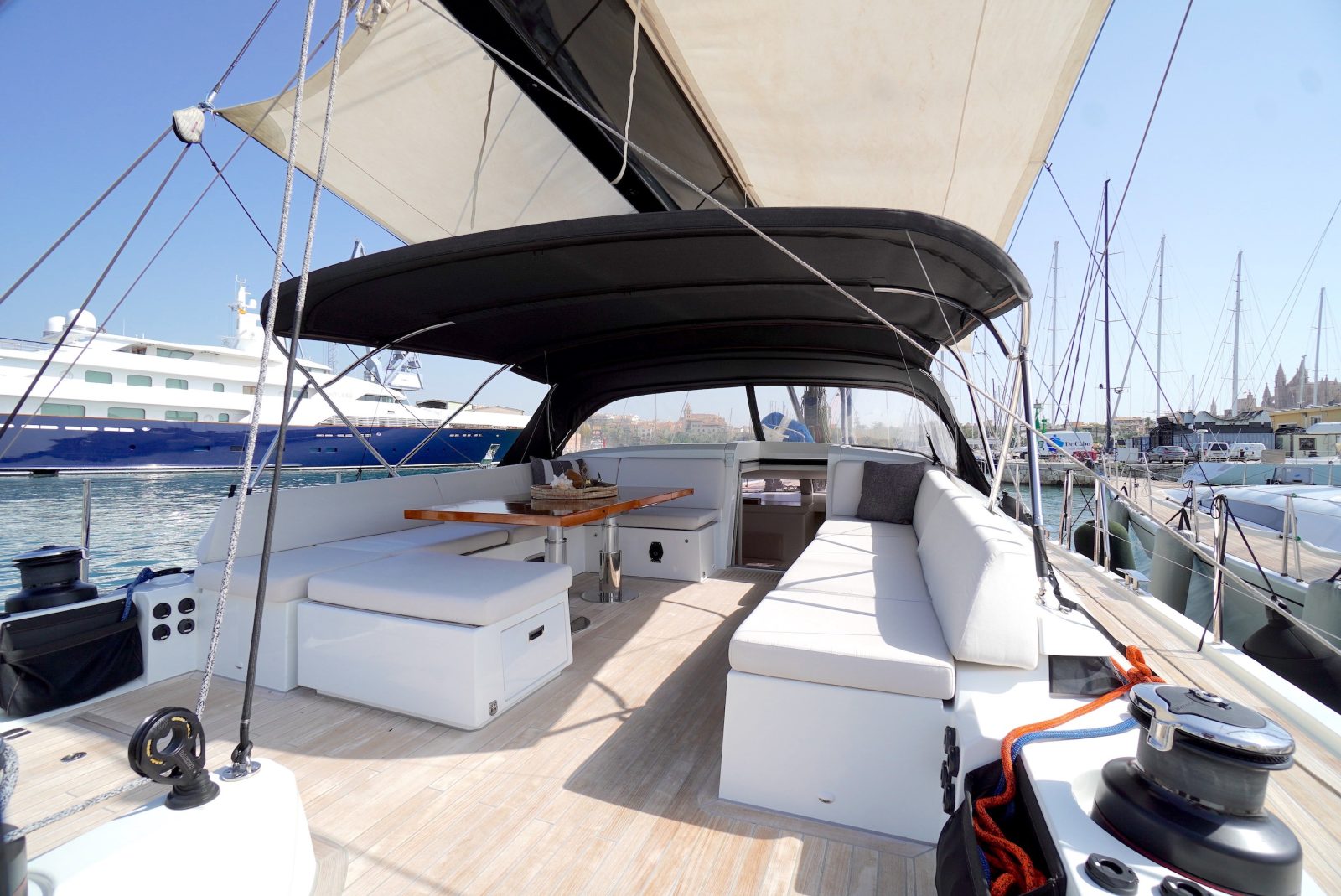

COCKPIT

• Teak floor with grey caulking.
• Teak on helm seats.

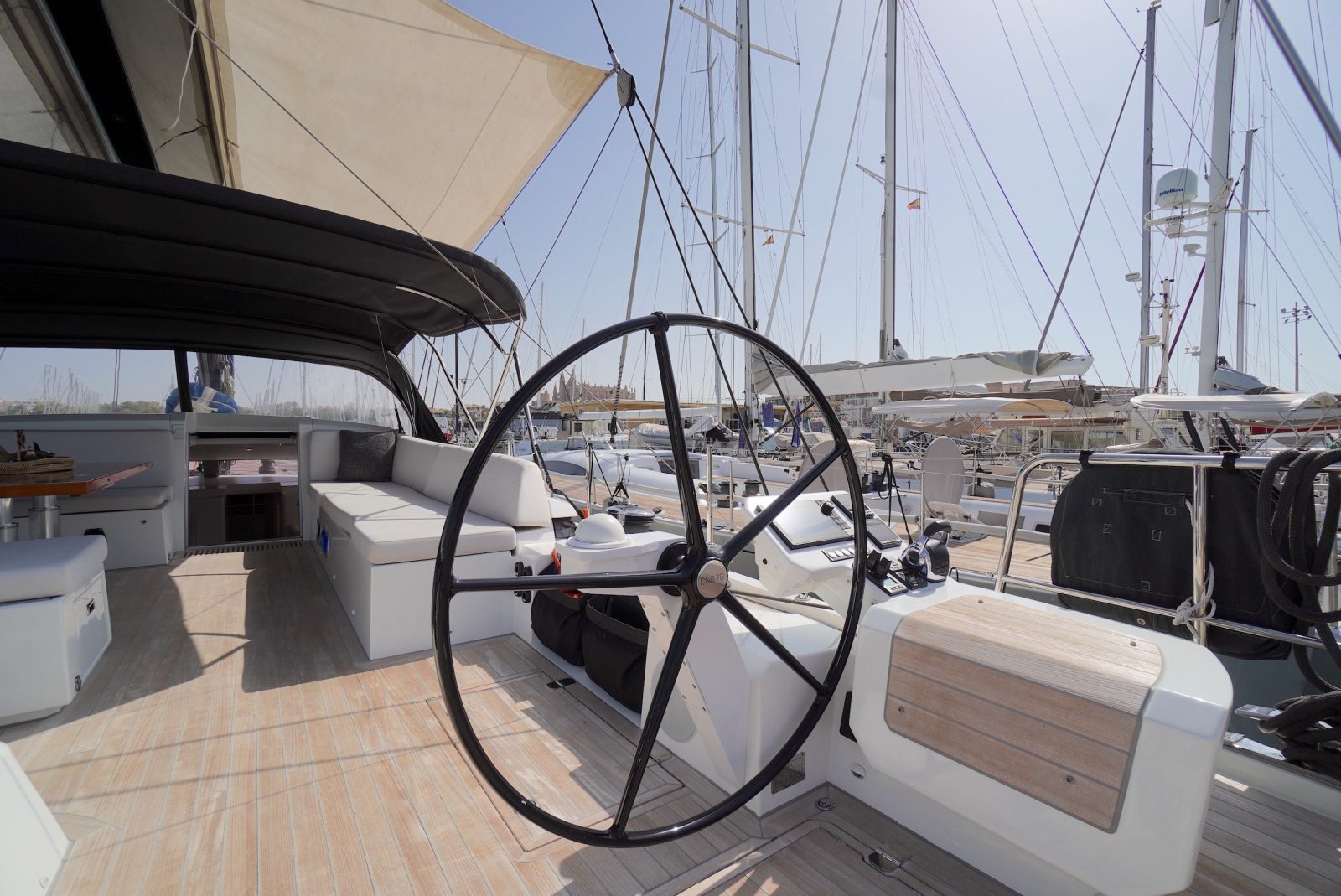

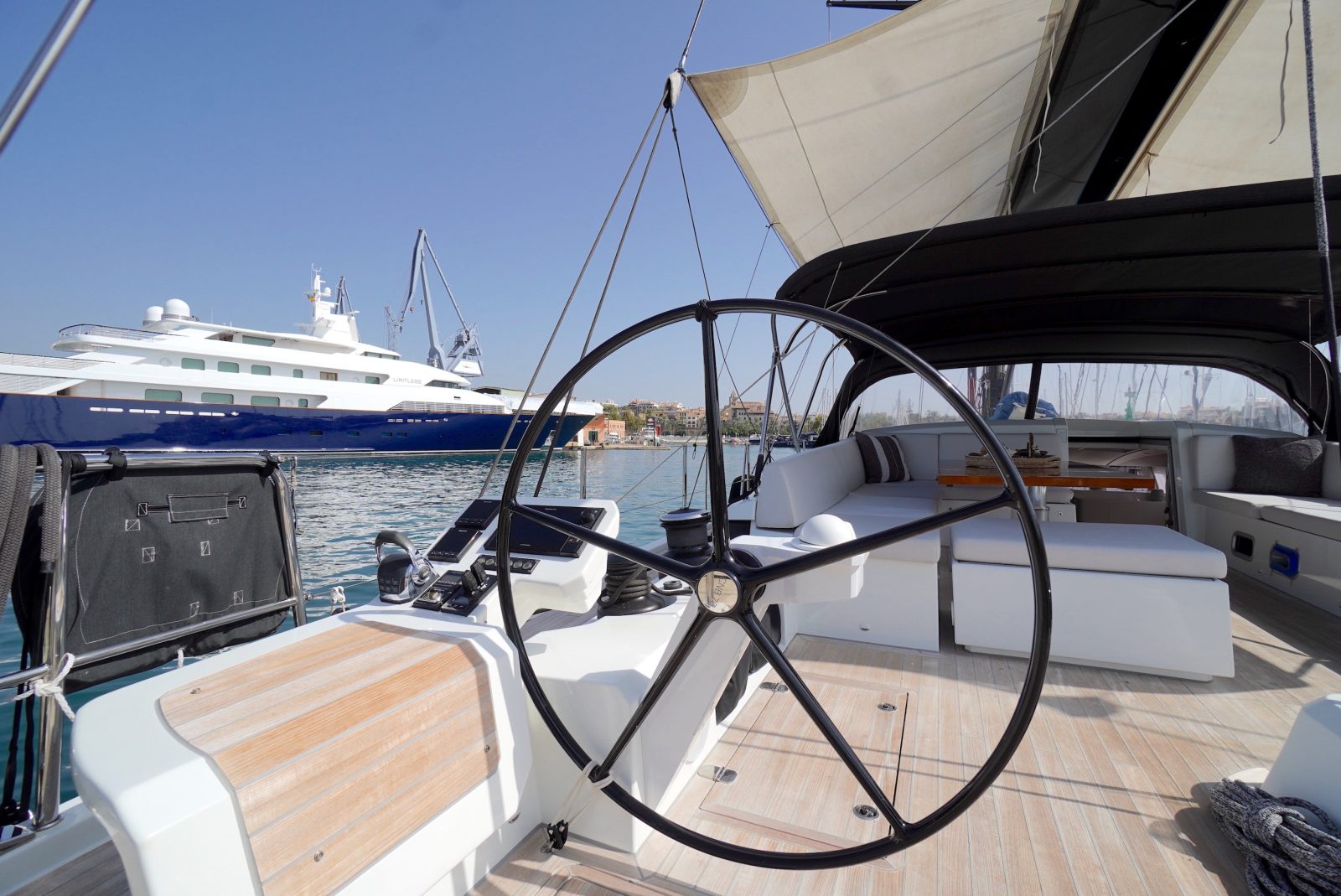

• Twin steering stations with 1.100mm carbon steering wheels.
• Bimini top on sliding rails in dark grey fabric.
• Cockpit cushions in light grey fabric.
• Telescopic cockpit table in plain teak, mounted on two electric rams and can be converted into a lower table or into a sun-lounge bed (including cushion).
• 2 x Teak cockpit hatches for access to the large aft lazarettes.
• 1 x Teak cockpit hatch for access to garage.
• 2 x Teak cockpit hatches.
• 2 x LEWMAR flush hatches for access to galley and port aft cabin.
• Opening stern guard rails.
• Cockpit fridge 25L.
• Removable carbon gangway.

TENDER AND TOYS

• WILLIAMS 380 Turbo jet tender (fully serviced June 2023)
• 2 x Indiana stand-up paddleboards
• 2 x “Towables”
• 1 x BOWER Jr. dive compressor

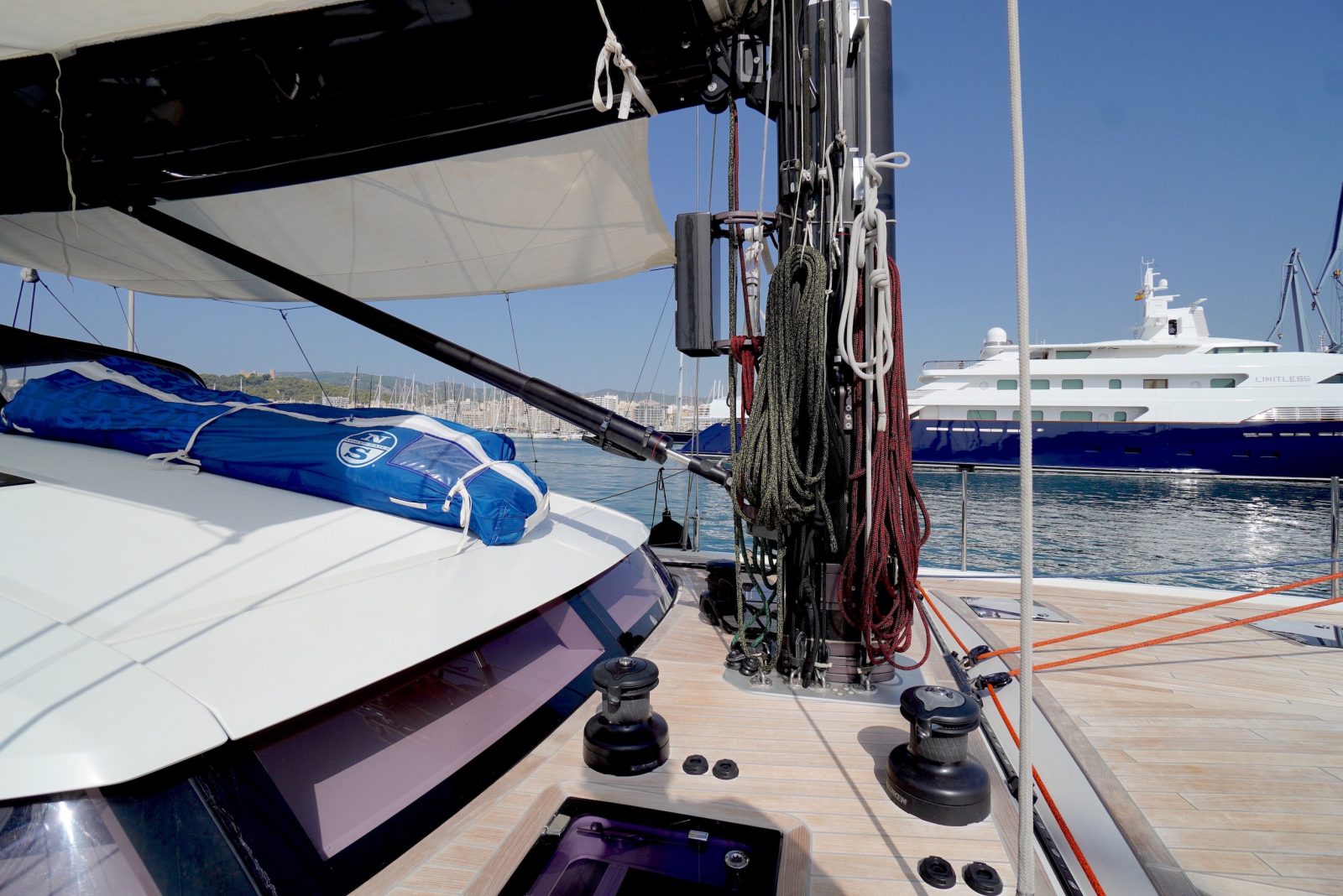

MAST & RIGGING

• HALL SPARS carbon mast with carbon Park Avenue boom (new boom October 2022)
• Triple set of spreaders.
• HARKEN hydraulic boomvang.
• ROD standing rigging.
• RECKMANN hydraulic mainsail furler.
• RECKMANN hydraulic genoa furler.
• RECKMANN hydraulic staysail furler.
• Running backstays.
• Running rigging serviced June 2023 (main-, genoa- and staysail sheets recovered/ new reef lines/all lines cleaned).

WINCHES

• 2 x HARKEN STE80 electric primary winches in cockpit
• 1 x HARKEN STE80 electric mainsheet winch in cockpit
• 2 x HARKEN STE70 electric secondary winches in cockpit
• 3 x HARKEN STE70 electric halyard/reefing winches at mast
• 1 x HARKEN ST70 manual halyard/reefing winch at mast

SAILS

• Sails fully serviced by NORTH SAILS in June 2023
• 1 x NORTH 3Di fully battened mainsail
• 1 x NORTH 3Di furling genoa
• 1 x NORTH 3Di furling staysail
• 1 x NORTH Code-0

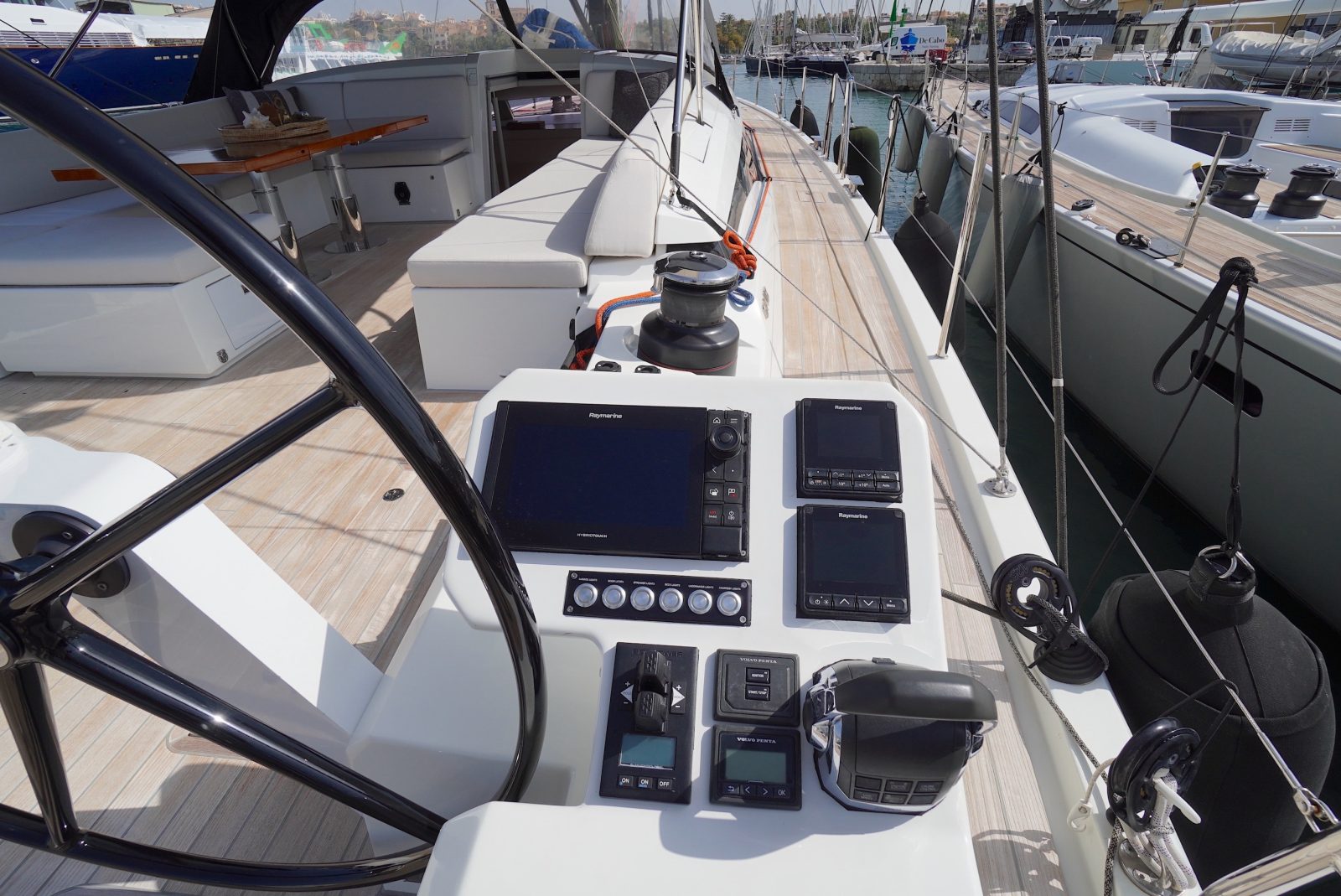

NAVIGATION INSTRUMENTS

• 1 x AXIOM 19XL chart plotter at chart table.

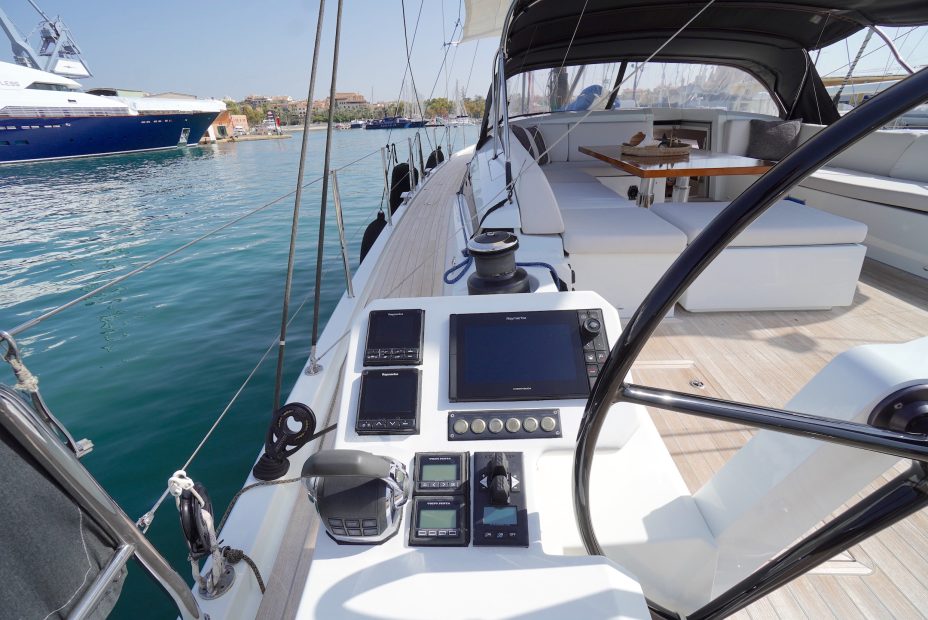

• 2 x AXIOM chart plotters – One at each cockpit helm station.
• RAYMARINE Navigation Pack, displayed on all chart plotters.
• RAYMARINE multi-function display (depth, wind, speed, etc).
• RAYMARINE radar.
• RAYMARINE autopilot.
• LECOMBLE & SCHMITT autopilot – Located at each helm station and inside navigation station.
• Remote autopilot smart controller.
• RAYMARINE GPS.
• Hand-held GPS.
• NAVIONICS, Time zero plotter.
• 2 x Magnetic compass.
• AIS 700 (sender/receiver).

COMMUNICATION SYSTEMS

• V-SAT satellite TV system
• V -SAT telephone system
• RAYMARINE SSB
• 3 x RAYMARINE VHF (1 x fixed, 2 x wireless hand-held)
• HP computer
• HP printer

ENGINE & THRUSTERS

• VOLVO PENTA D4 180hp engine with 3.510 running hours (August 2023).
• Annual service by Volvo completed June 2023.
• VOLVO PENTA gearbox.
• Shaft drive with folding propeller.
• SIDEPOWER bow thruster (fully serviced June 2023).
• SIDEPOWER stern thruster (fully serviced June 2023).

ELECTRIC INSTALLATIONS

• ONAN CUMMINS generator 17.5 KW with 7.607 running hours (August 2023), professional 8.000 hours service done in Palma in June 2023.
• Electrical panel 12V/24V/230V
• 1 x MASTERVOLT Inverter 24V/230V/2500W
• 2 x Battery charger 24V
• 24V Lighting throughout

BATTERIES

• 4 x MASTERVOLT Lithium Ion 24V service batteries
• 1 x OPTIMA 12v engine start battery
• 1 x OPTIMA 12v generator start battery
• 1 x OPTIMA 12v bow thruster battery
• 1 x OPTIMA 12v stern thruster battery

PLUMBING

• RULEMATIC 500 bilge system.
• 4 x JABSCO Puppy pumps for main compartments with RULEMATIC individual float switches throughout which activate the system as necessary.
• Roving bilge pump – Can be connected to power socket.
• SEA RECOVERY watermaker 280L/hour (fully serviced June 2023).
• CANTALUPI fresh water system 220V pump; (2) 24V JABSCO back up pumps.
• 4 x VACUFLUSH fresh water flush toilets.

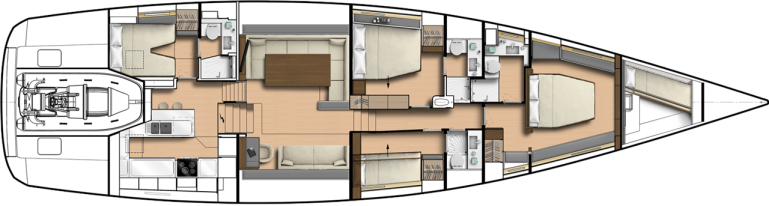

INTERIOR

• Customized white painted bright interior from new with wooden floors
• TERMODINAMICA reverse cycle air-conditioning 72000 BTU (fully serviced July 2023).
• Four cabins, each with en-suite head compartment
• SONOS stereo and JBL speakers
• PIONEER DVD-player

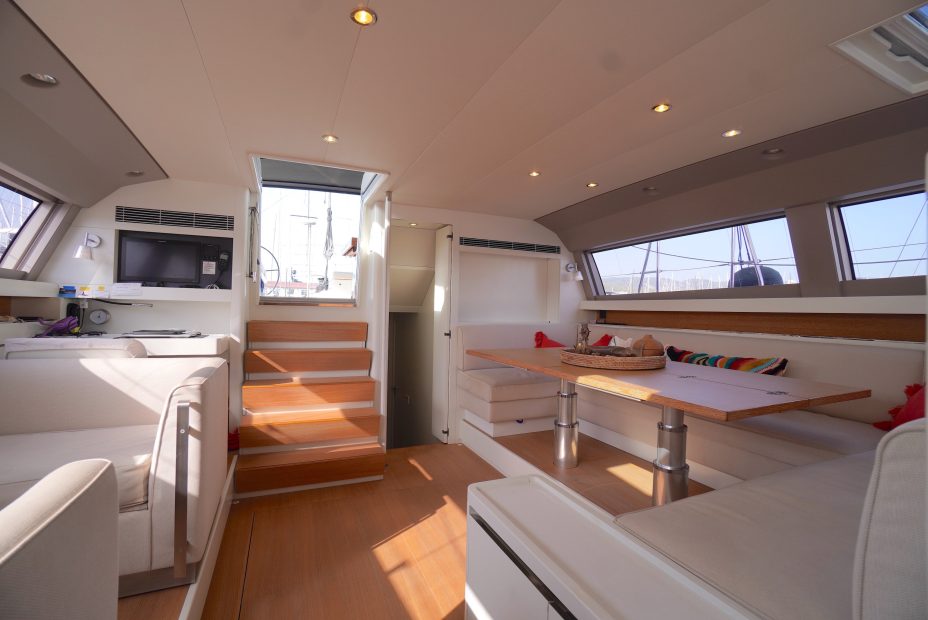

SALOON

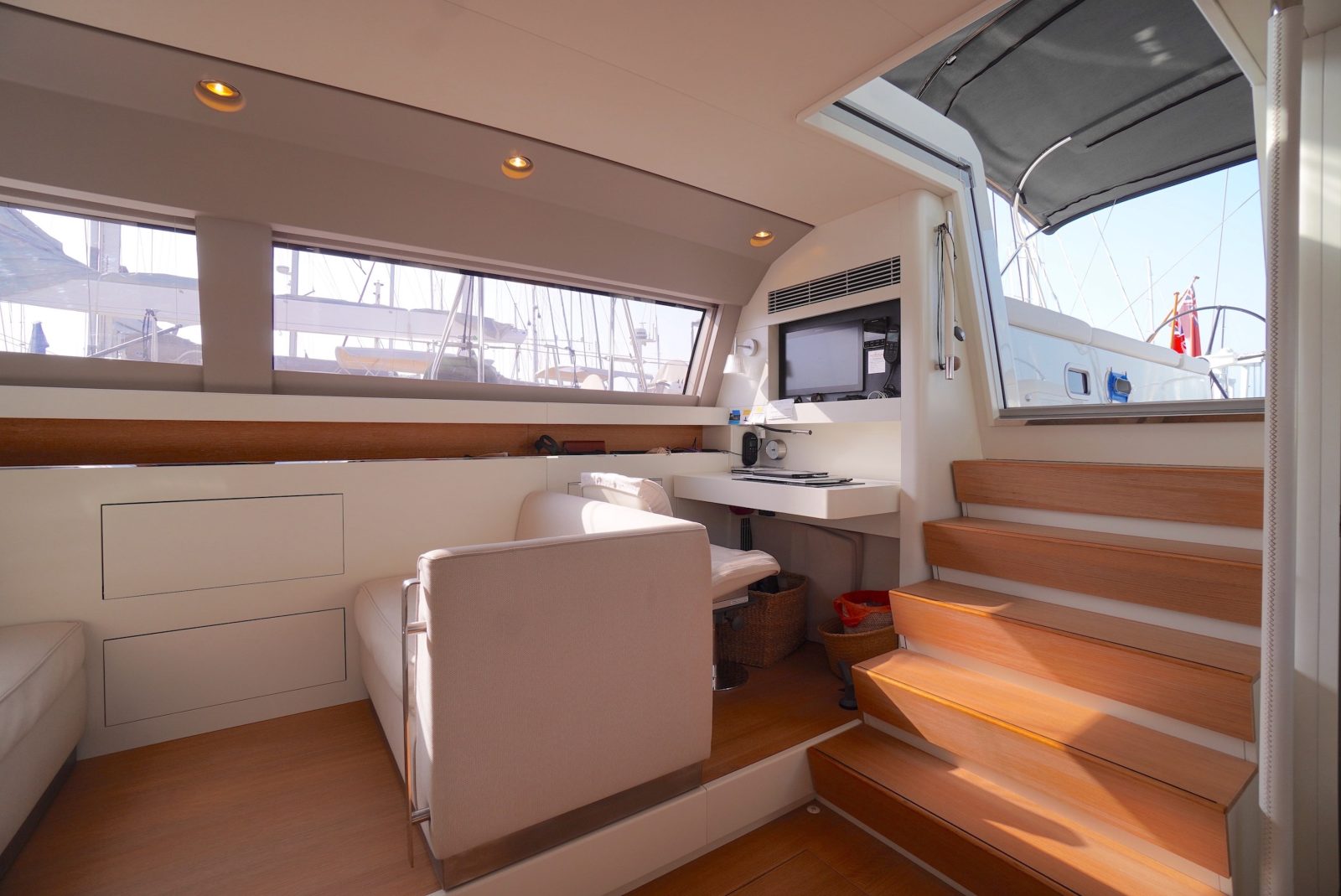

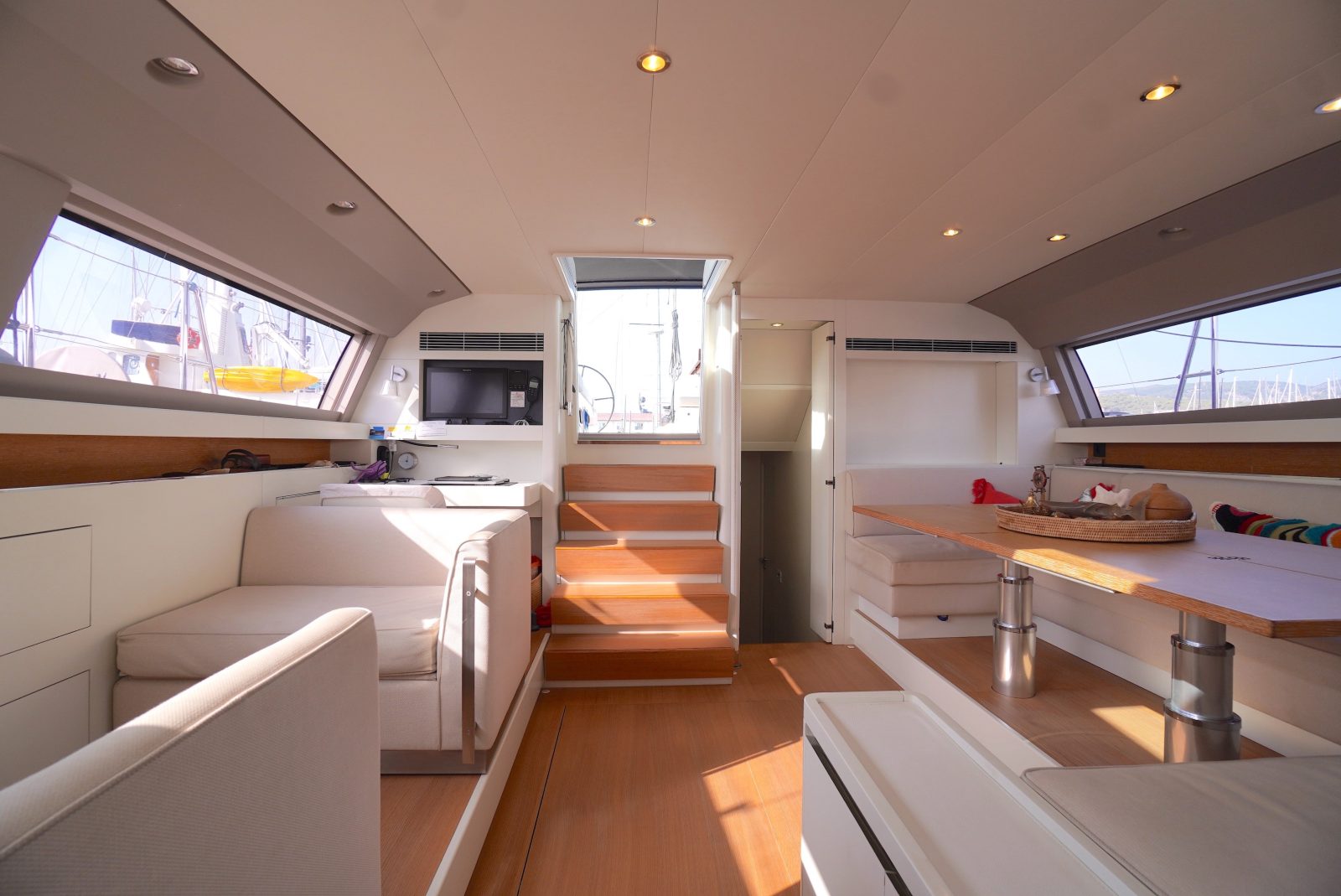

• The saloon is situated beneath the deckhouse and comprises the navigation station, a sofa bed and a lounge/dining area.
• Saloon upholstery in light grey fabric.
• The light-filled saloon provides a magnificent panoramic view of the surroundings.
• Direct and indirect lighting with reading lights and ceiling lights.
• Audio system integrated in saloon and cockpit.
• Night lighting for use at night.
• Stowage areas behind the seat backs and along the outboard shelving.

Navigation station – Starboard:

• Chart tables with chart stowage.
• 12v & 230v sockets.

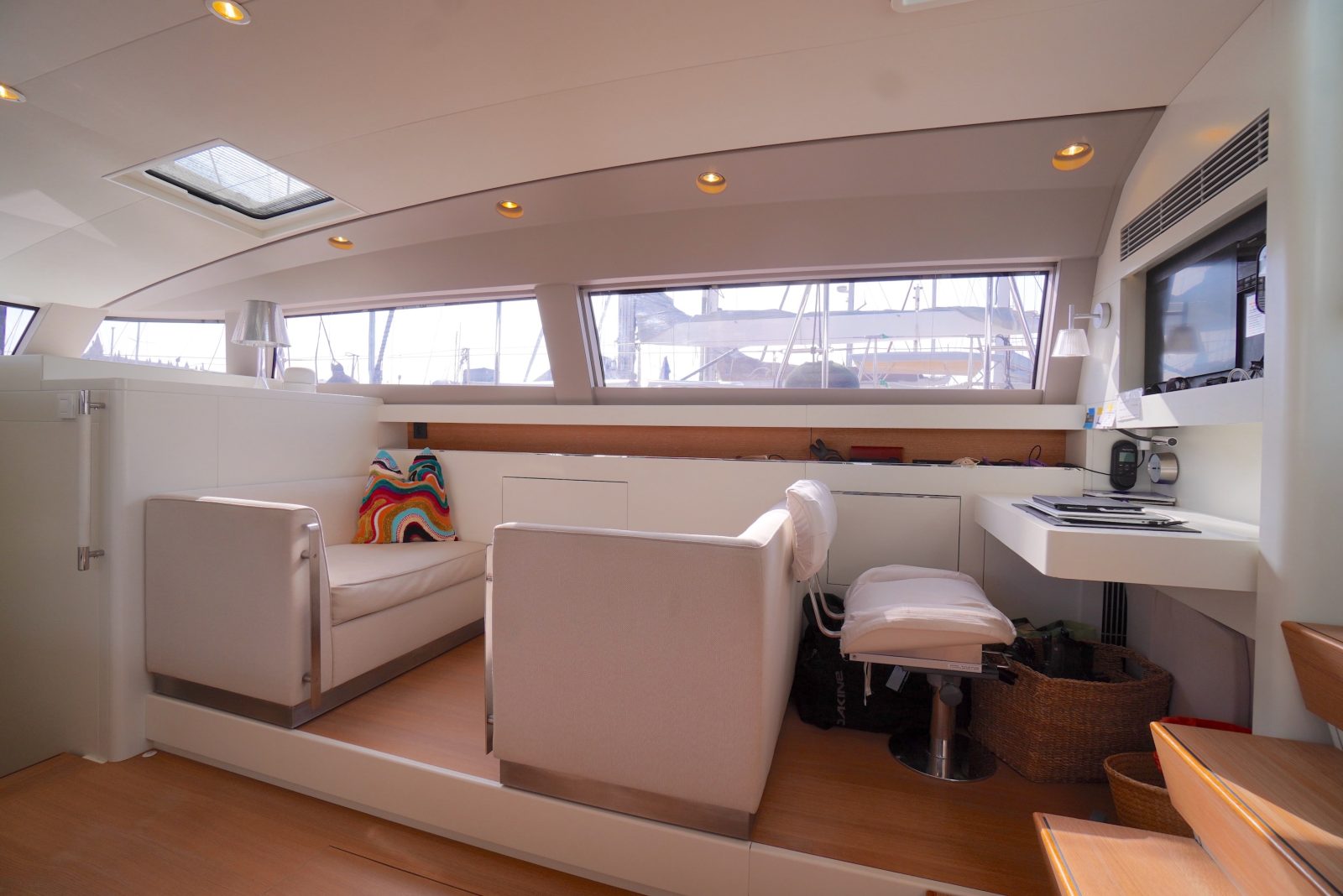

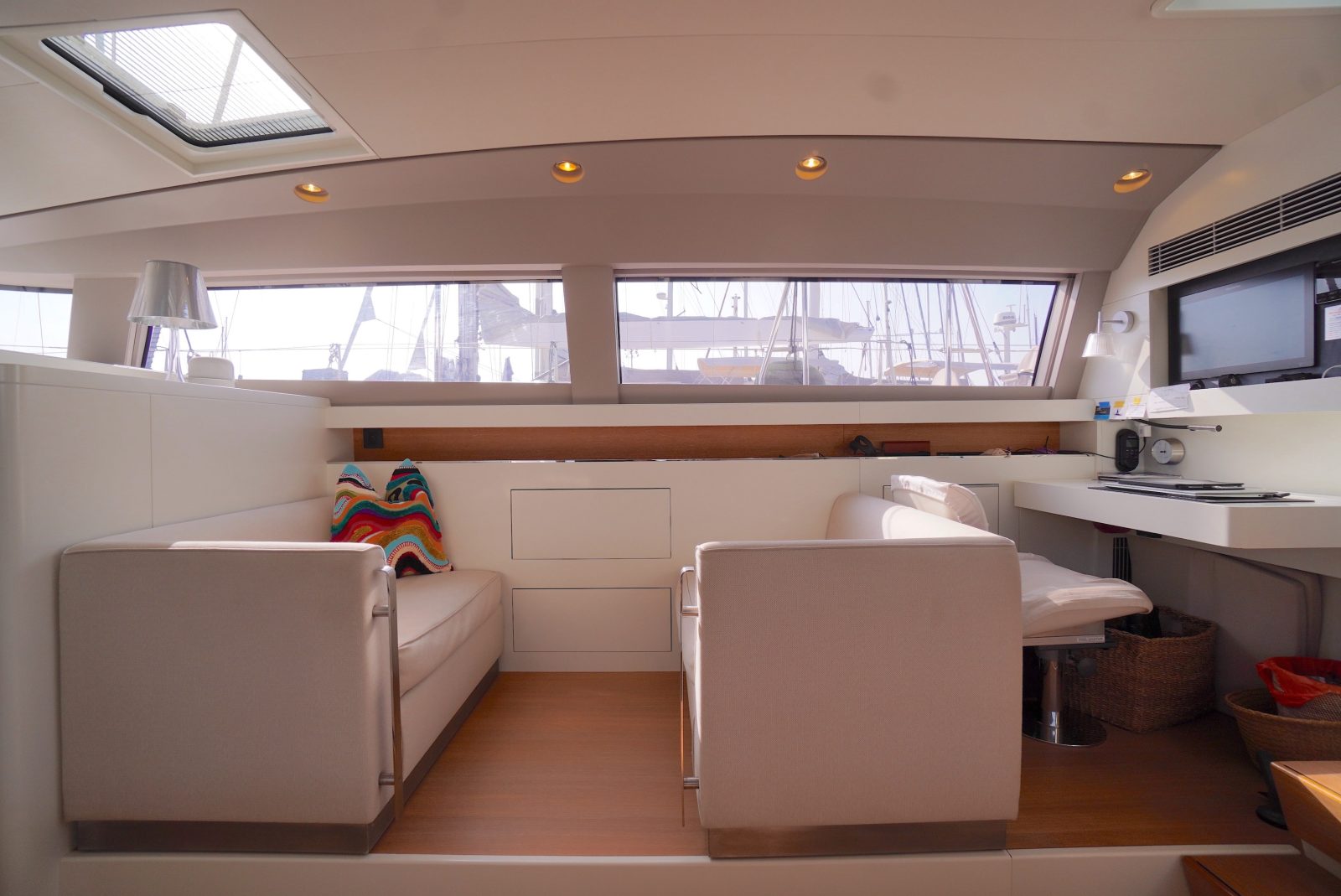

Lounge area – Starboard:

• Sofa to starboard, easily convertible into two comfortable facing armchairs.
• Retractable bar behind the sofa.

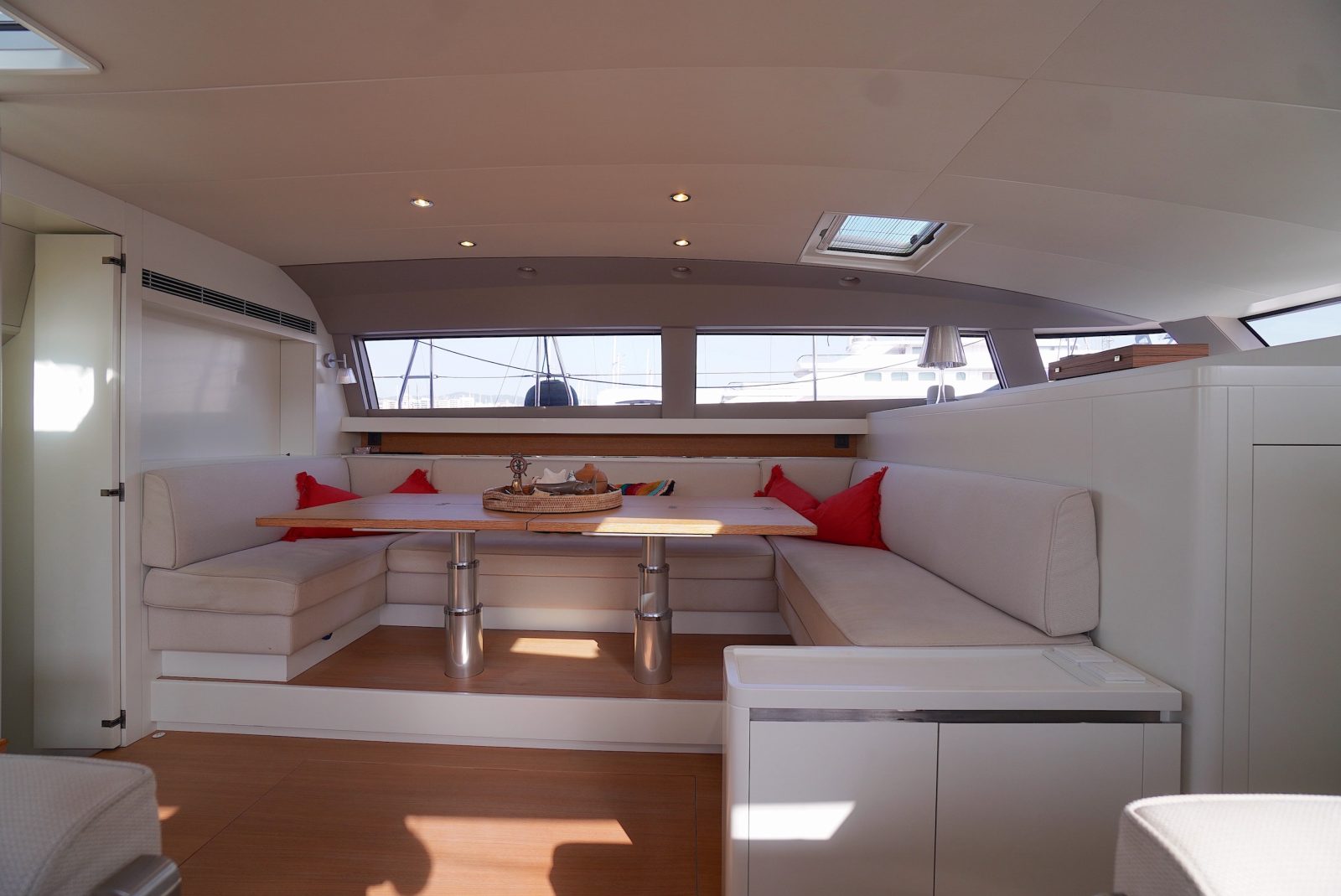

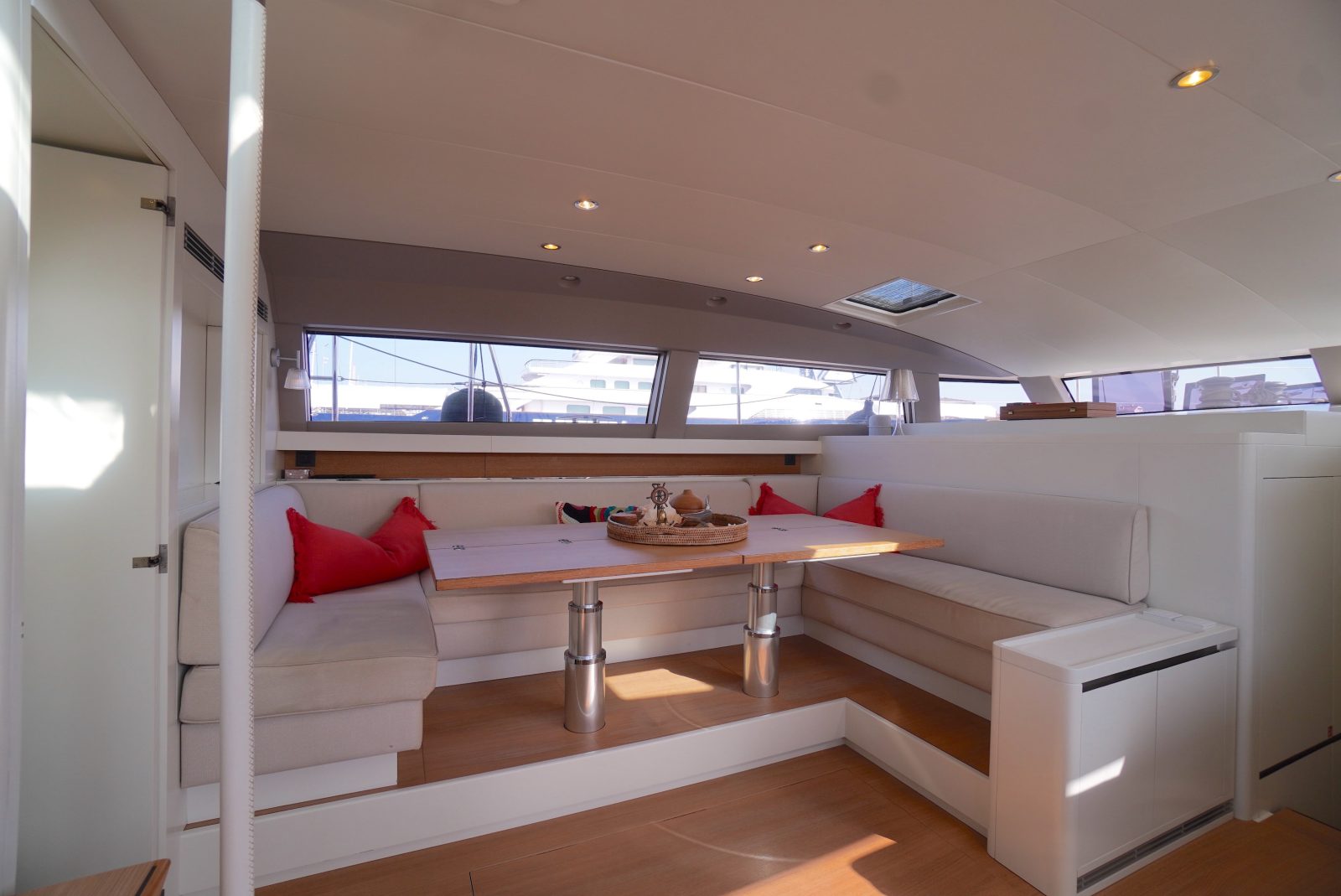

Dining area – Port:

• Large U-shaped settee.
• Telescopic dining /cocktail table, mounted on two electric rams and can be converted to lower table – capable of accommodating 8 people.

GALLEY

• The U-layout galley is located aft at starboard side, five steps down from the saloon, well separated from the saloon and the forward cabins.
• Access to the cockpit through a sliding hatch and a retractable ladder incorporated into the deck-head.
• Ventilation and natural light by a fixed porthole in the hull, two opening ports and an opening hatch leading to the cockpit.
• CORIAN worktop.
• Direct and indirect lighting of work surfaces.
• Breakfast bar and two stools.
• 1 x MIELE 231L refrigerator with 57L freezer compartment.
• 1 x MIELE 104L freezer.
• 1 x WEBASTO 90L freezer.
• 1 x Stainless steel sink with fresh water tap.
• 1 x Microwave oven connected to the inverter.
• 1 x MIELE 4-zone induction stove with extractor hood + electric oven mounted on gimbals.
• MIELE Marine washing machine/dryer 220v, 5kg – integrated in the galley.
• MIELE Marina dishwasher 220v – integrated in the galley.
• Indirect lighting.

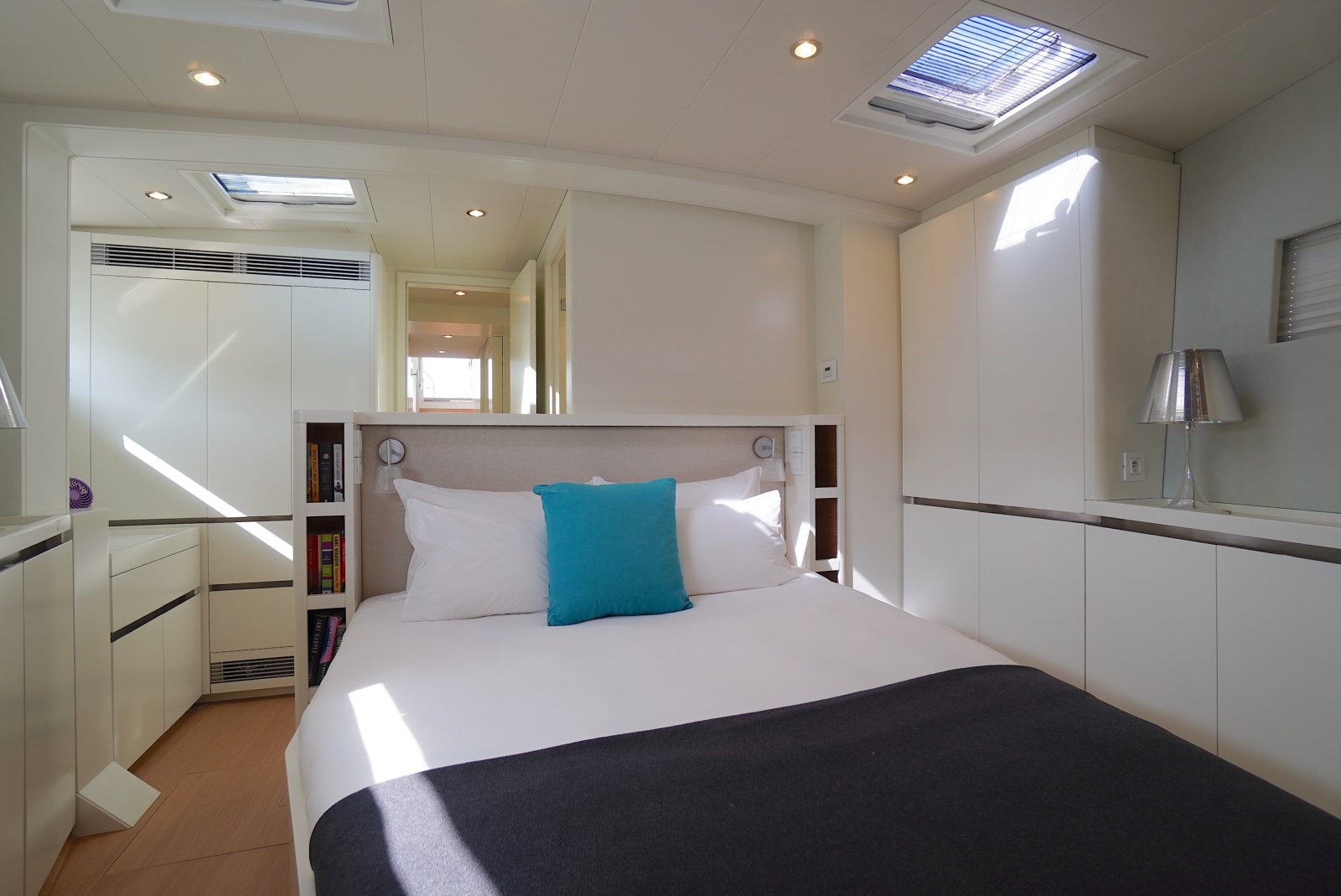

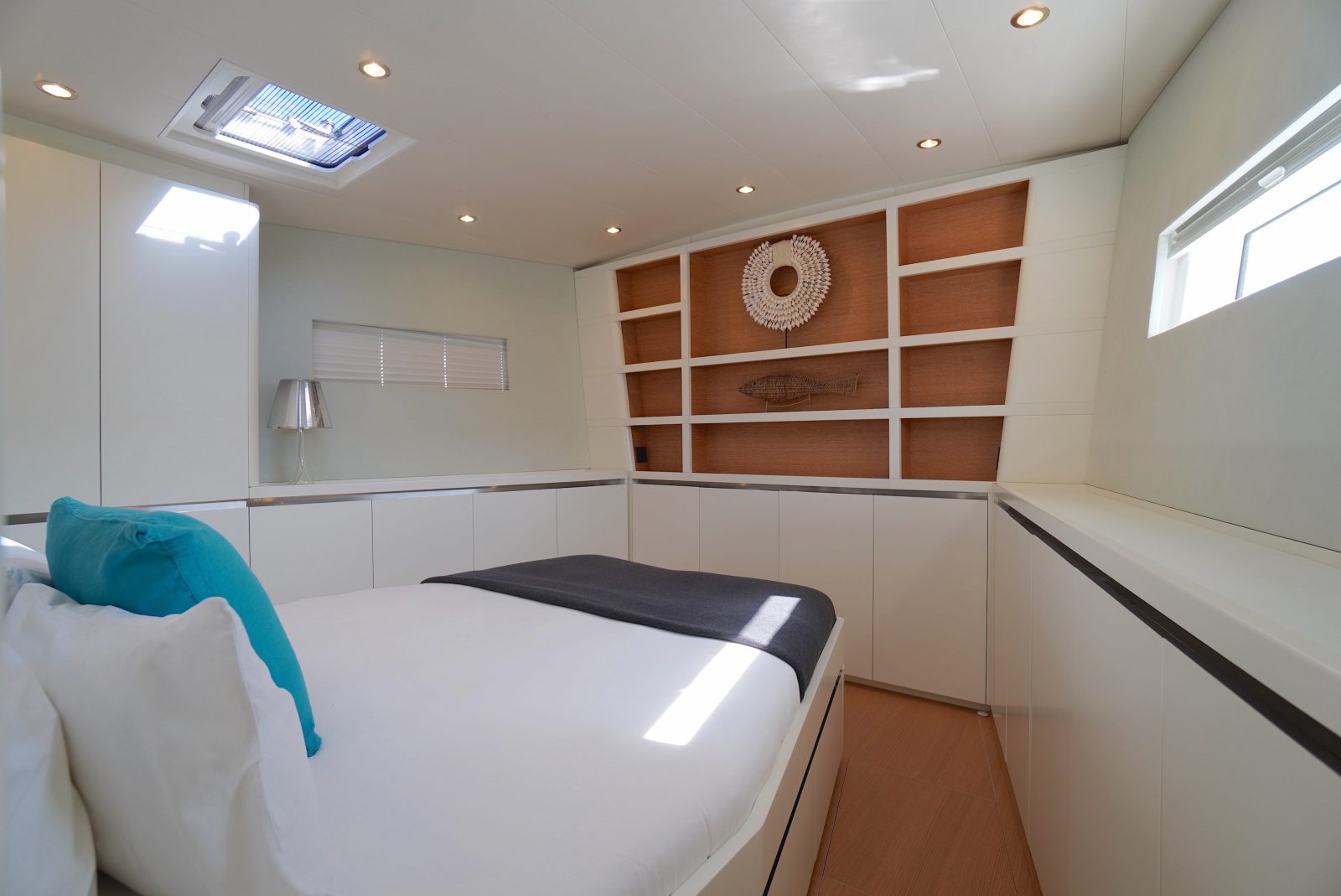

OWNER’S CABIN – FORWARD

• The owner’s cabin is located forward and occupies the entire width of the hull.
• Ventilation and light are provided by 3 fixed portholes in the hull and three opening deck hatches.
• General lighting and reading lights on the headboard.
• Double bed 2.05m x 1.60m.
• Storage lockers and drawers beneath the bed.
• Bookcase and cupboards on the forward bulkhead.
• 1 x Hanging locker to starboard.
• 1 x Cabinet to port.
• Low cupboards to port and starboard.
• A small office area to starboard.
• 230v sockets.

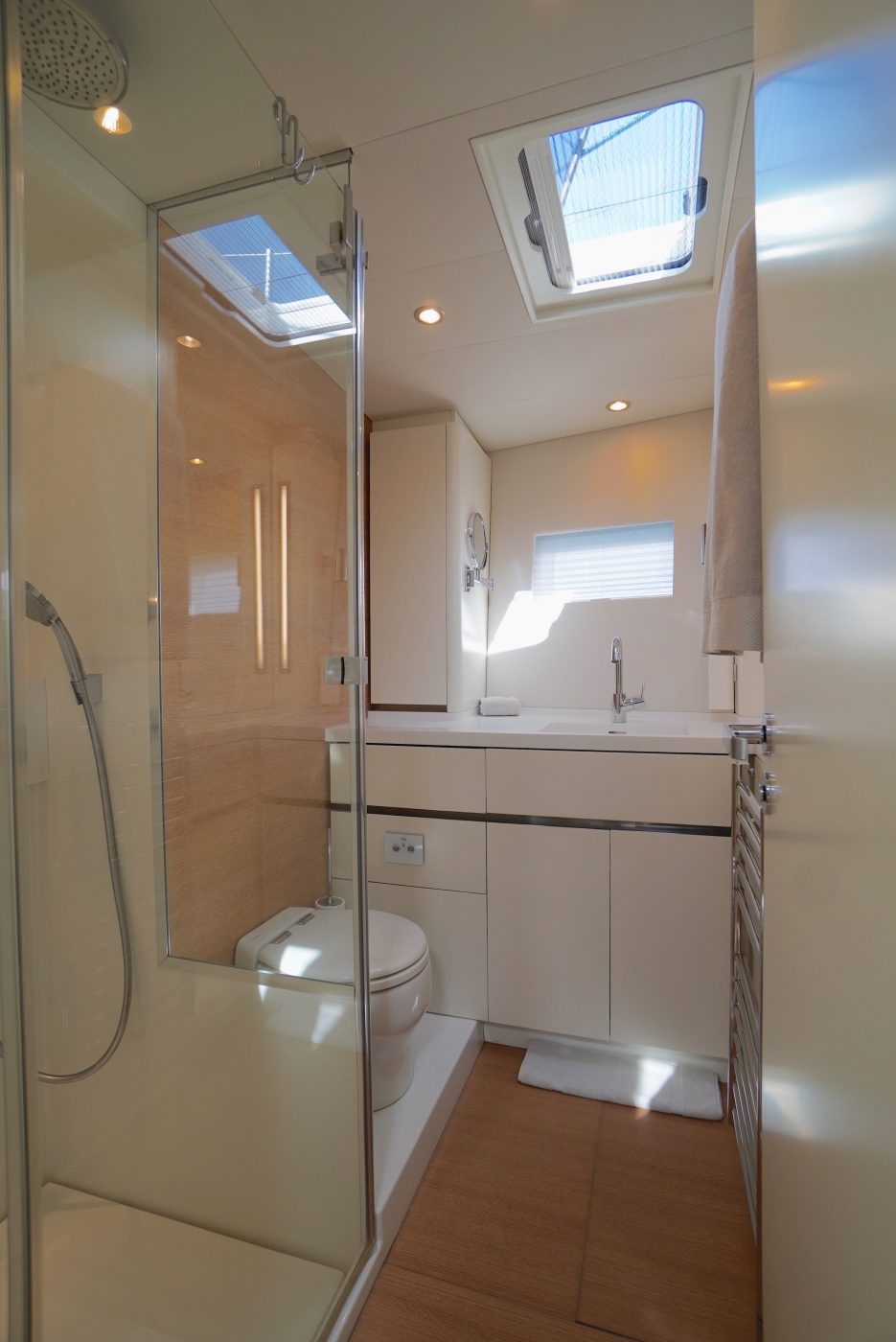

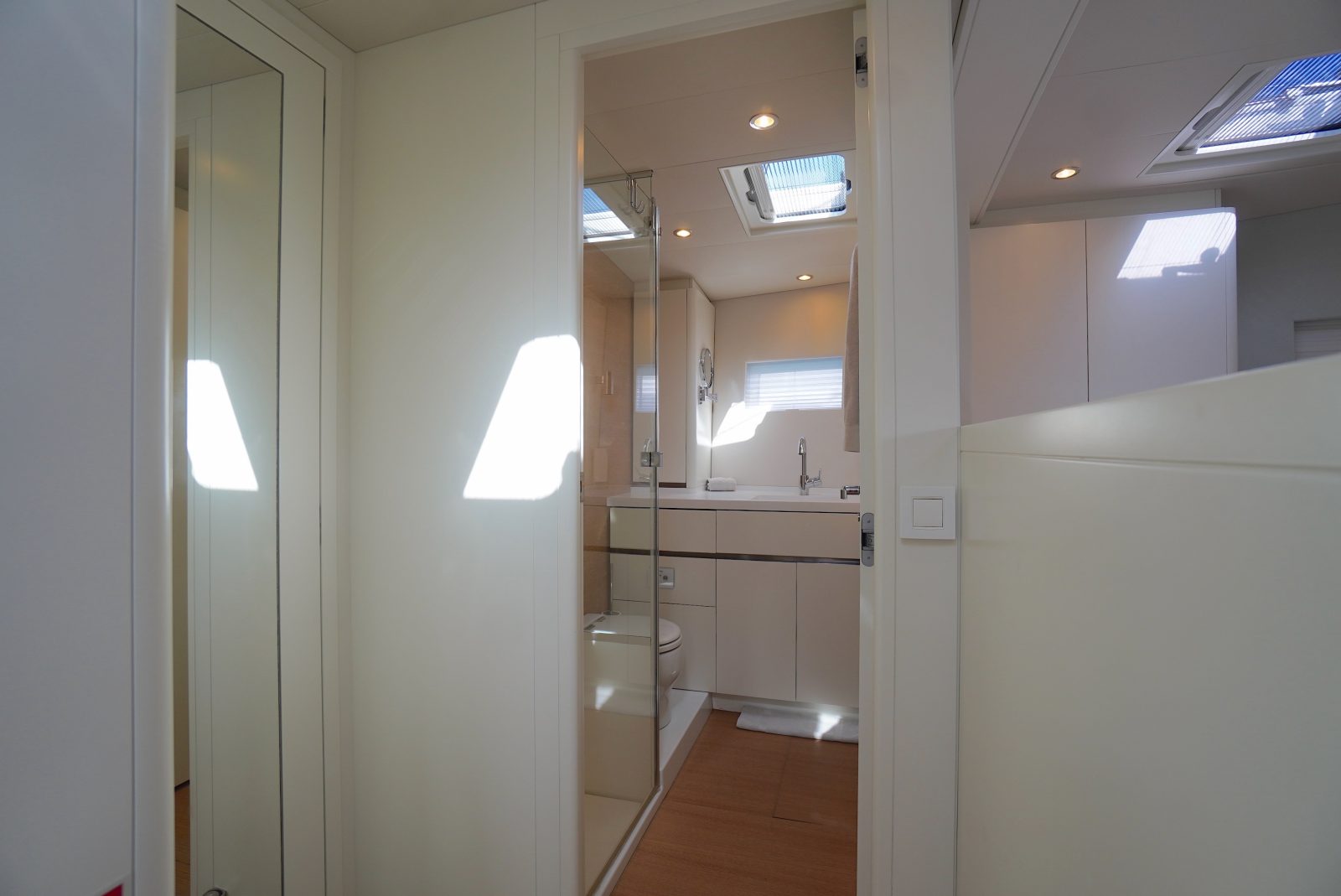

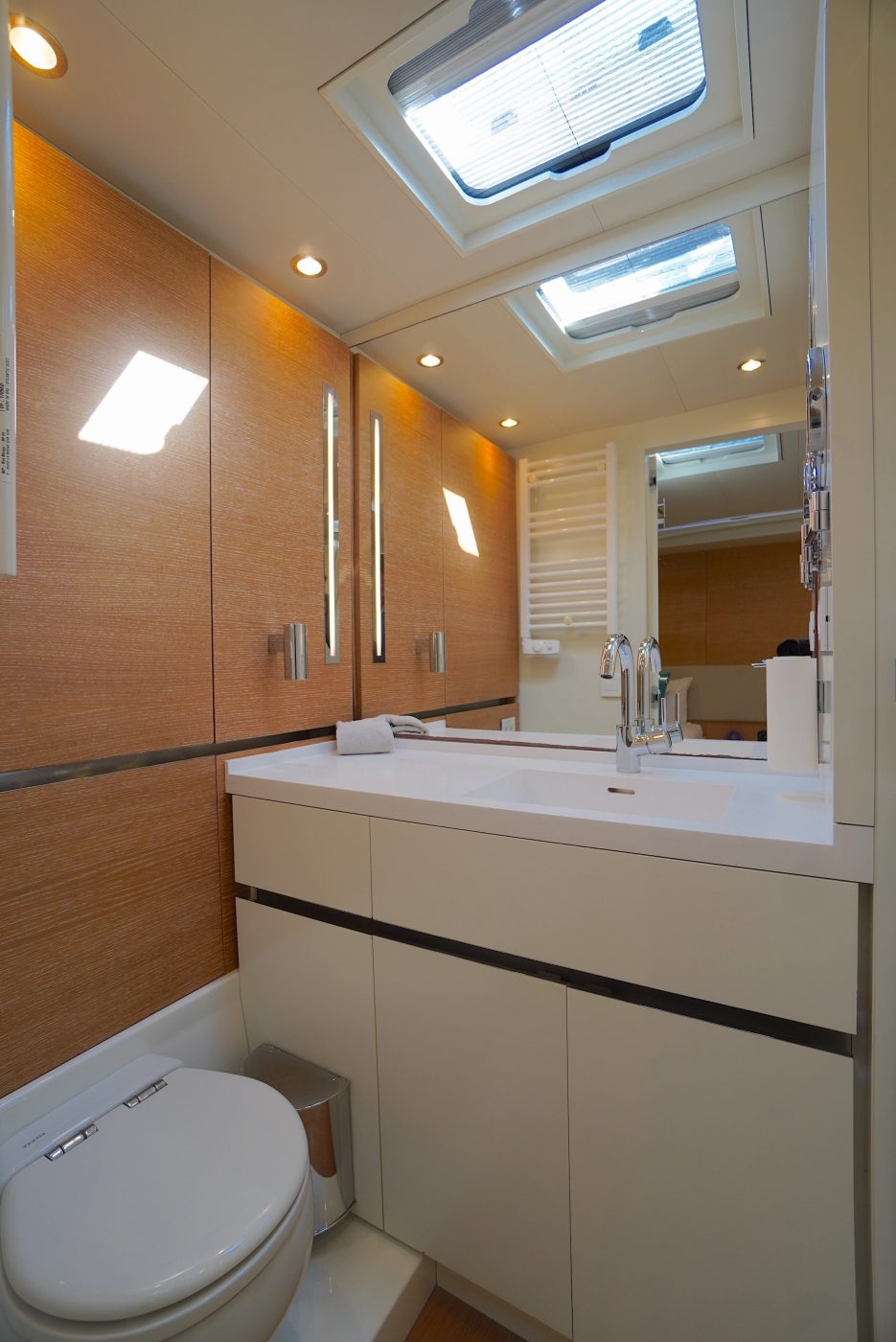

The owner’s cabin has a fully private bathroom:

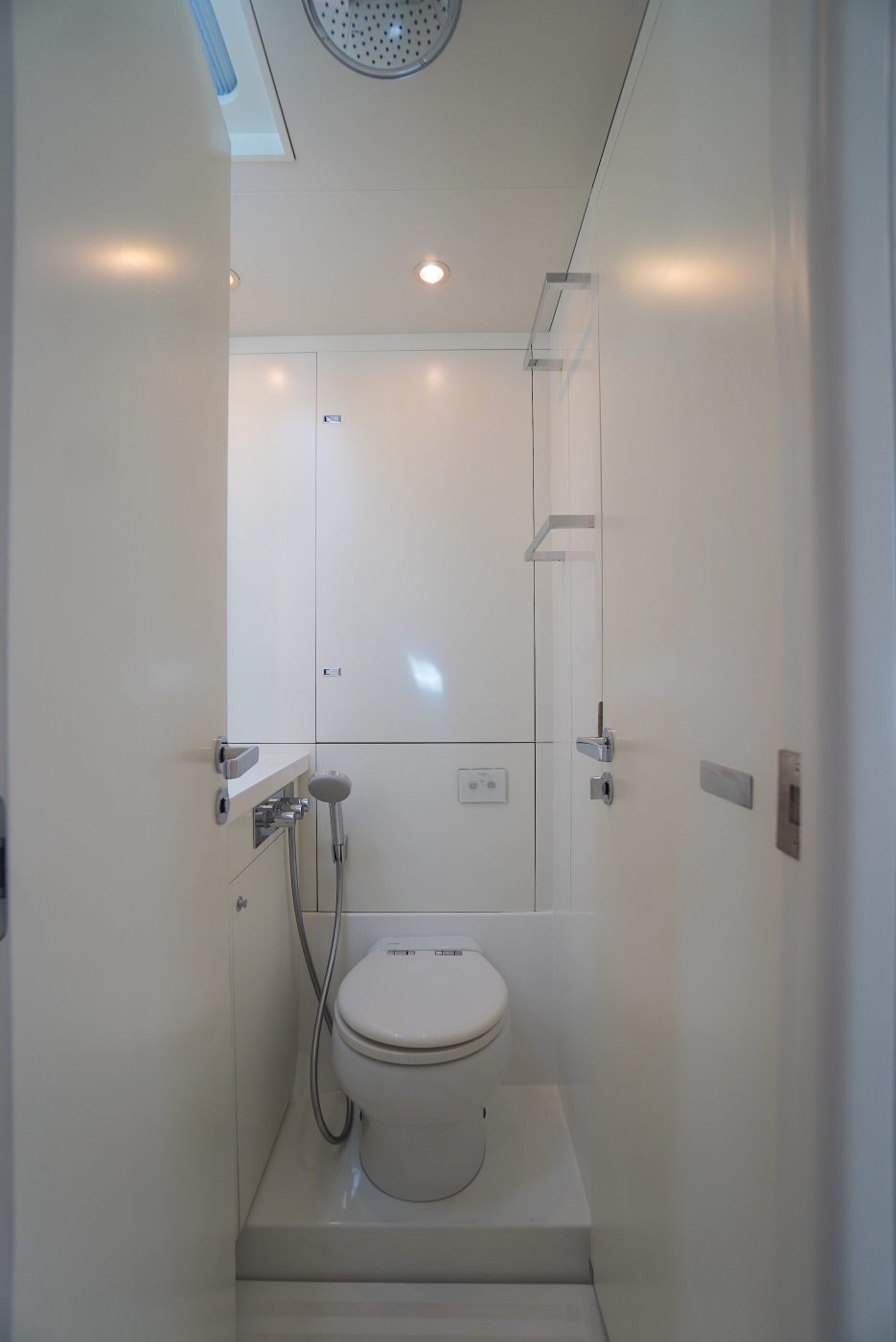

• VACUFLUSH electric freshwater marine toilet with black water holding tank.

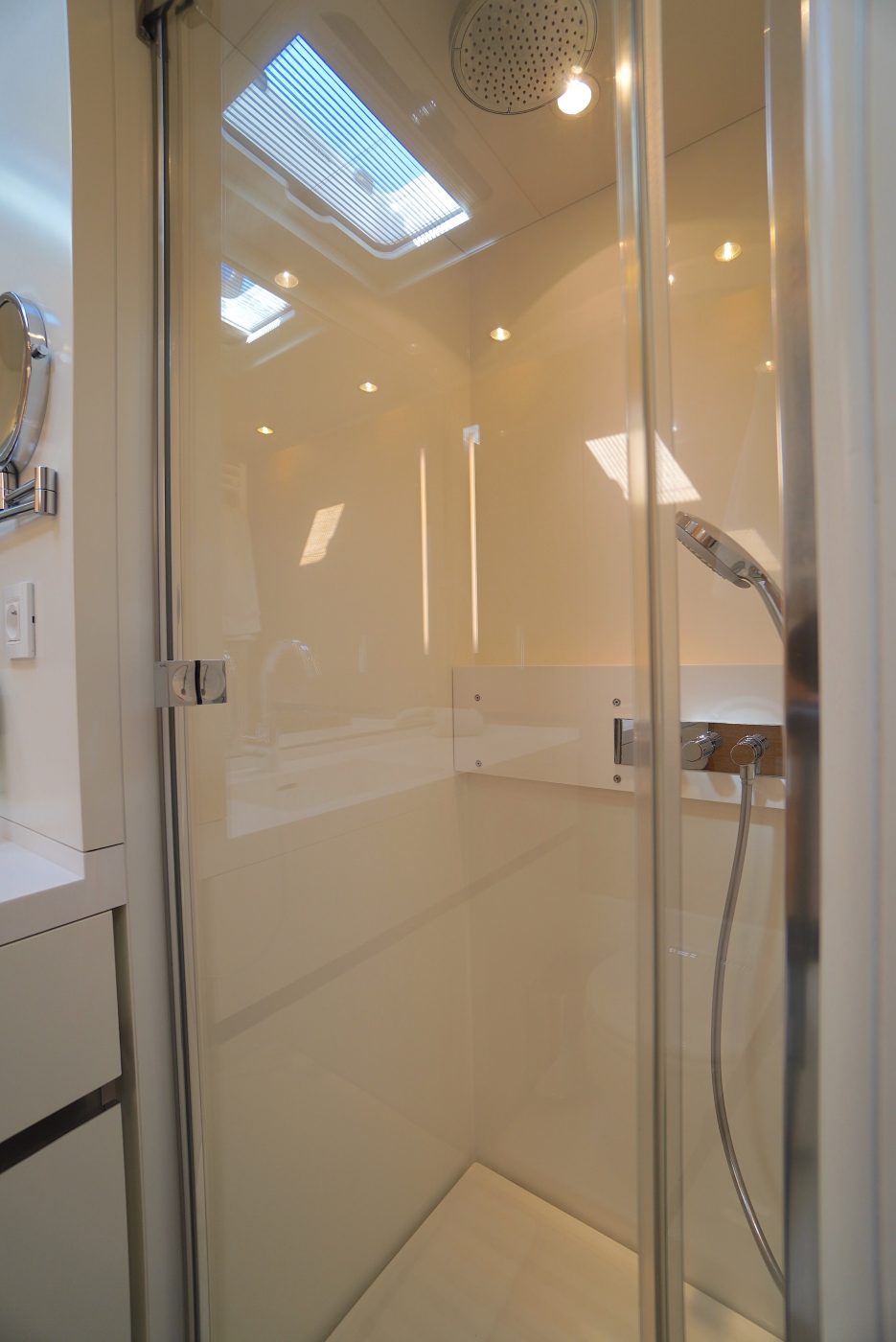

• Separate shower cabin with grating floor.
• Shower and washbasin automatic pump-out to grey water manifold.
• Washbasin with Corian worktop and hot/cold water tap.
• Electrically heated towel rail.
• Bathroom cabinet with electric shaver socket.
• Fixed porthole in the hull and an opening deck hatch for lighting and ventilation.
• Lighting by deck-hatch light and secondary lighting in front of the mirror.

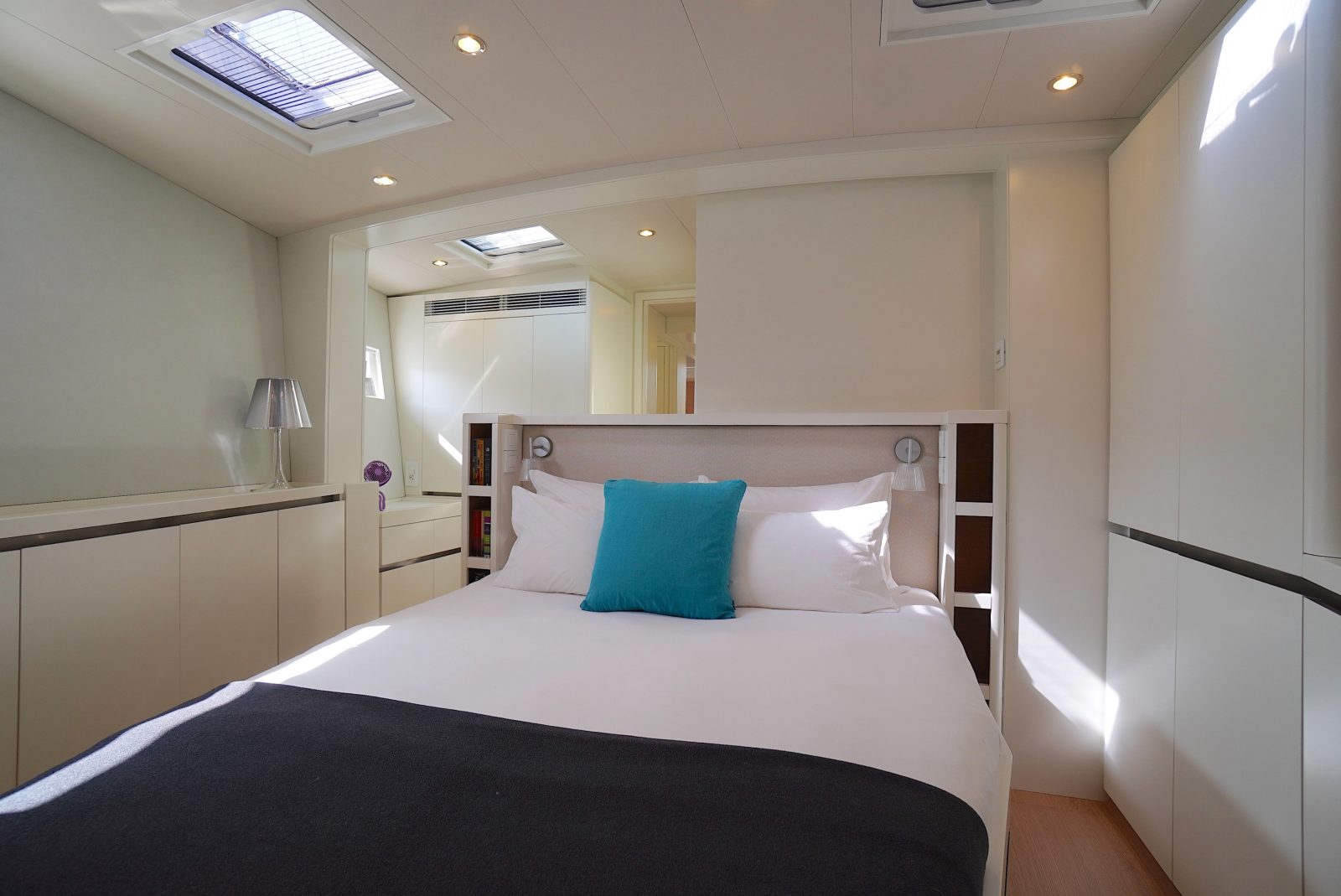

FORWARD GUEST CABIN – PORT

• Double bed against side of cabin to port – 2.05m x 1.60m – with system for separation into two single beds.
• Storage lockers and drawers beneath the bed.
• Ventilation and light are provided by a fixed porthole in the hull and an opening deck hatch.
• General lighting and reading lights on the headboard.
• 1 x Hanging locker to port.
• 230 V sockets.

The port guest cabin has a fully private bathroom:

• VACUFLUSH electric freshwater marine toilet with black water holding tank.
• Separate shower cabin with grating floor.
• Shower and washbasin automatic pump-out to grey water manifold.
• Bathroom cabinet with electric shaver socket.
• Washbasin with Corian worktop and hot/cold water tap.
• 1 x Opening deck hatch for light and ventilation.
• Lighting in front of the mirror.

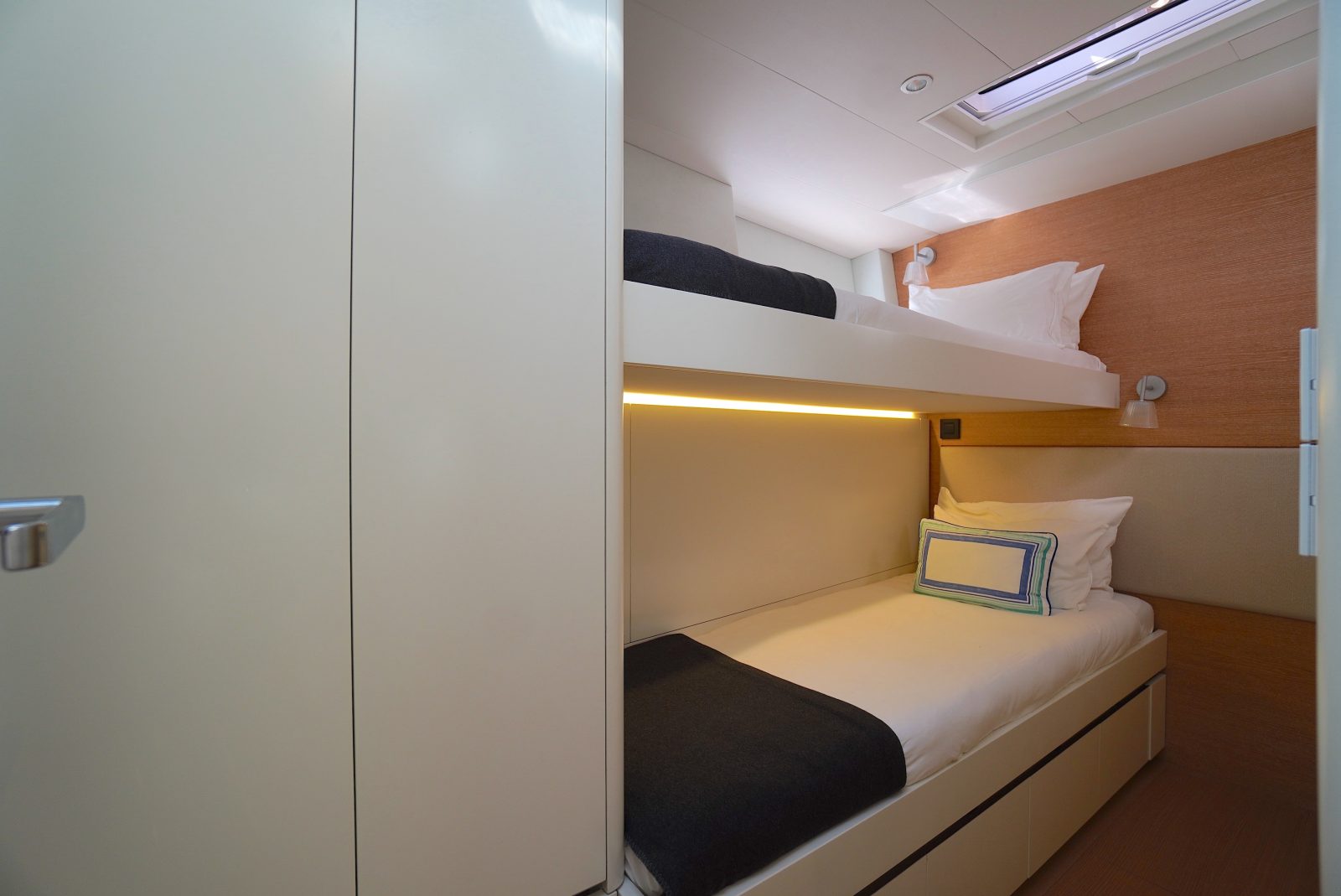

FORWARD GUEST CABIN – STARBOARD

• Two bunk beds to starboard – 2.05m length.
• The bottom bed is convertible into a double bed – 2.05m x 1.40m.
• Storage lockers and drawers beneath the bed.
• Ventilation and light by a fixed porthole in the hull and an opening deck hatch.
• General lighting and reading lights on the headboard.
• 1 x Hanging locker to starboard.
• 230v sockets.

The starboard guest cabin has a private bathroom with a second door to the passageway for daytime access to the toilet:

• Separate shower cabin with grating floor.
• Shower and washbasin automatic pump-out to grey water manifold.
• Bathroom cabinet with electric shaver socket.
• Washbasin with Corian worktop and hot/cold water tap.
• 1 x Opening deck hatch for light and ventilation.
• Lighting in front of the mirror.

AFT GUEST CABIN – PORT

• Double bed – 2.00m length.
• Fixed porthole in the hull, two opening ports and an opening hatch leading to the cockpit.
• Desk table with leather inlay.
• General lighting and reading lights on the headboard.
• Storage lockers and drawers under the bed.
• 1 x Hanging locker to port.
• 230v sockets.

The port aft guest cabin has a fully private bathroom:

• Separate shower cabin with grating floor.
• Shower and washbasin automatic pump-out to grey water manifold.
• Bathroom cabinet with electric shaver socket.
• Washbasin with Corian worktop and hot/cold water tap.
• 1 x Opening deck hatch for light and ventilation.

CREW CABIN – FOREPEAK

• Stainless steel access ladder.
• Two single bunk beds to port.
• Washbasin with hot/cold water tap.
• Access to the chain locker.

SAFETY EQUIPMENT

• 2 x Fixed FM 200 systems (1 x in engine room, 1 x in lazarette, 1 x portable C02).
• 7 x portable dry powder fire extinguishers.
• 4 x fire/heat/smoke detectors.
• 2 x 6-Person life rafts.
• 1 x EPIRB.
• 1 x SART.
• 12 x flares.
• 2 x Jon Buoy.
• Ocean safety extensive medical kits.

MAINTENANCE

• Completed in June 2023 by STP Shipyard in Palma.
• Professionally serviced.
• Main engine completed annual service by Volvo Penta (3.510 hours dated August 2023).
• Generator completed professional 8.000 hours service (7.607 hours dated 2023).
• Bow thruster fully serviced.
• Stern thruster fully serviced.
• Watermaker fully serviced.
• Air-conditioning fully serviced.
• Sails fully serviced by North Sails: (Main, genoa, staysail, code 0).
• Running rigging serviced (main, genoa, staysail sheets recovered: new reef lines; all lines cleaned.
• Williams tender fully serviced.
• New antifouling.
• New anodes.
• Rudder bearings replaced – Pulled shaft – Shaft seals replaced.
• 6 x Hatch frames re-painted/re-screwed.
• Boom paint touch-ups.
• Deck touch-ups and maintenance.
• New covers for mast instrument displays.
• Jon Buoy and inside table.
• RAYMARINE Backbone cables replaced.
• Two breakers installed in forepeak for hydraulic system.
• New bilge pump forepeak.
• Battery terminals inspected, cleaned and greased.
• Interior cushions cleaned professionally.

EXCLUSIONS

• List of exclusions provided upon request.

__________________________________________

The particulars detailed herein are intended to give a fair description of the vessel but their accuracy cannot be guaranteed. These particulars are not part of any contract or offer and are supplied on the understanding that all negotiations shall be through PJ-Yachting who is acting as broker only.

The prospective purchaser is recommended to check the particulars and, where appropriate (and at his own expense) to employ a qualified surveyor/engineer to carry out structural and/or mechanical and electrical surveys.
